Glove Box Light Test/Replacement
Glove Box Light Test/Replacement 1.
Remove the glove box stops and damper
Glove Box Removal / Installation.
2.

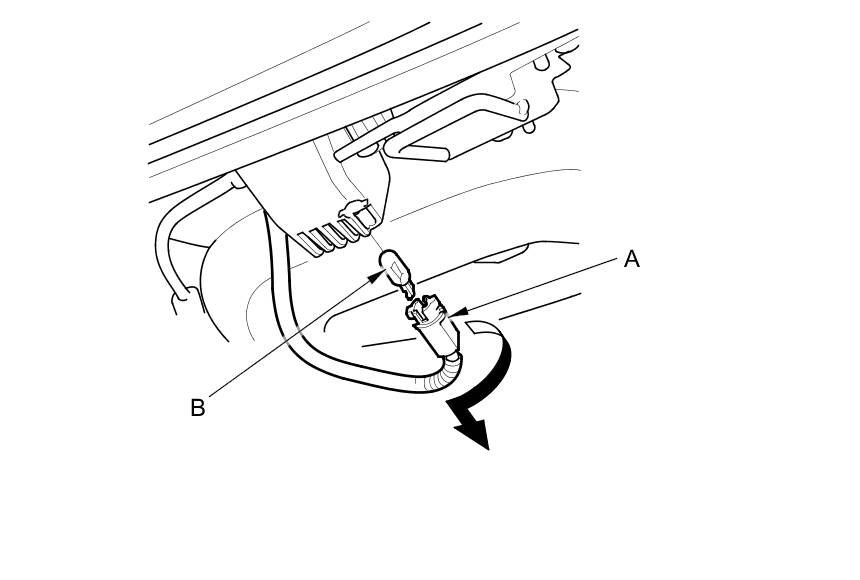

Twist the bulb socket (A) 45 ° counterclockwise to remove it.
3.
Remove the bulb (B) from the socket.
4.
Install the glove box light in the reverse order of removal.
