Hood Sensor/Switch (For Alarm): Testing and Inspection
Security Hood Switch Test 1.
Remove the hood latch cover.
2.

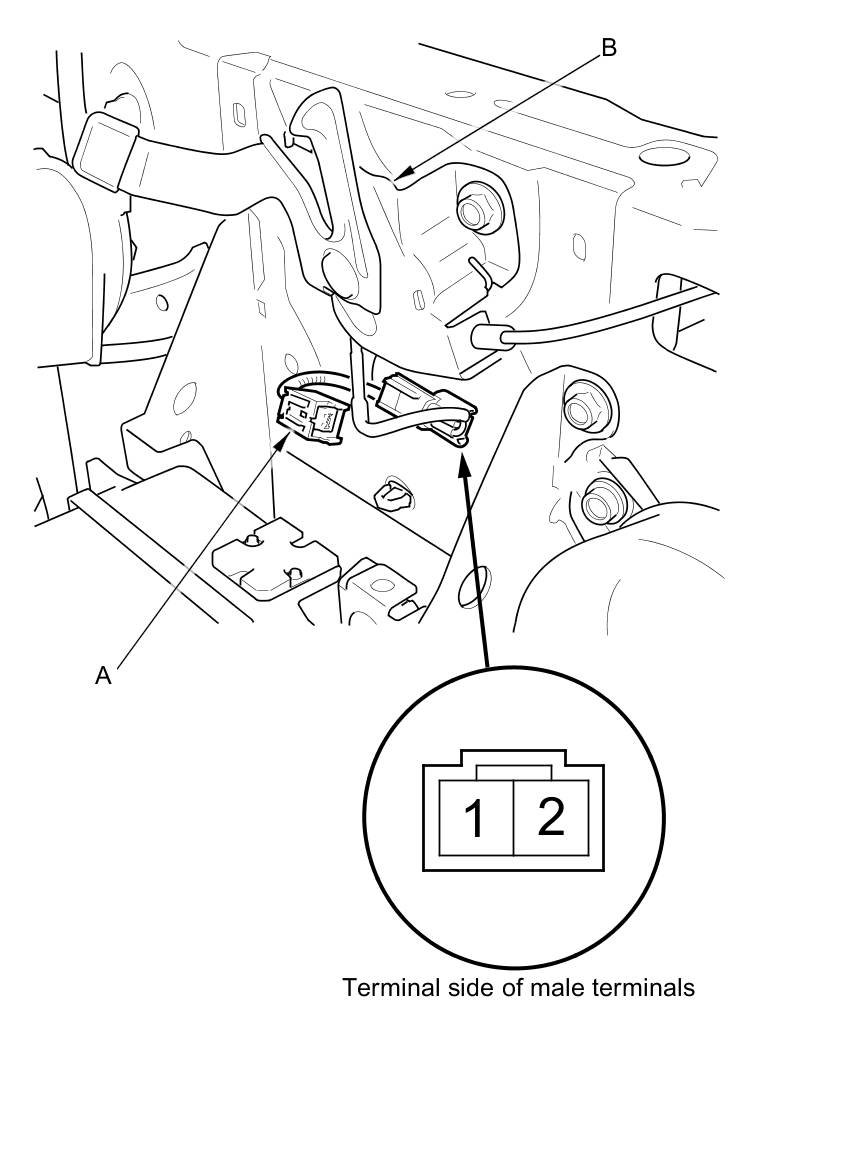

Disconnect the 2P connector (A) from the hood switch (B).
3.

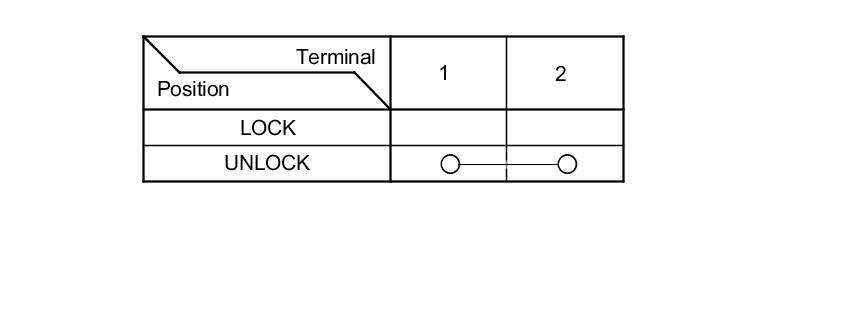

Check for continuity between the terminals in each switch position according to the table.
4.
If the continuity is not as specified, the security hood switch is faulty; replace the hood latch
Service and Repair.
