Rear Vision Camera: Service and Repair
Rearview Camera Removal/Installation 1.
Remove the trunk lid trim
Interior Trim Removal / Installation - Trunk Lid.
2.

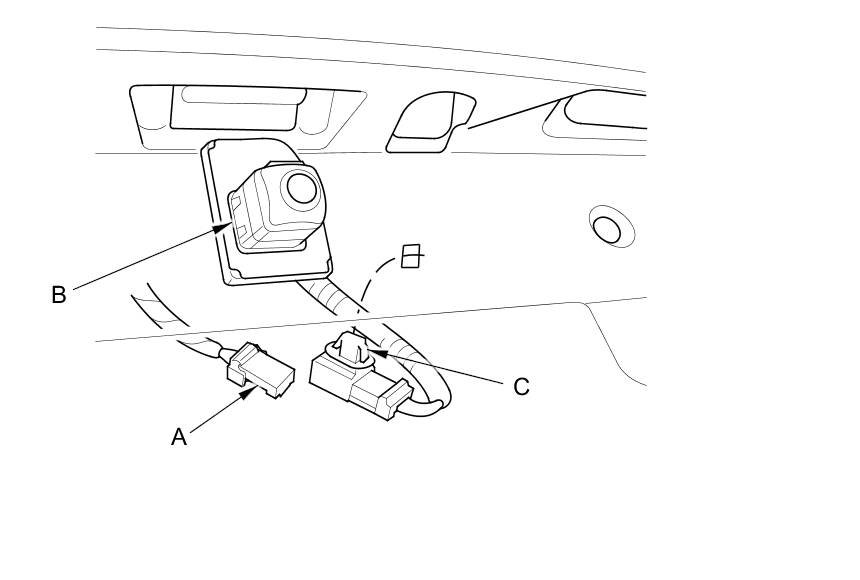

Disconnect the 6P connector (A) from the rearview
camera (B).
3.
Remove the clip (C).
4.
Pull out the rearview
camera assembly.
5.
Install the rearview
camera in the reverse order of removal.
