USB Adapter Control Unit Replacement
USB Adapter Control Unit Replacement 1.
Remove the glove box
Glove Box Removal / Installation.
2.

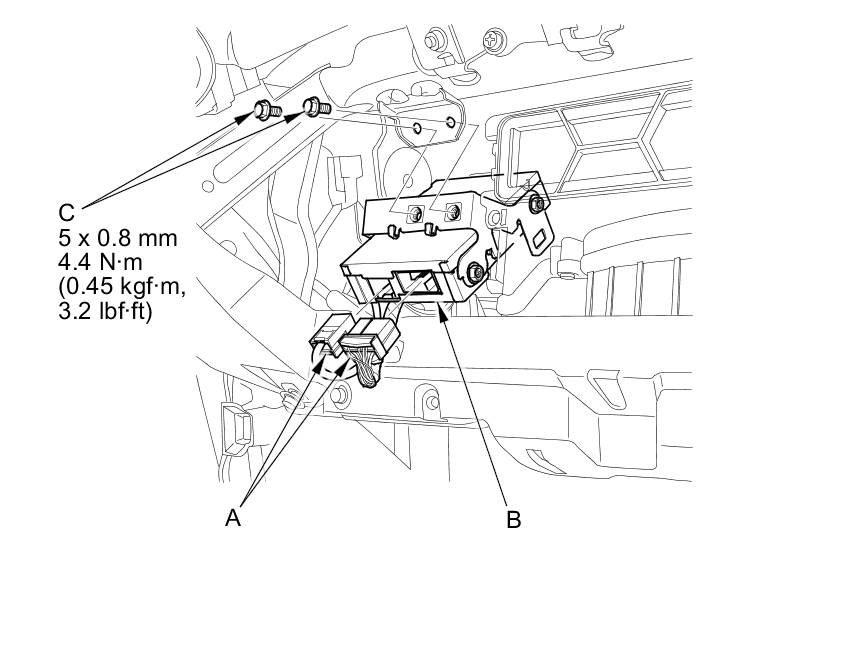

Disconnect the connectors (A) from the USB adapter control unit (B).
3.
Remove the mounting bolts (C) and the USB adapter control unit.
4.
Install the USB adapter control unit in the reverse order of removal.
