Front Bumper Lower Stay Replacement




Front Bumper Lower Stay Replacement

NOTE:

- Take care not to scratch the front bumper.
- Put on gloves to protect your hands.

1. Remove the front bumper Front Bumper Removal / Installation.

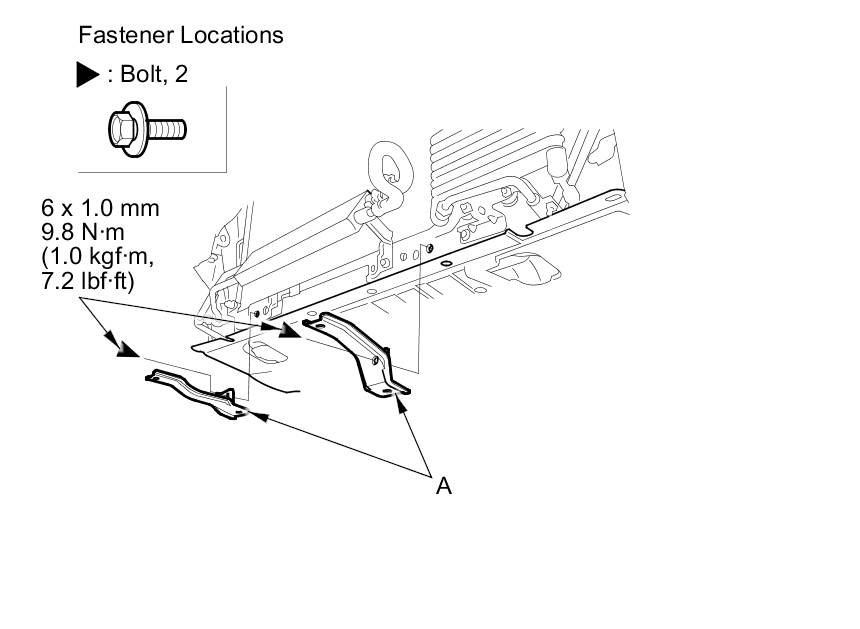

2. Remove the bolts, then remove the front bumper lower stay (A).





3. Install the lower stay in the reverse order of removal.
