License Plate Frame: Service and Repair

Rear License Trim Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the trunk rid or the related parts.

1. Remove the trunk lid trim Interior Trim Removal / Installation - Trunk Lid.

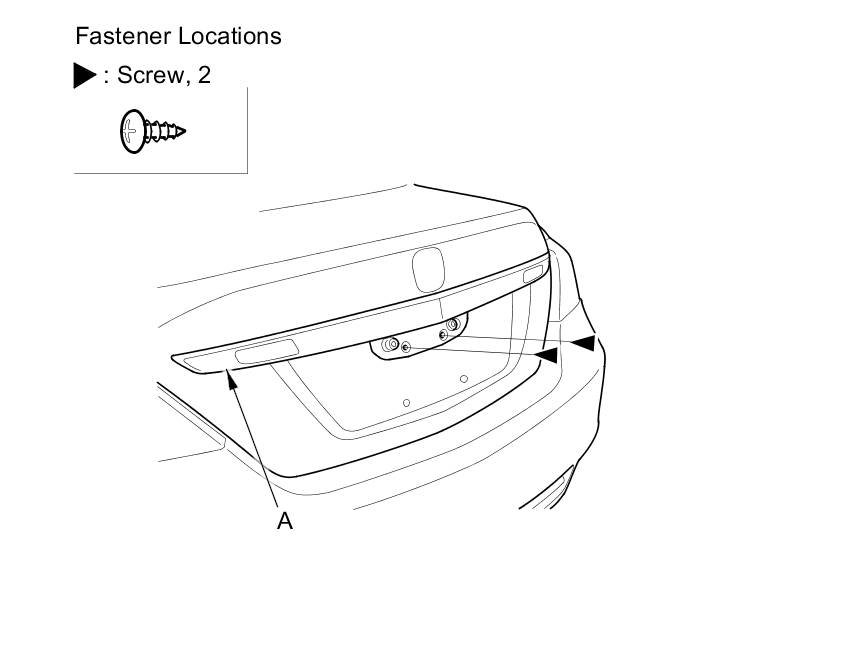

2. Remove the screws from the rear license trim (A).

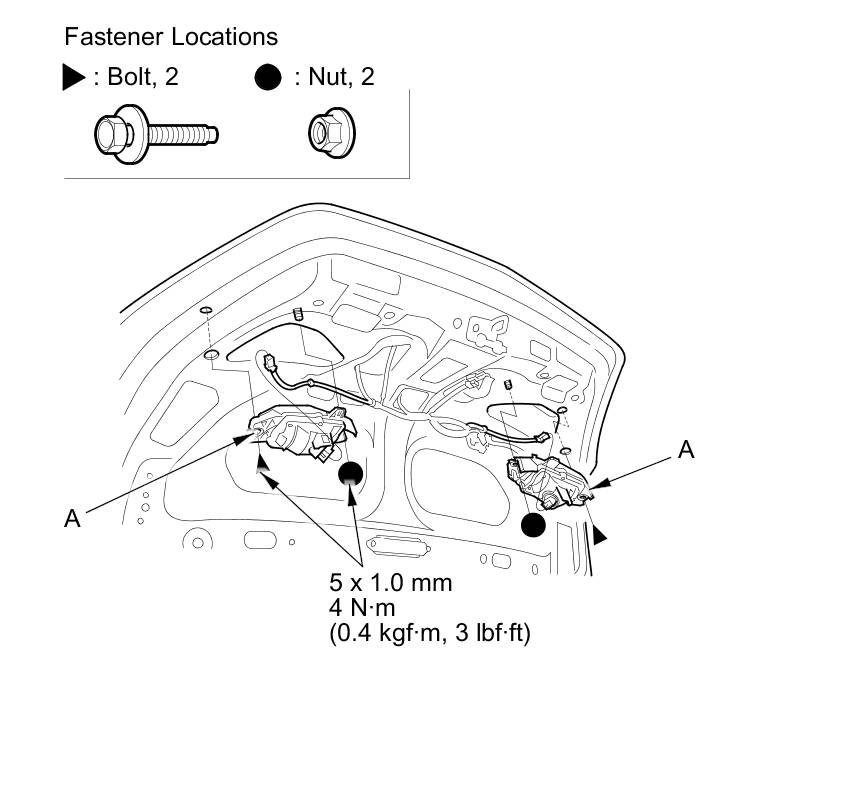

3. From inside the trunk lid, remove the bolts and the nuts securing the rear license trim and both back-up lights (A).





4. Remove the back-up lights from both sides.

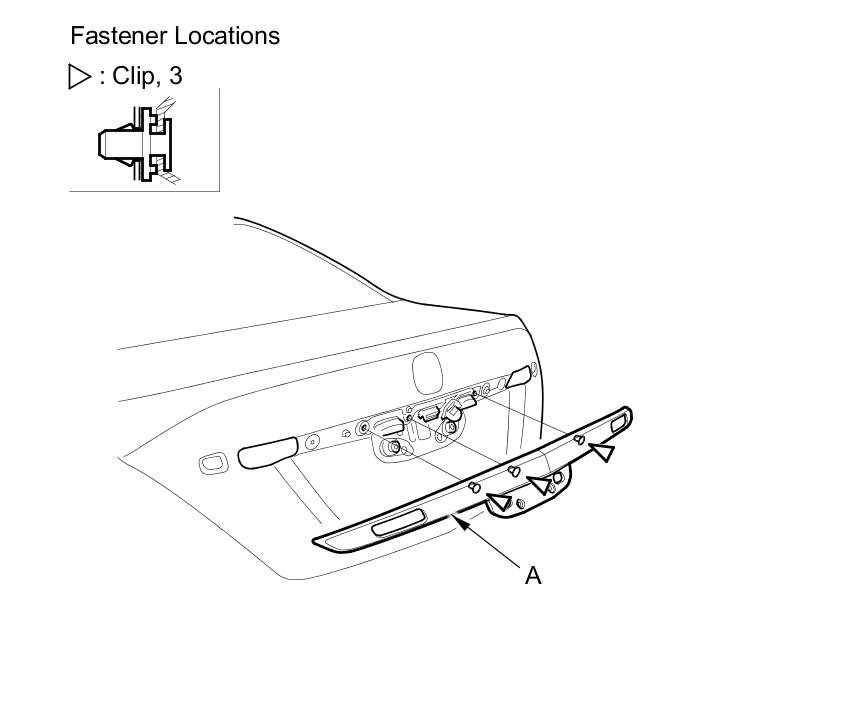

5. Gently close the trunk lid, and pull out the rear license trim (A) to detach the clip, then remove the trim.





6. Install the trim in the reverse order of removal, and note these items:

- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips into place securely.
