Keyless Access LF Antenna (Rear Shelf) Replacement
Keyless Access LF Antenna (Rear Shelf) Replacement 1.
Remove the rear shelf
Service and Repair.
2.
Remove the rear shelf under cover
Service and Repair.
3.

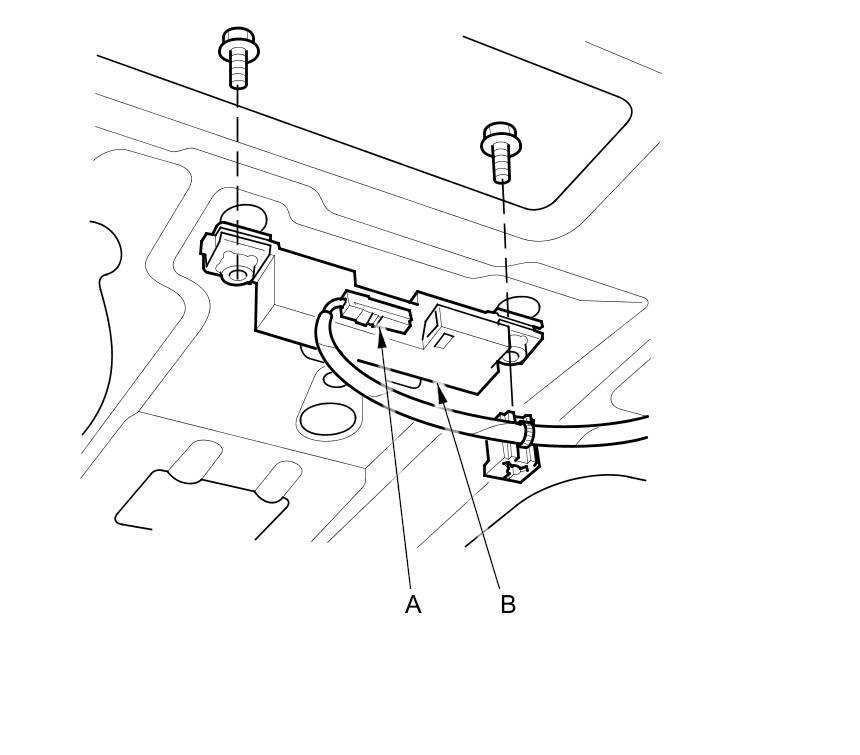

Disconnect the 2P connector (A) from the rear shelf LF antenna (B).
4.
Remove the two bolts and the rear shelf LF antenna.
5.
Install the antenna in the reverse order of removal.
