Power Mirror Actuator Replacement

Power Mirror Actuator Replacement

1. Remove the mirror holder Mirror Holder Replacement.

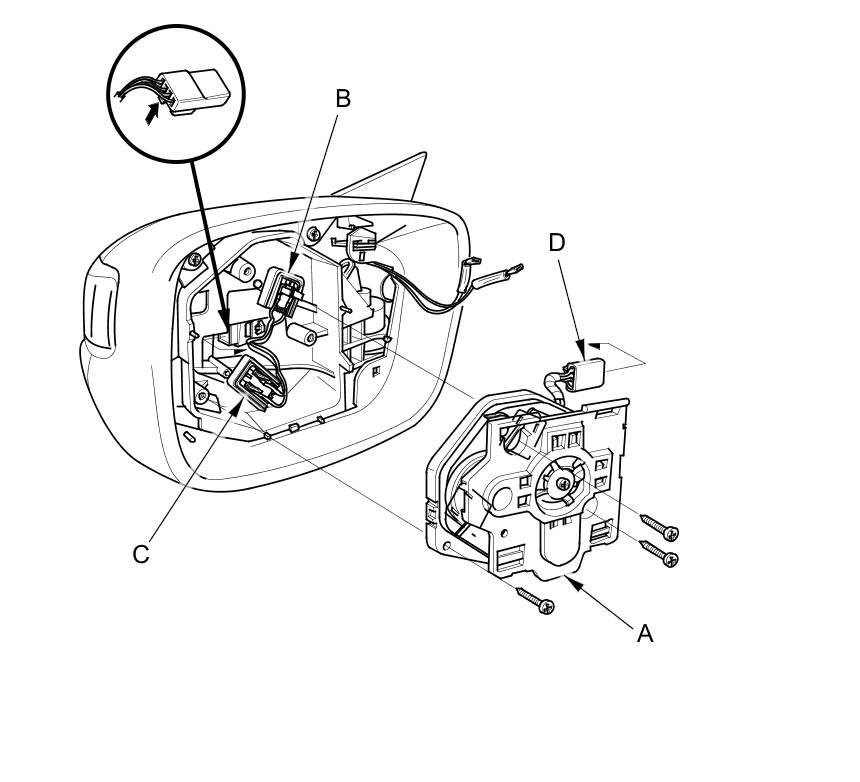

2. Remove the three mounting screws from the power mirror actuator (A), then pull the actuator out slightly.

3. Disconnect the gray connector (B) and the black connector (C) from the actuator, then disconnect the position sensor 4P connector (D).

4. Install a new actuator in the reverse order of removal.

5. Operate the power mirror to ensure smooth operation.
