Power Rear Headrest Switch Test
Power Rear Headrest Switch Test 1.
Remove the roof console
Roof Console Replacement.
2.

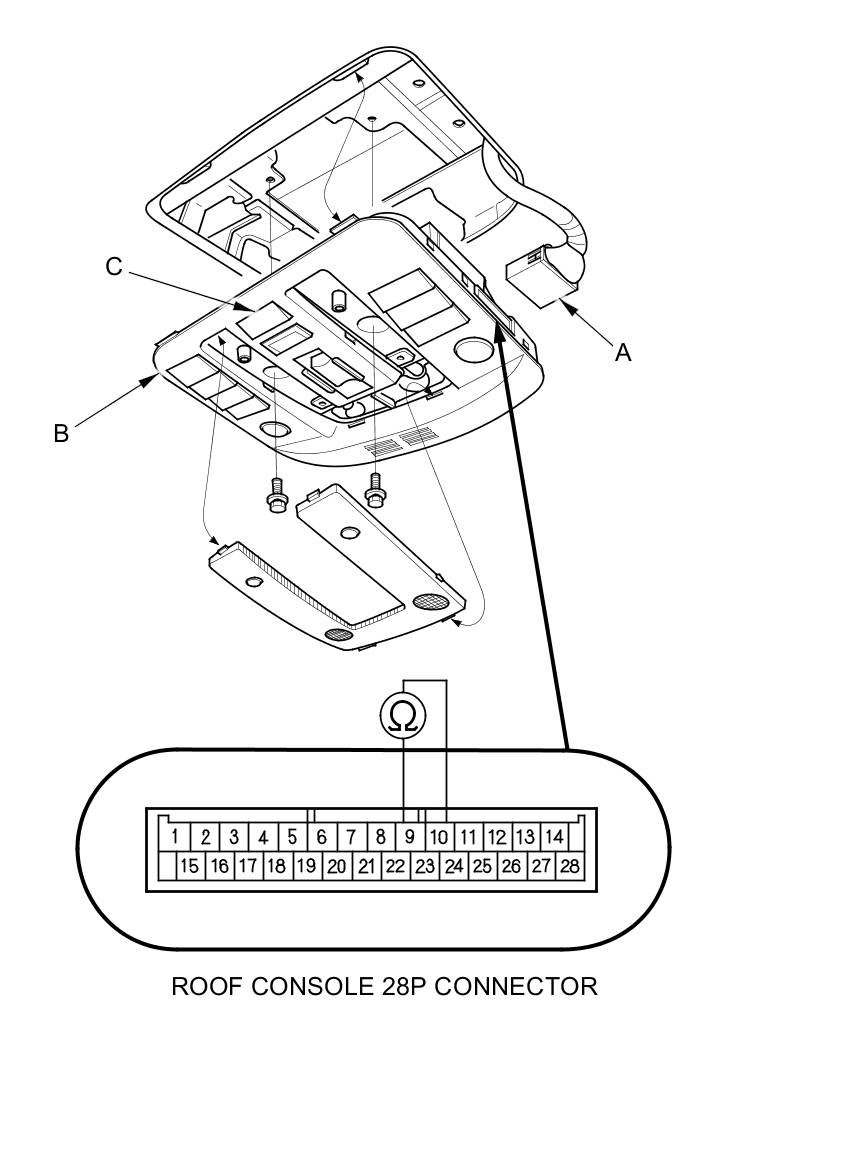

Disconnect the 28P connector (A) from the roof console (B).
3.

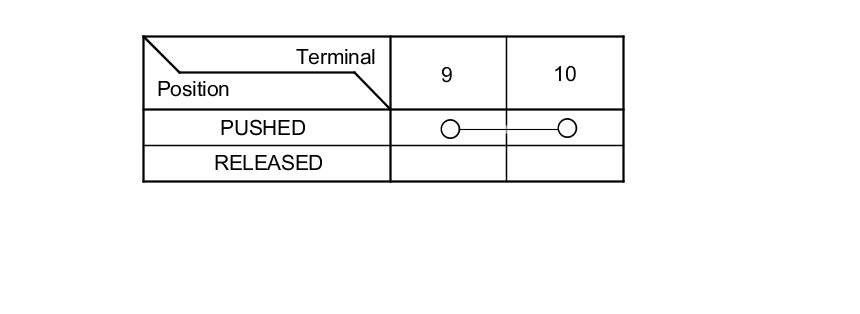

Check for continuity between the terminals in each headrest switch (C) position according to the table.
4.
If the continuity is not as specified, replace the roof console
Roof Console Replacement.
