Front Door Window Glass Weatherstrip: Service and Repair

Front Door Glass Outer Weatherstrip Replacement

NOTE:

- Put on gloves to protect your hands.
- If you remove the door glass outer weatherstrip, replace it with a new one because it will bend during removal.
- Take care not to scratch the door or the related parts.

1. Remove these items:

- Door glass inner weatherstrip
- Power mirror Power Mirror Replacement

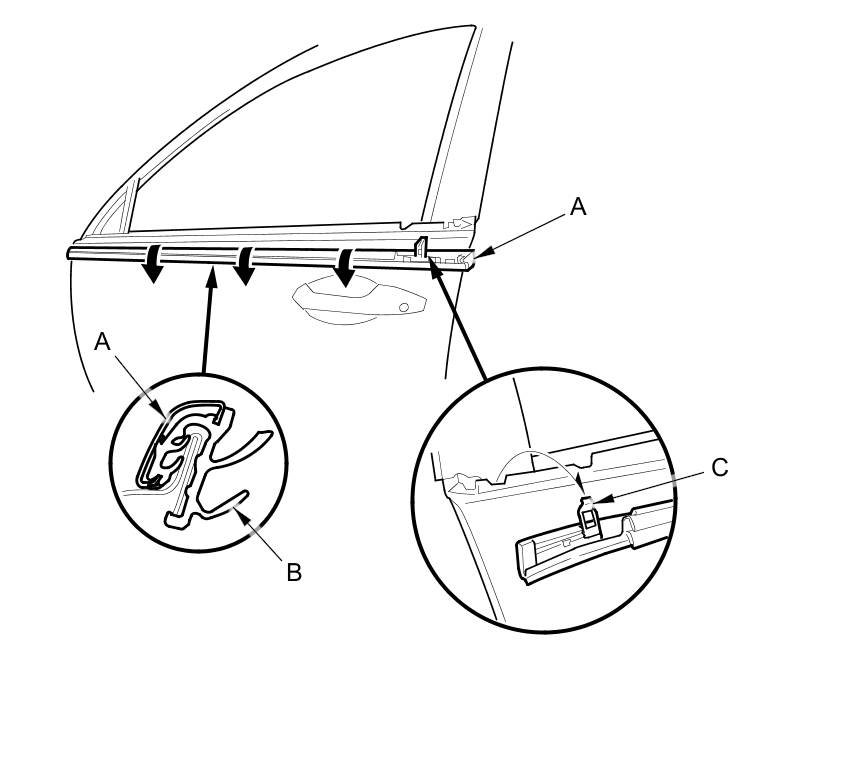

2. Starting at the front, pull up the door glass outer weatherstrip (A) at each portion where the inner molding (B) catches the inside edge of the window slot, and detach the rear clip (C), then remove the weatherstrip.





3. Install a new weatherstrip in the reverse order of removal, and push it into place securely.
