Rear Door Window Glass Weatherstrip: Service and Repair

Rear Door Glass Outer Weatherstrip Replacement

NOTE:

- If you remove the door glass outer weatherstrip, replace it with a new one because it will bend during removal.
- Put on gloves to protect your hands.
- Take care not to scratch the door or the related parts.

1. Lower the glass fully.

2. Remove these items:

- Door panel Rear Door Panel Removal / Installation
- Door glass inner weatherstrip
- Door sash outer trim

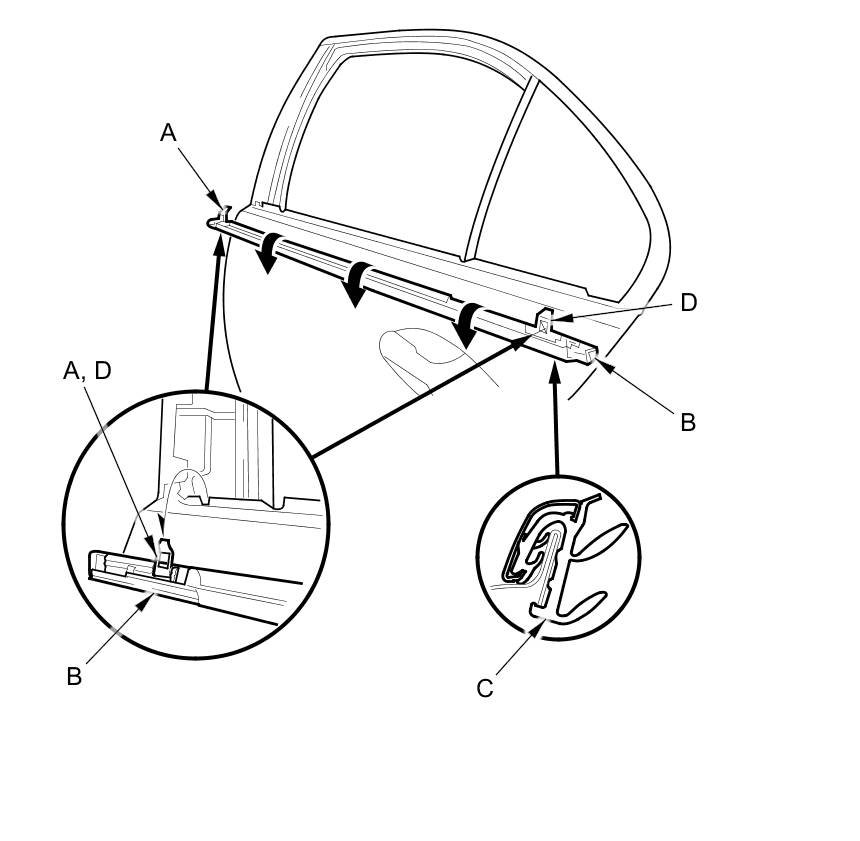

3. Starting at the front, detach the front clip (A), and pull up the door glass outer weatherstrip (B) at each portion where the inner molding (C) catches the inside edge of the window slot, and detach the rear clip (D), then remove the weatherstrip.





4. Install a new weatherstrip in the reverse order of removal, and push the weatherstrip into place securely.
