Dashboard Center Vent Removal/Installation
Dashboard Center Vent Removal/InstallationNOTE: Take care not to scratch the vent panel or the related parts.
1.
Remove the passenger's vent panel
Passenger's Vent Panel Removal/Installation.
2.

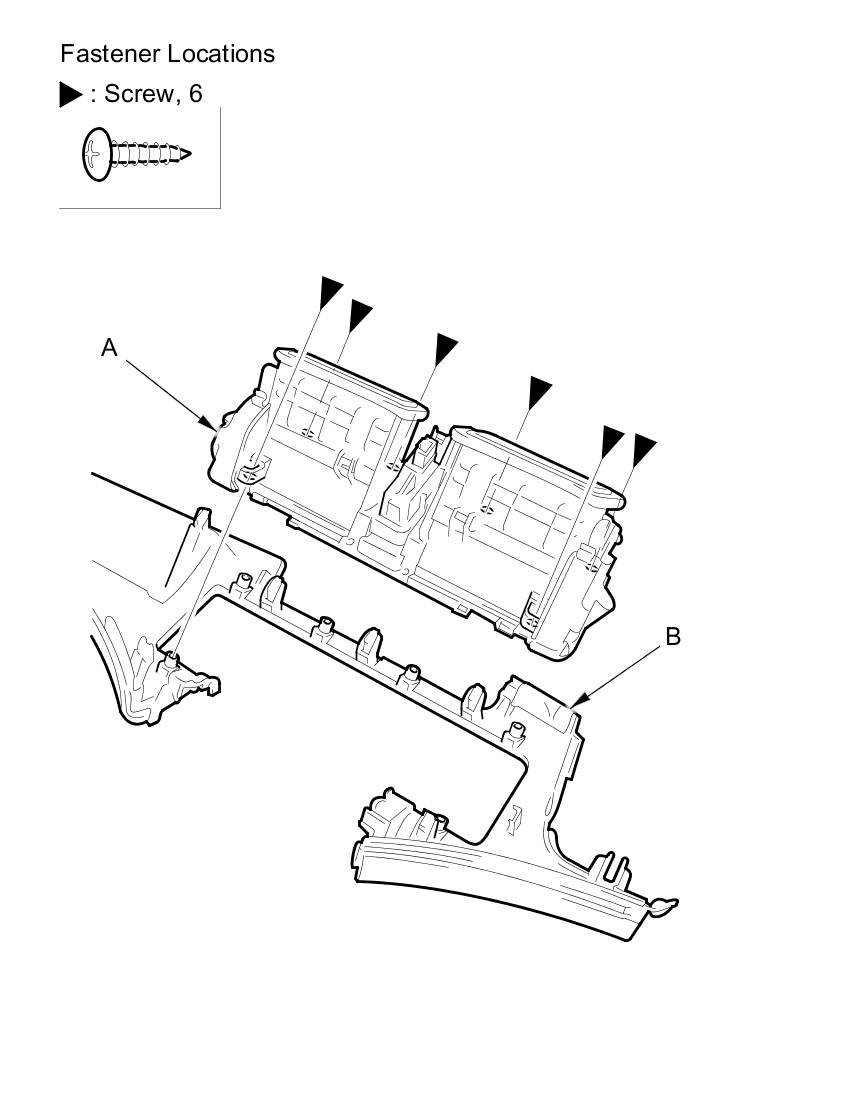

Remove the screws, then remove the center vent (A) from the vent panel (B).
3.
Install the center vent in the reverse order of removal.
