Dashboard Side Vent Removal/Installation




Dashboard Side Vent Removal/Installation

NOTE:

- Take care not to scratch the vent panel or the related parts.
- The driver's side is shown; the passenger's side is similar.

1. Remove these items:

- Driver's side: Driver's vent panel Driver's Vent Panel Removal/Installation
- Passenger's side: Passenger's vent panel Passenger's Vent Panel Removal/Installation

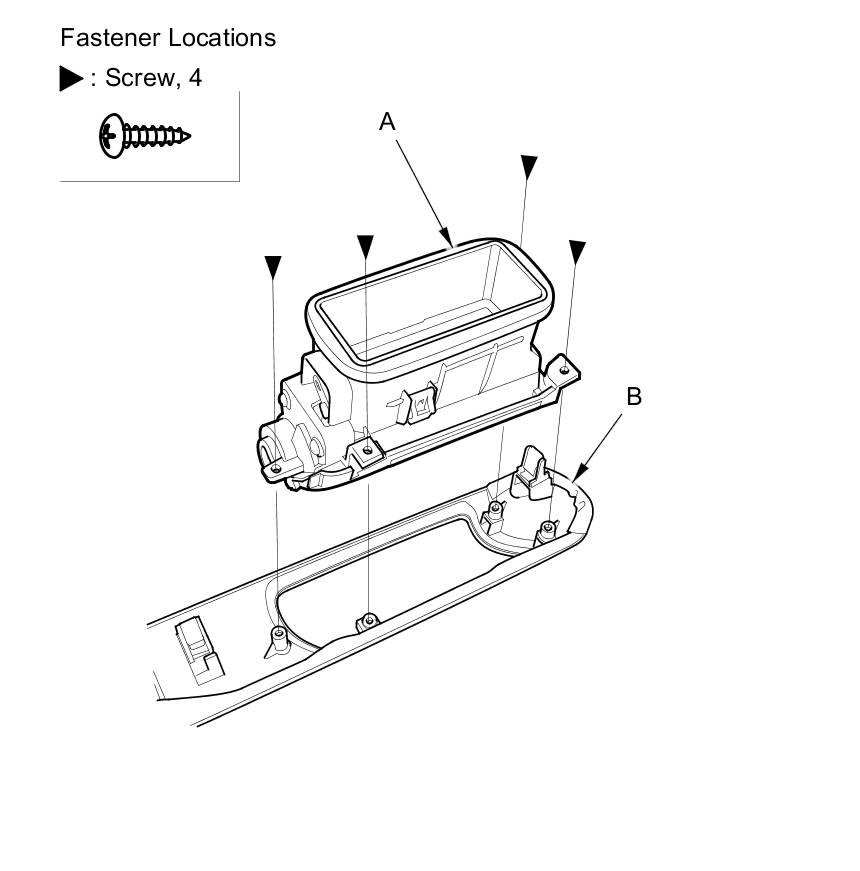

2. Remove the screws, then remove the side vent (A) from the vent panel (B).





3. Install the side vent in the reverse order of removal.
