Passenger's Vent Air Temperature Sensor Replacement
Passenger's Vent Air Temperature Sensor Replacement 1.
Remove the glove box
Glove Box Removal / Installation.
2.

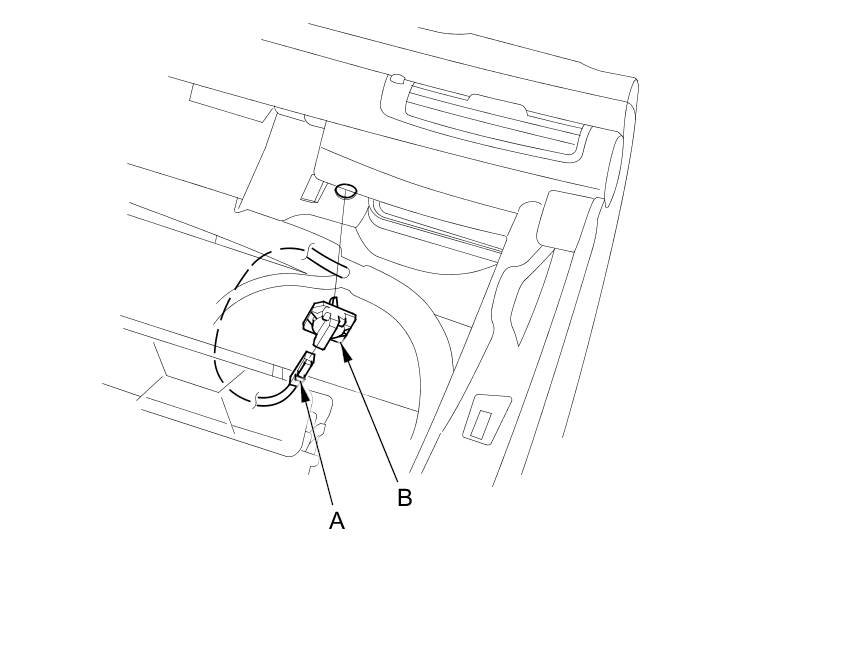

Disconnect the connector (A) from the passenger's vent air temperature sensor. Remove the passenger's vent air temperature sensor (B).
3.
Install the sensor in the reverse order of removal.
