Backup Lamp: Service and Repair

Back-Up Light Replacement

Bulb Replacement

1. Open the trunk lid, and remove the maintenance lid.

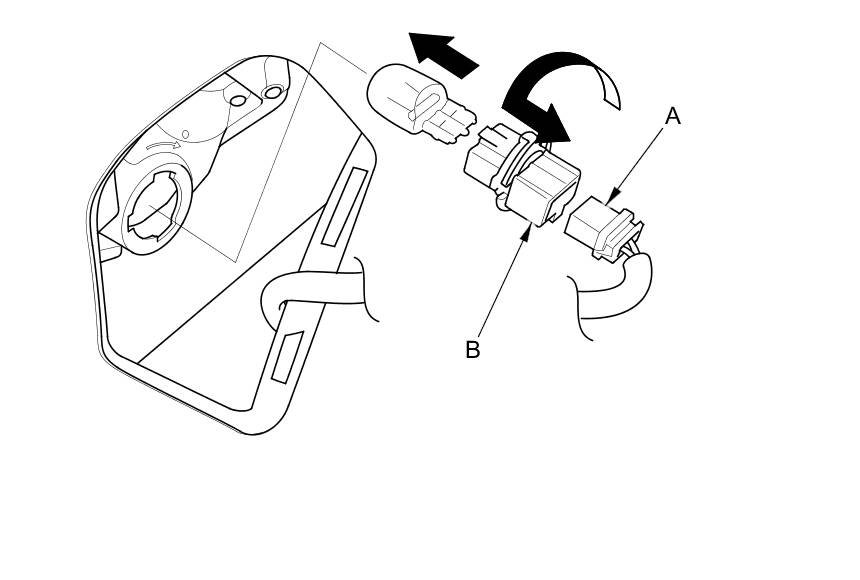

2. Disconnect the 2P connector (A) from the back-up light bulb socket (B).









3. Turn the bulb socket 45 ° counterclockwise to remove it from the back-up light housing.

4. Install a new bulb in the reverse order of removal.

Replacement

1. Open the trunk lid, and remove the trunk lid trim Interior Trim Removal / Installation - Trunk Lid.

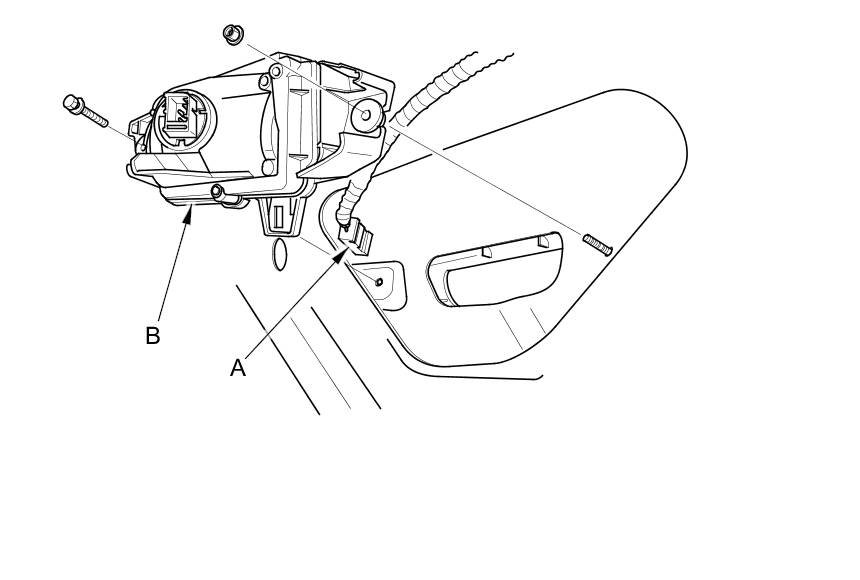

2. Disconnect the 2P connector (A).





3. Remove the bolt and nut, then remove the back-up light (B).

4. Install the parts in the reverse order of removal.
