Suspension Stroke Sensor Replacement (Adaptive Front Lighting System)




Suspension Stroke Sensor Replacement

1. Lift the vehicle, and support it with safety stands Service and Repair.

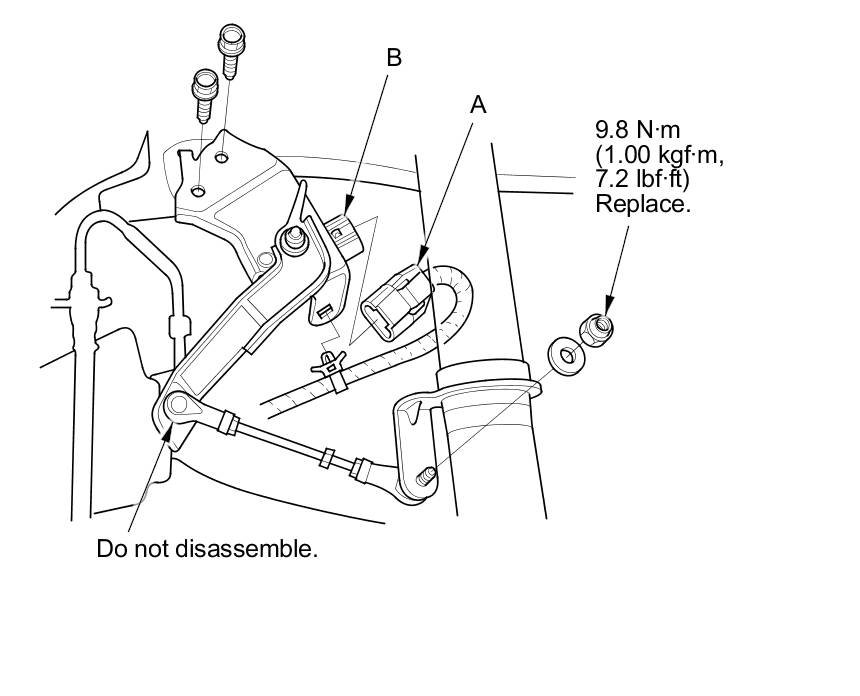

2. Disconnect the 3P connector (A) from the suspension stroke sensor (B).





3. Remove the bolts and nut, then remove the suspension stroke sensor.

4. Install the sensor in the reverse order of removal.

5. After replacement, do the adaptive front lighting control unit learning procedure Adaptive Front Lighting Control Unit Learning Procedure.
