Suspension Stroke Sensor Test (Adaptive Front Lighting System)

Suspension Stroke Sensor Test

1. Remove the suspension stroke sensor Suspension Stroke Sensor Replacement (Adaptive Front Lighting System).

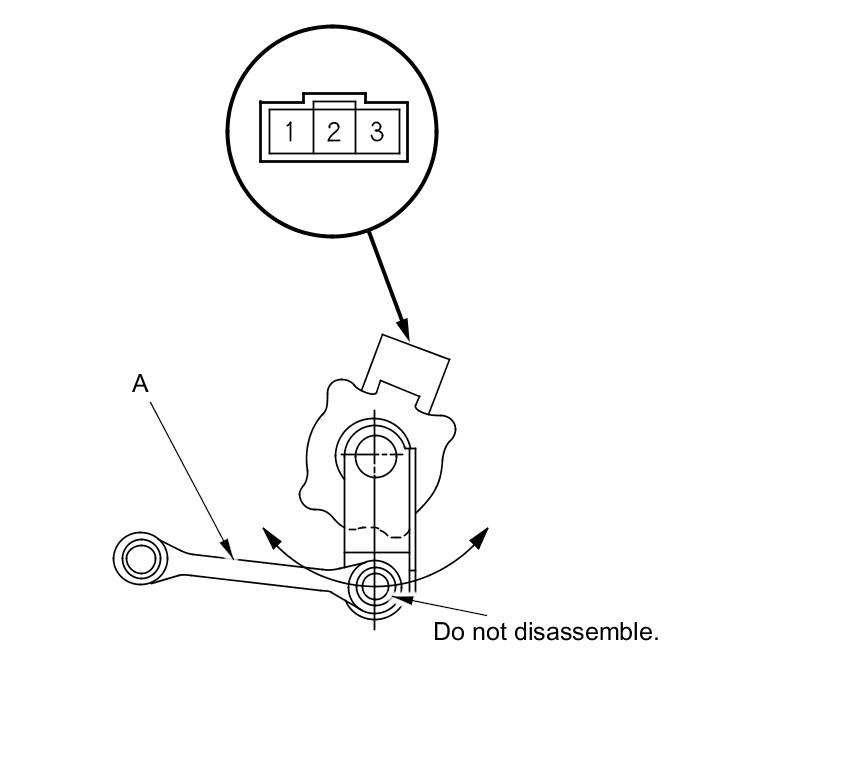

2. Measure the resistance between suspension stroke sensor 3P connector terminals No. 1 and No. 3. There should be about 3.5-6.5 kOhms.

3. Measure the resistance between suspension stroke sensor 3P connector terminals No. 2 and No. 3 with the linkage (A) moved. There should be about 0.5-4.5 kOhms.





4. If the resistance is not as specified, replace the suspension stroke sensor Suspension Stroke Sensor Replacement (Adaptive Front Lighting System).

5. After replacement, do the adaptive front lighting control unit learning procedure Adaptive Front Lighting Control Unit Learning Procedure.
