Headlight Leveling Motor Input Test

Headlight Leveling Motor Input Test

1. Turn the ignition switch to LOCK (0).

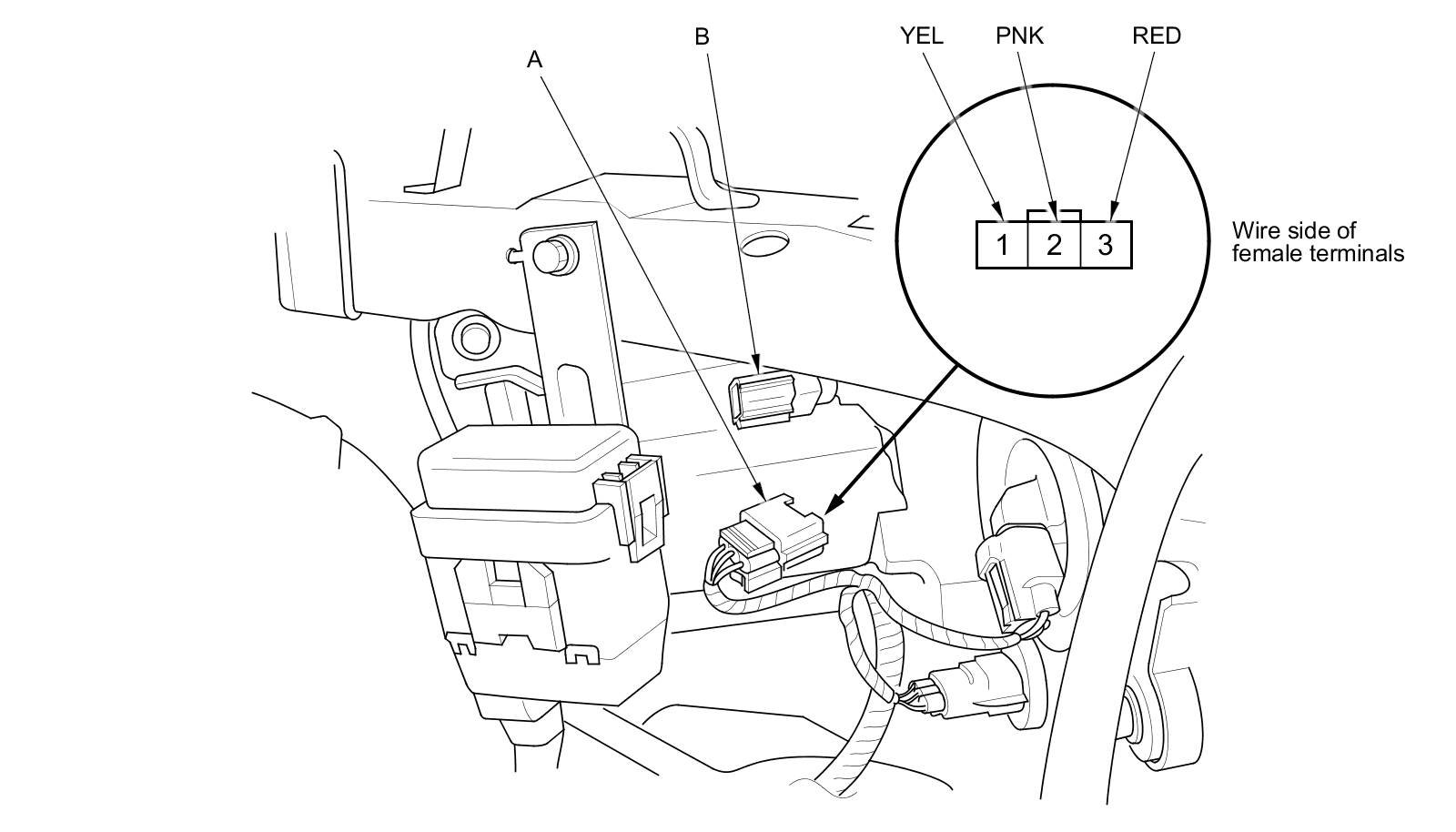

2. Disconnect the 3P connector (A) from the headlight leveling motor (B).





3. Inspect the connector and socket terminals to be sure they are all making good contact.

- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 4.

4. Reconnect the connector to the headlight leveling motor, and do the following input tests.

- If any tests indicate a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the headlight leveling motor Headlight Leveling Motor Replacement (Headlight Leveling System).
