Taillight Replacement
Taillight Replacement 1.

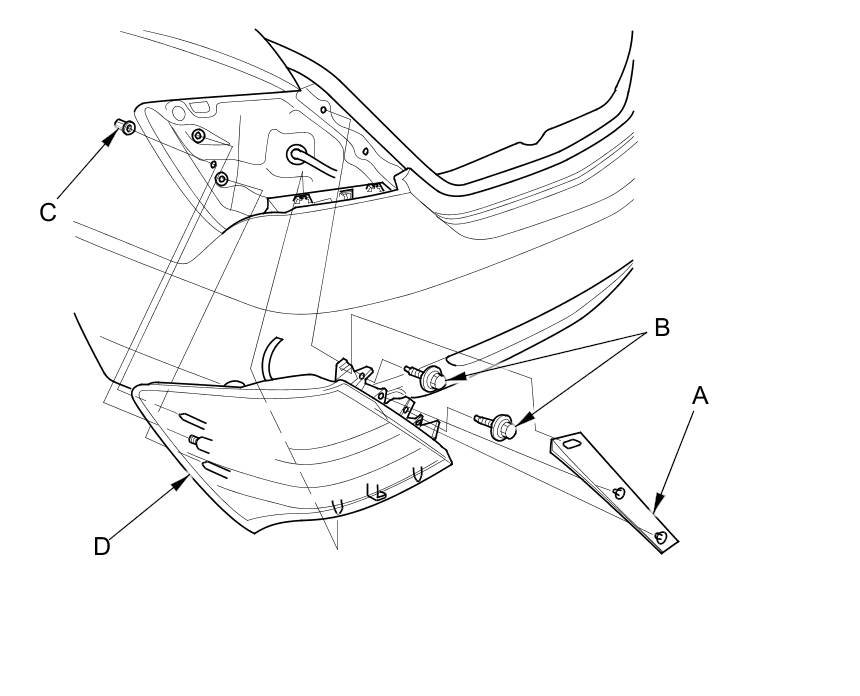

Open the trunk lid, and remove the taillight lid (A).
2.
Remove the two bolts (B) from the taillight.
3.
Remove the maintenance lid and special nut (C) from the taillight (D).
4.

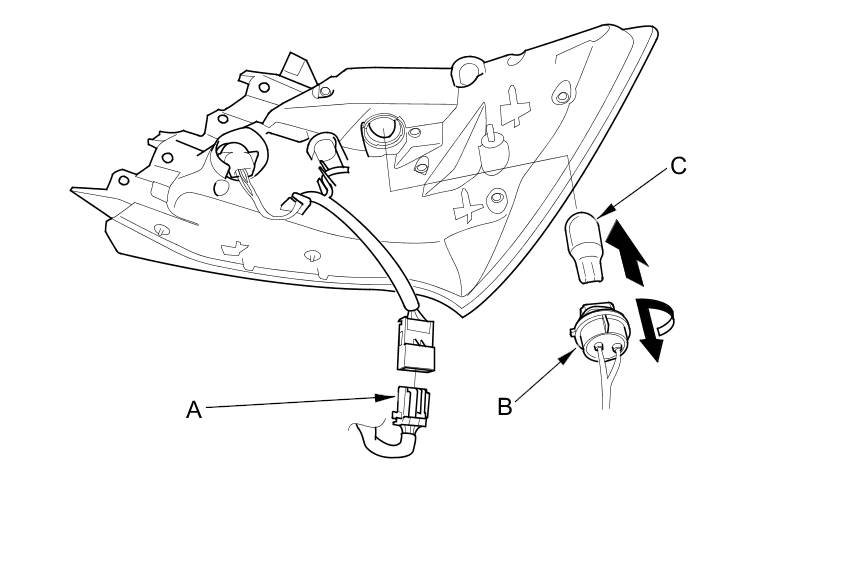

Pull out the taillight slightly, disconnect the 5P connector (A).
5.
Turn the bulb sockets (B) 45 ° counterclockwise to remove the bulbs (C).
6.
Install the parts in the reverse order of removal.
