Vanity Mirror Light Test
Vanity Mirror Light Test 1.
Remove the sunvisor
Service and Repair.
2.

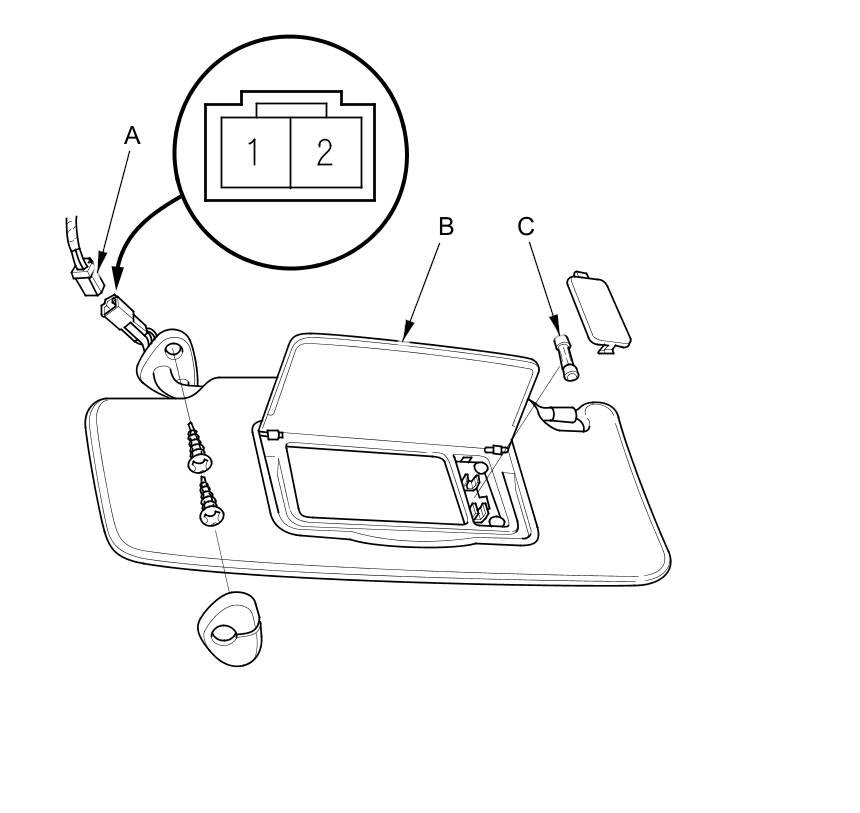

Disconnect the 2P connector (A) from the vanity mirror light.
3.

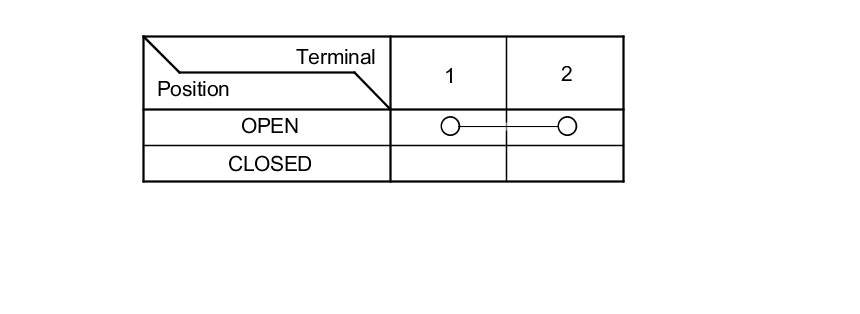

Check for continuity between the terminals in each vanity mirror cover (B) position according to the table.
4.
If the continuity is not as specified, replace the bulb (C) or the sunvisor
Service and Repair.
