Resetting the Engine Oil Life Display






Resetting the Engine Oil Life Display

If maintenance service is done by someone other that the dealer, reset the Maintenance Minder as follows:

1. Turn the ignition switch to the ON (II) position.

2. If the oil life minder. is not displayed, press the SEL/RESET button on the steering wheel repeatedly until it is.

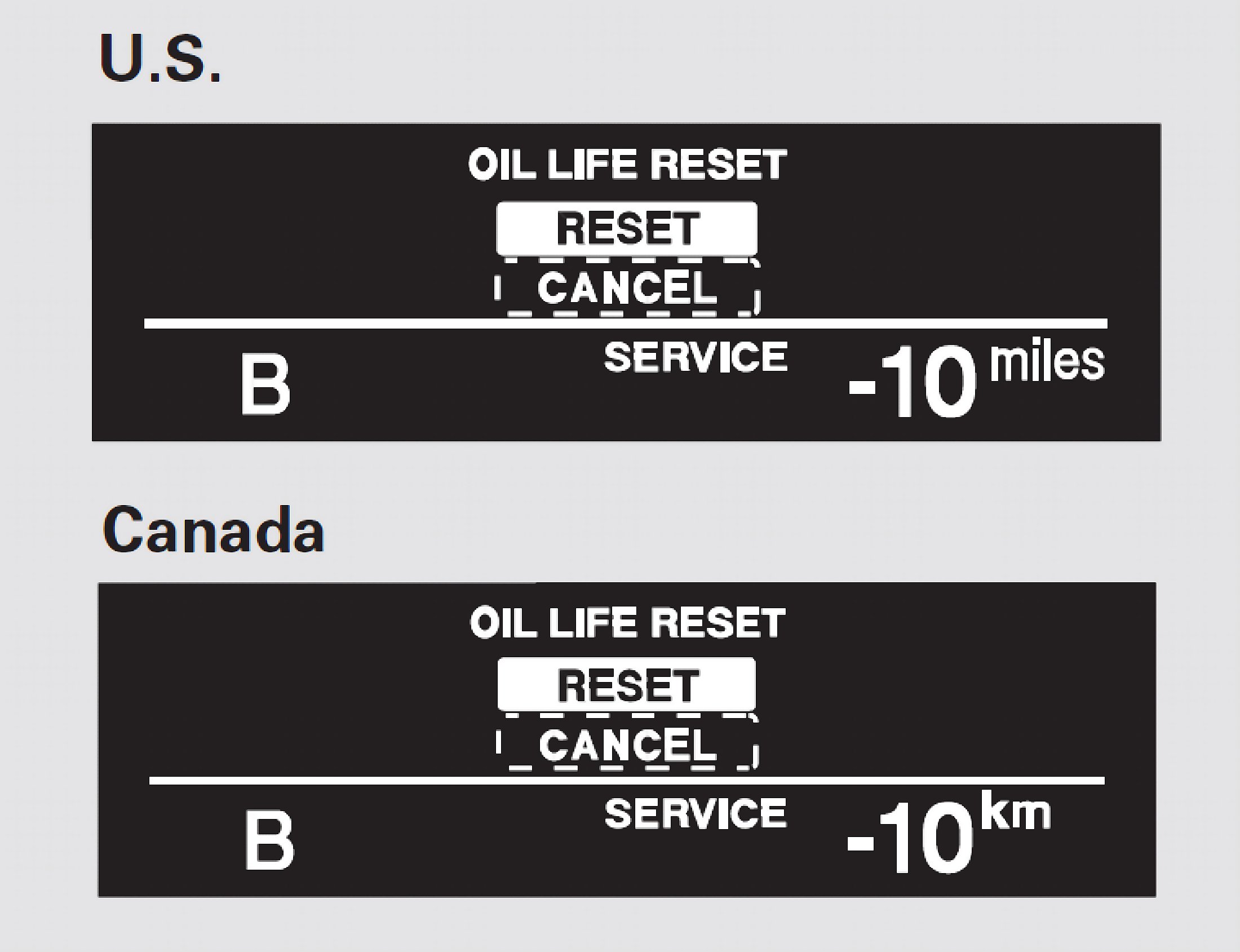

3. Press and hold the SEL/RESET button on the steering wheel for more than 10 seconds, The remaining engine oil life reset mode will be shown on the multi-information display.

To reset the engine oil life, press the button with up and down arrows on the steering wheel to select RESET on the display, and press the SEL/ RESET button.

To cancel resetting the oil life, press the button with up and down arrows on the steering wheel to select CANCEL on the display, and press the SEL/ RESET button.

If you do not complete the reset procedure within 30 seconds after selecting the reset mode, the mode will be canceled automatically.
