Resonator: Service and Repair
Intake Air Resonator Removal/Installation 1.
Remove the front bumper
Front Bumper Removal / Installation.
2.
Remove the air cleaner
Service and Repair.
3.

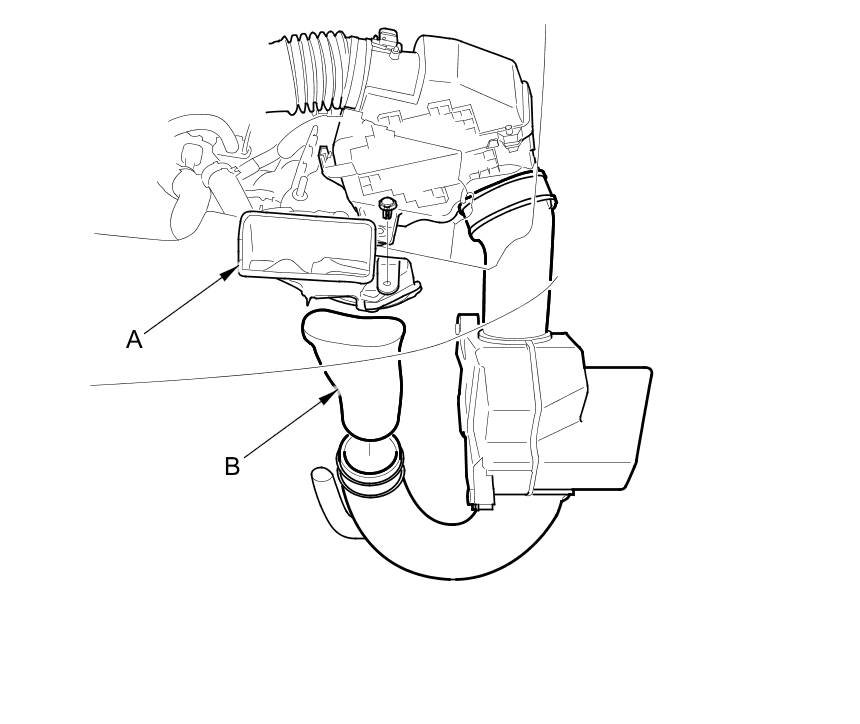

Remove the intake air duct (A) and the tube (B).
4.

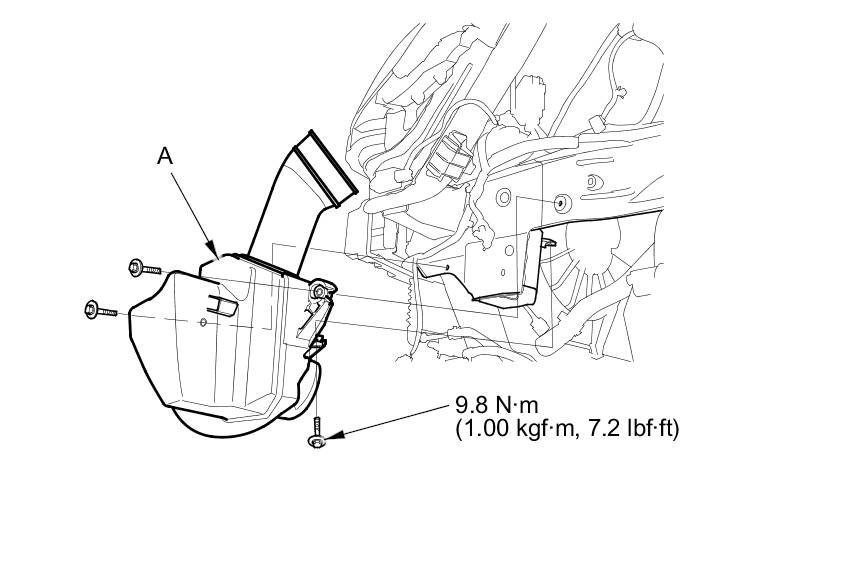

Remove the bolts and the intake air
resonator (A).
5.
Install the parts in the reverse order of removal.
