Transmission Fluid Pressure Switch B (3rd Clutch) Replacement




Transmission Fluid Pressure Switch B (3rd Clutch) Replacement

1. Do the battery removal procedure.

2. Remove the air cleaner Service and Repair.

3. Remove the battery base.

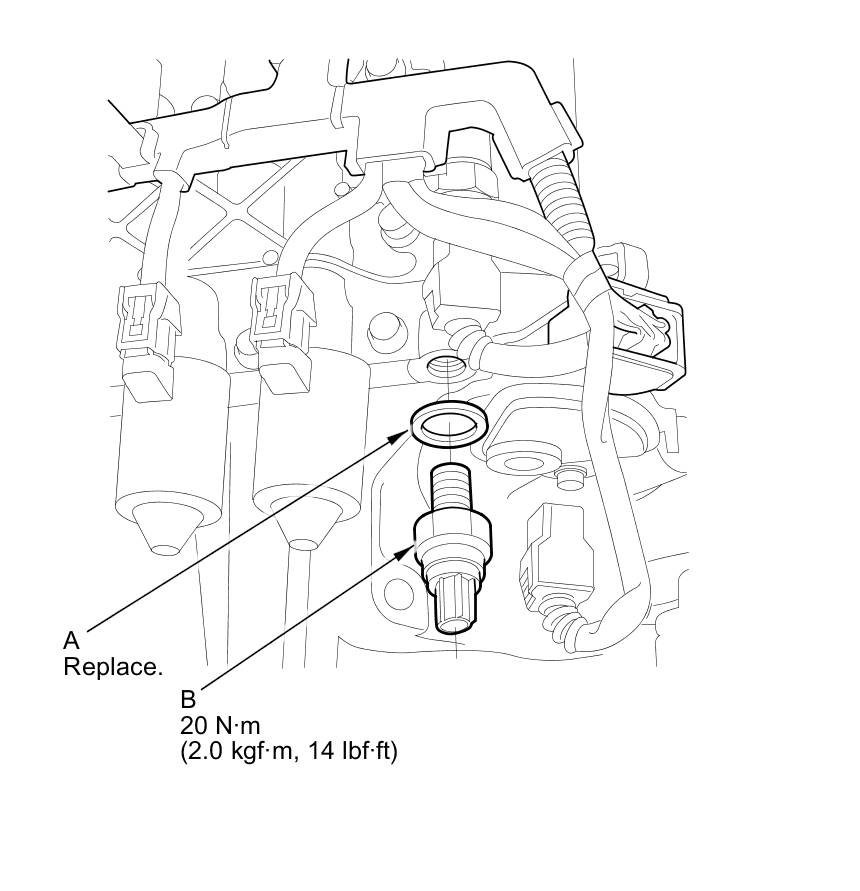

4. Disconnect the transmission fluid pressure switch B (3rd clutch) connector, and remove transmission fluid pressure switch B (3rd clutch) and the sealing washer (A).





5. Install a new transmission fluid pressure switch B (3rd clutch) and a new sealing washer, and tighten the switch.

6. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

7. Install the battery base.

8. Install the air cleaner Service and Repair.

9. Do the battery installation procedure.
