Transmission Fluid Pressure Switch D (5th Clutch) Replacement




Transmission Fluid Pressure Switch D (5th Clutch) Replacement

1. Remove the air cleaner Service and Repair.

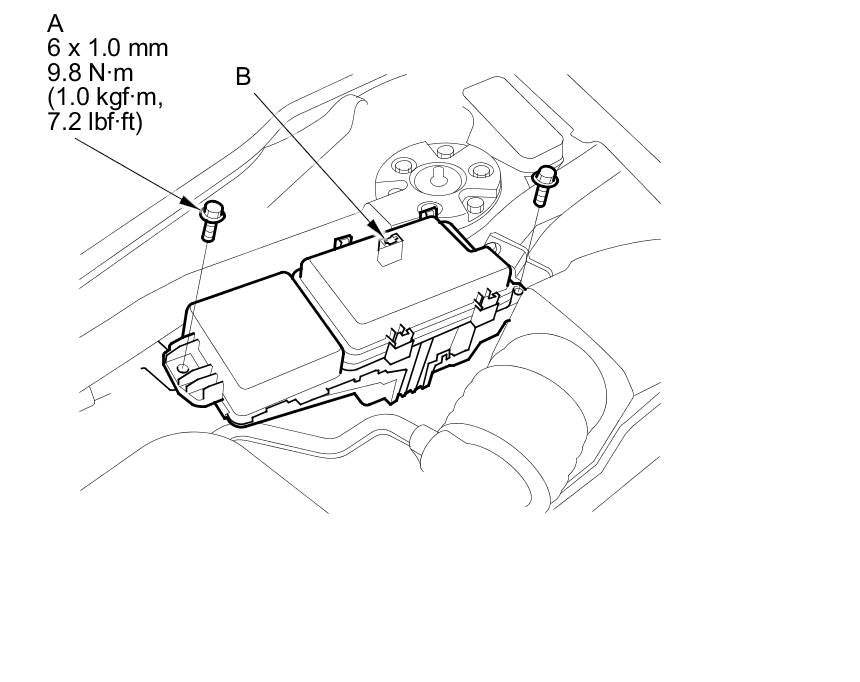

2. Remove the bolts (A) and clamp (B) securing the under-hood fuse/relay box.

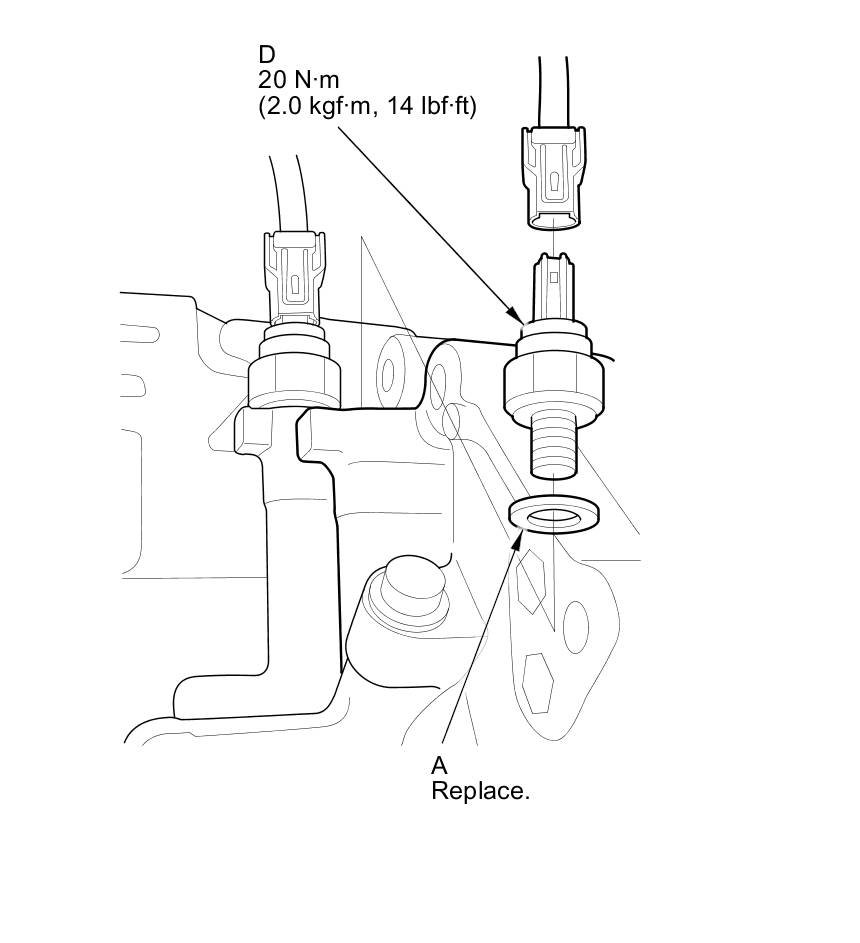

3. Disconnect the transmission fluid pressure switch D (5th clutch) connector, and remove transmission fluid pressure switch D (5th clutch) and the sealing washer (A).






4. Install a new transmission fluid pressure switch D (5th clutch) and a new sealing washer, and tighten the switch.

5. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

6. Secure the under-hood fuse/relay box with the bolts.

7. Install the air cleaner Service and Repair.
