Transfer Output Shaft Bearing Replacement




Transfer Output Shaft Bearing Replacement

Special Tools Required

- Driver Handle, 40 mm I.D. 07746-0030100

NOTE: Adjust the transfer output shaft installation height after replacing the bearing.

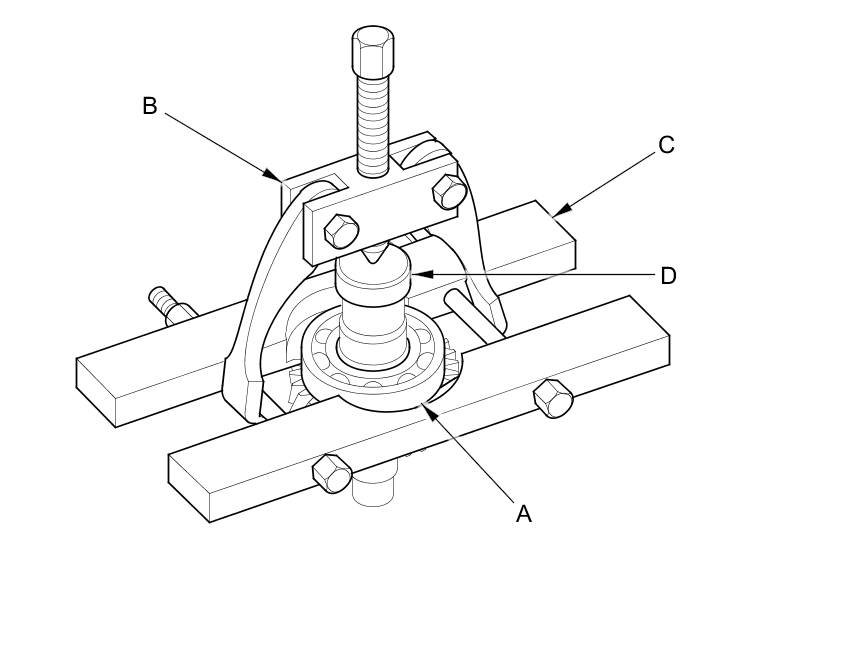

1. Remove the transfer output shaft bearing (A) using a commercially available puller (B), a bearing separator (C), and a spacer (D). Place a spacer between the transfer output shaft and the puller to prevent damaging the transfer output shaft.

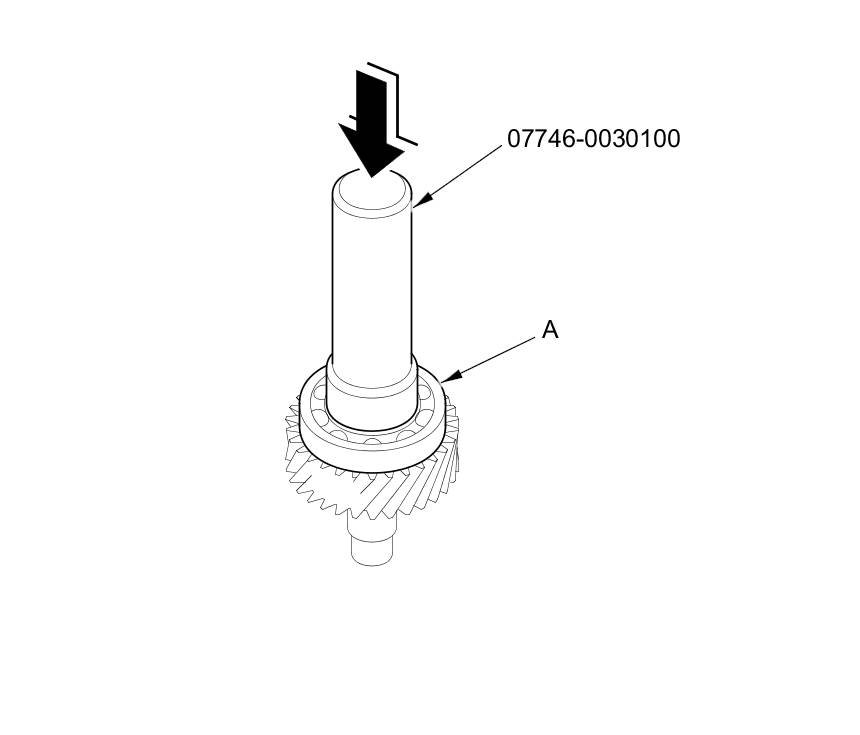

2. Install a new bearing (A) until it bottoms on the transfer output shaft using the driver handle and a press.
