Headlamp Washer Spray Nozzle: Service and Repair




Headlight Washer Nozzle Replacement

Canada models

1. Remove the front bumper Front Bumper Removal / Installation, and disconnect the headlight washer tube from the headlight washer motor.

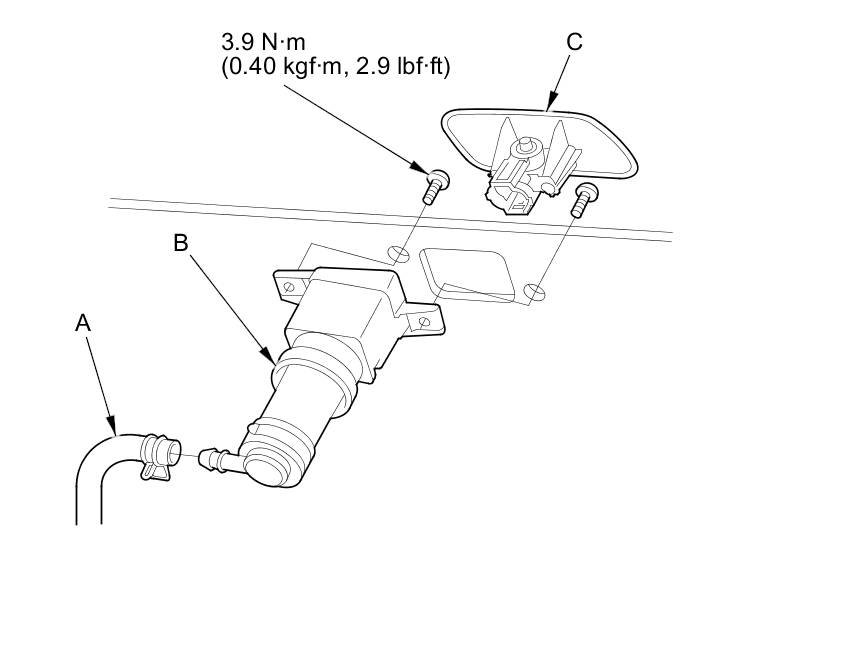

2. Disconnect the headlight washer tube (A) from the headlight washer nozzle (B).





3. Remove the headlight washer nozzle cover (C).

4. Remove the two screws, then remove the headlight washer nozzle.

5. Install the nozzle in the reverse order of removal. After installation, check the headlight washer operation.
