System Description

Immobilizer System Description

The vehicle is equipped with a Type VII (GEN 5) immobilizer system that disables the vehicle unless a programmed ignition key is used.

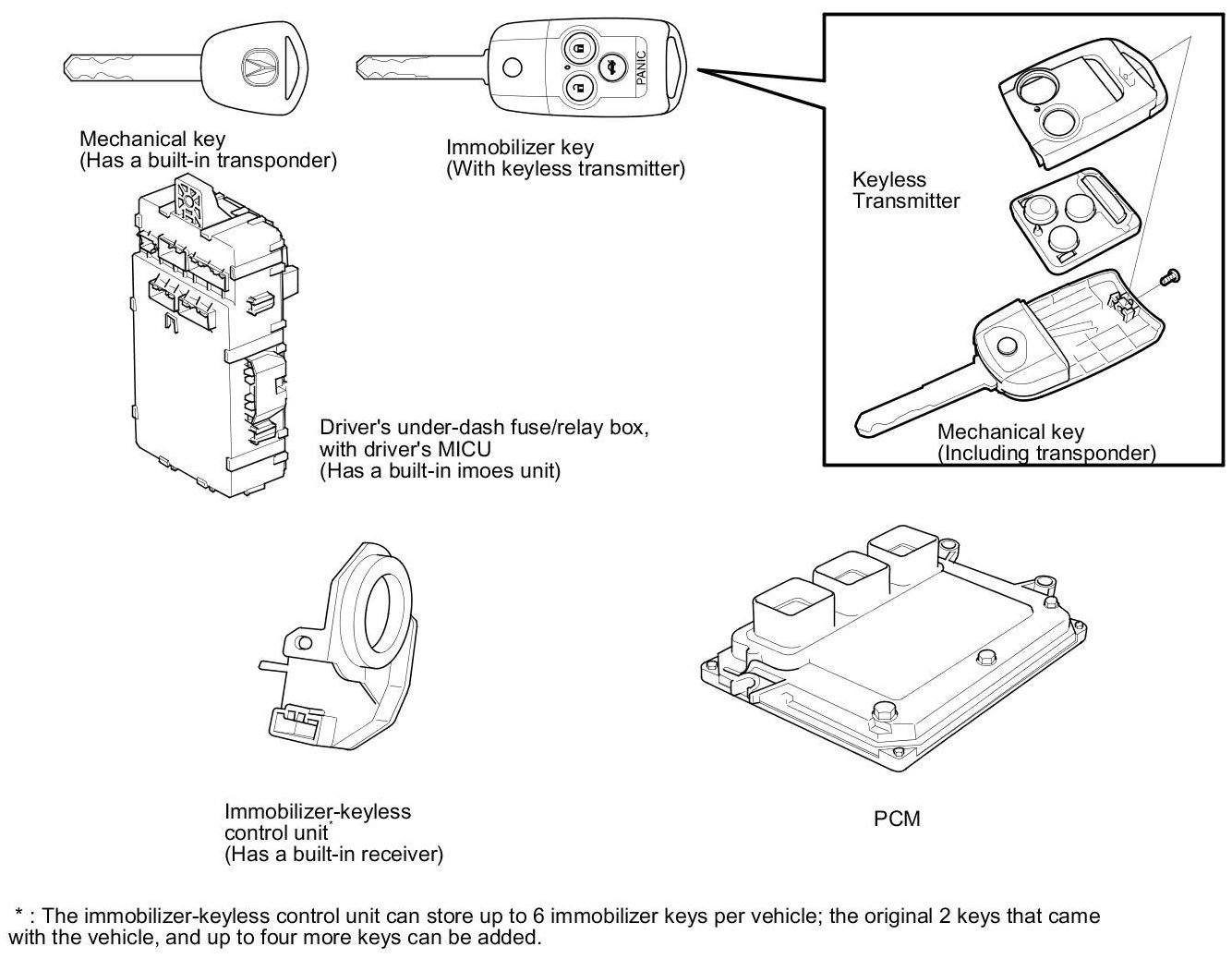

This system consists of a transponder built into the ignition key, an immobilizer-keyless control unit (has a built-in receiver), the driver's MICU (has a built-in imoes unit), an immobilizer indicator, and the PCM.

When the immobilizer key (programmed by the HDS) is inserted into the ignition switch and turned to ON (II), the immobilizer-keyless control unit sends power to the transponder. The transponder then sends a coded signal back to the immobilizer-keyless control unit, which then sends a coded signal to the PCM and the driver's MICU (imoes unit). The PCM and driver's MICU (imoes unit) identify this coded signal, then voltage is supplied to the fuel pump.





If the wrong key is used or the code was not received or recognized, the indicator flashes once, then it blinks until the ignition switch is turned to LOCK (0). When the ignition switch is turned to the LOCK (0) position, the indicator blinks ten times to signal that unit has reset correctly, then the indicator goes off.
