Keyless Access LF Antenna (Rear Shelf) Replacement




Keyless Access LF Antenna (Rear Shelf) Replacement

1. Remove the trunk upper trim panel Interior Trim Removal / Installation - Trunk Lid.

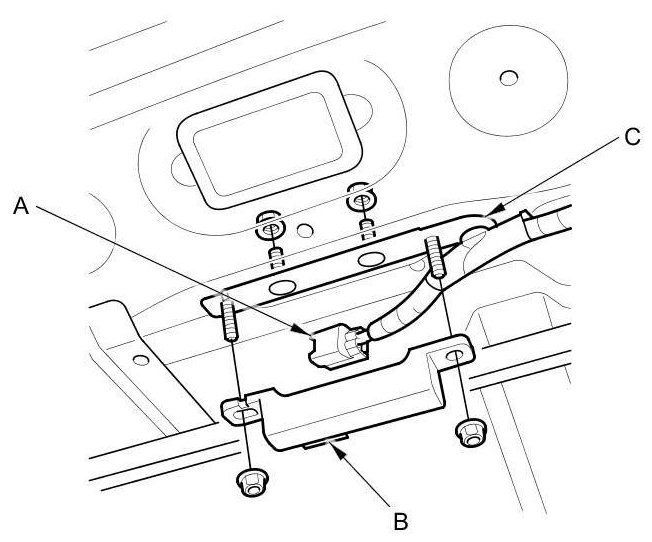

2. Disconnect the 2P connector (A) from the rear shelf LF antenna (B).





3. Remove the two nuts and the rear shelf LF antenna.

4. If necessary, remove the rear shelf Service and Repair.

5. If necessary, remove the two nuts and replace the bracket (C).

6. Install the antenna in the reverse order of removal.
