M/T Countershaft Bearing Replacement

M/T Countershaft Bearing Replacement

Special Tools Required

- Bearing Driver Attachment, 72 x 75 mm 07746-0010600
- Driver Handle, 15 x 135L 07749-0010000
- Adjustable Bearing Puller, 45-75 mm 07YAC-0010100
- Slide Hammer 3/8''-16 UNF, commercially available

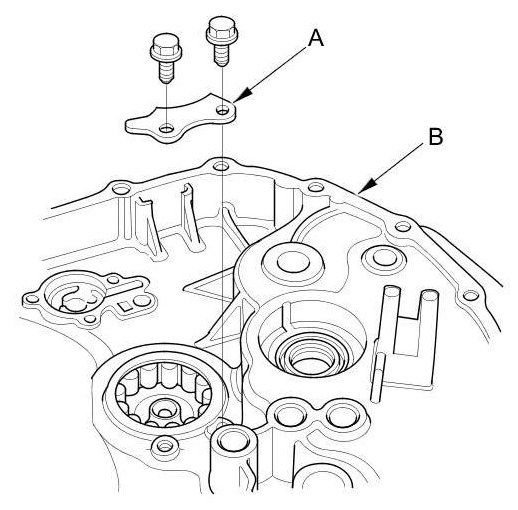

1. Remove the bearing set plate (A) from the clutch housing (B).

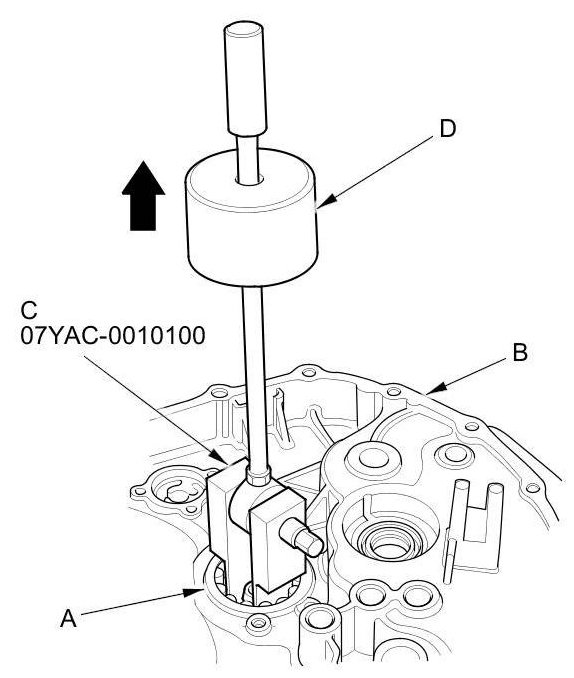

2. Remove the needle bearing (A) from the clutch housing (B) using the 45-75 mm adjustable bearing puller (C) and a commercially available 3/8''-16 UNF slide hammer (D).

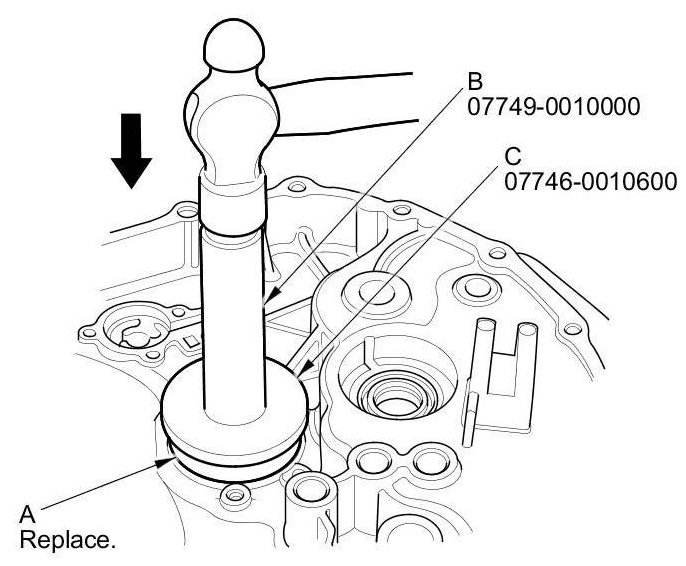

3. Install a new needle bearing (A) using the 15 x 135L driver handle (B) and the 72 x 75 mm bearing driver attachment (C).

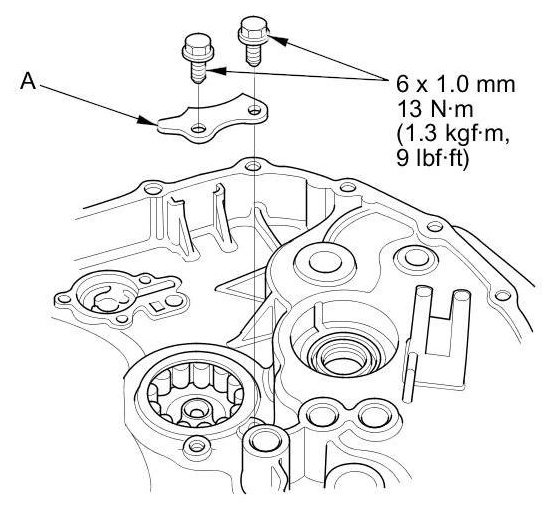

4. Install the bearing set plate (A).
