M/T Select Arm Clearance Inspection
M/T Select Arm Clearance Inspection 1.

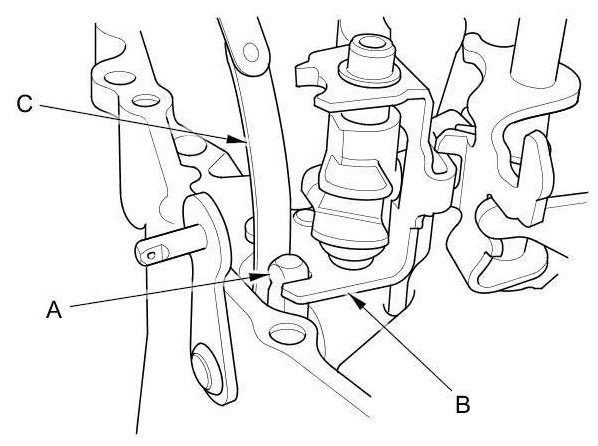

Measure the clearance between the select arm (A) and the interlock (B) with a feeler gauge (C). If the clearance exceeds the service limit, go to step 2.
2.
Measure the width of the select arm.
-
If the width is not within the standard, replace the select arm.
-
If the width is within the standard, replace the interlock.
