Keyless Entry Receiver: Service and Repair
Keyless Access RF Unit Replacement 1.
Remove the center console panel
Center Console Panel Removal / Installation.
2.

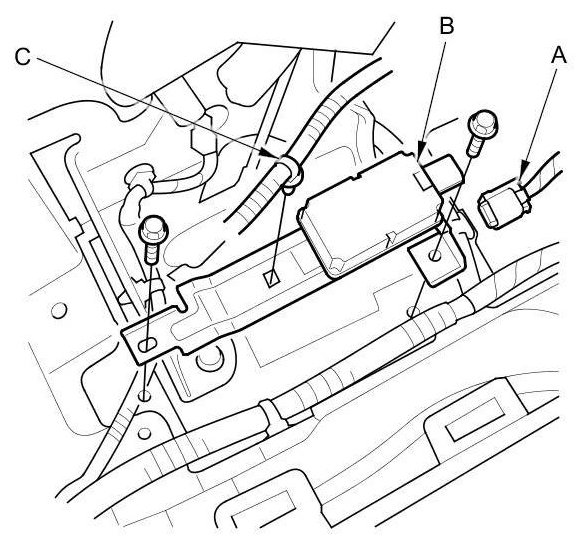

Disconnect the 3P connector (A) from RF unit (B) and remove the harness clip (C).
3.
Remove the two bolts and RF unit.
4.
Install the unit in the reverse order of removal.
