Keyless Access Remote Slot Light Test




Keyless Access Remote Slot Light Test

1. Remove the column covers Service and Repair.

2. Remove the driver's center trim Dashboard Center Trim Removal / Installation.

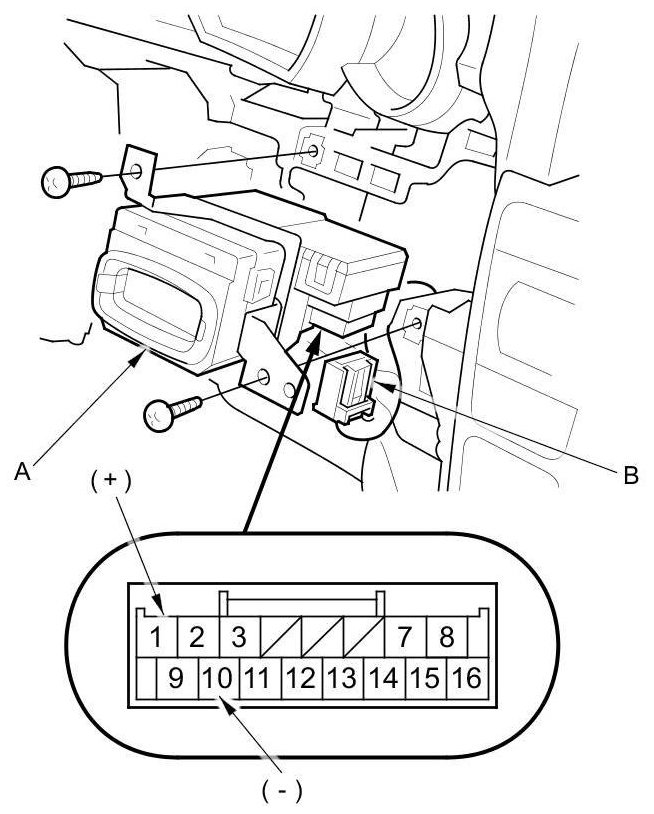

3. Remove the two screws, then pull out the remote slot (A).





4. Disconnect the 16P connector (B) from the remote slot.

5. The LED should come on when power is connected to terminal No. 1 and ground is connected to terminal No. 10.

6. The LED does not come on, the remote slot light is faulty; replace the remote slot control unit.
