Yaw Rate Sensor: Service and Repair

Yaw Rate-Acceleration Sensor Replacement

NOTE:

- Do not damage or drop the sensor as it is sensitive.
- Do not use power tools when replacing the sensor.

1. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

2. Remove the center console Center Console Removal / Installation.

3. MT: Remove the shift lever assembly M/T Shift Lever Housing Replacement.

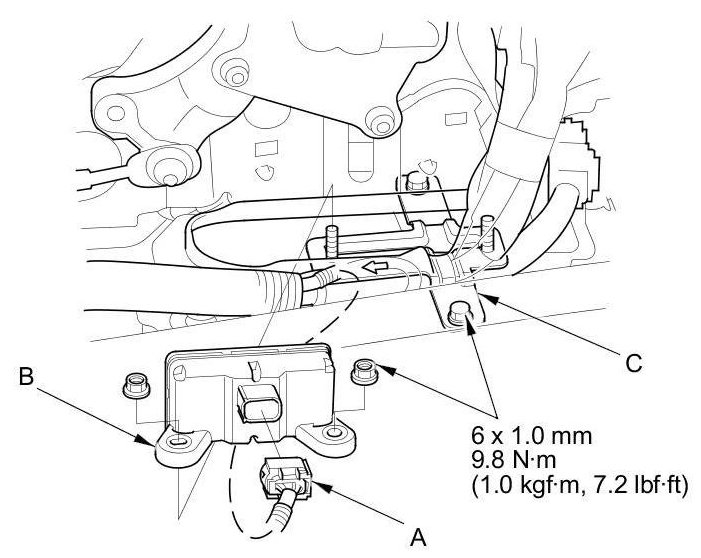

4. Disconnect the yaw rate-acceleration sensor 4P connector (A), then remove the yaw rate-acceleration sensor (B).





5. Check for deformation in the bracket (C). If necessary replace it.

6. Install the yaw rate-acceleration sensor in the reverse order of removal.

7. Do the VSA sensor neutral position memorization Programming and Relearning.

8. SH-AWD: Do the yaw rate-acceleration neutral position memorization .
