BSI Control Unit Removal/Installation
BSI Control Unit Removal/Installation 1.
Remove the left trunk side trim panel
Interior Trim Removal / Installation - Trunk Area.
2.

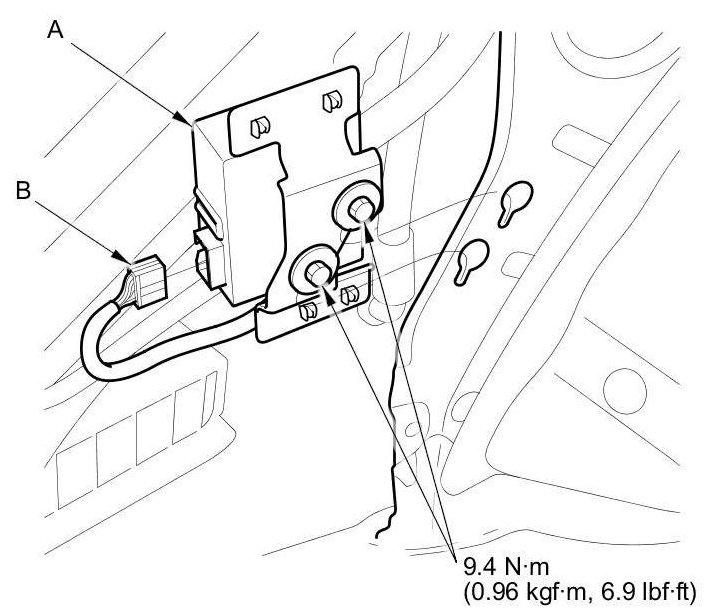

Remove the BSI
control unit (A).
1.
Disconnect the BSI
control unit 16P connector (B).
2.
Loosen the bolts.
3.
Install the BSI
control unit in the reverse order of removal.
