BSI Radar Unit Removal/Installation

BSI Radar Unit Removal/Installation

1. Remove the rear bumper Service and Repair.

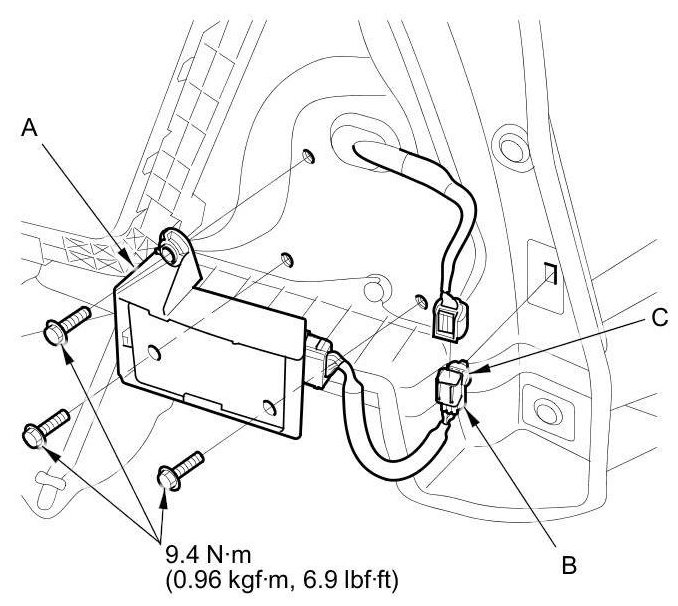

2. Remove the BSI radar unit (A).

1. Disconnect the 6P connector (B), and detach the harness clip (C).

2. Remove the bolts.

3. Clean the surface of the BSI radar unit.

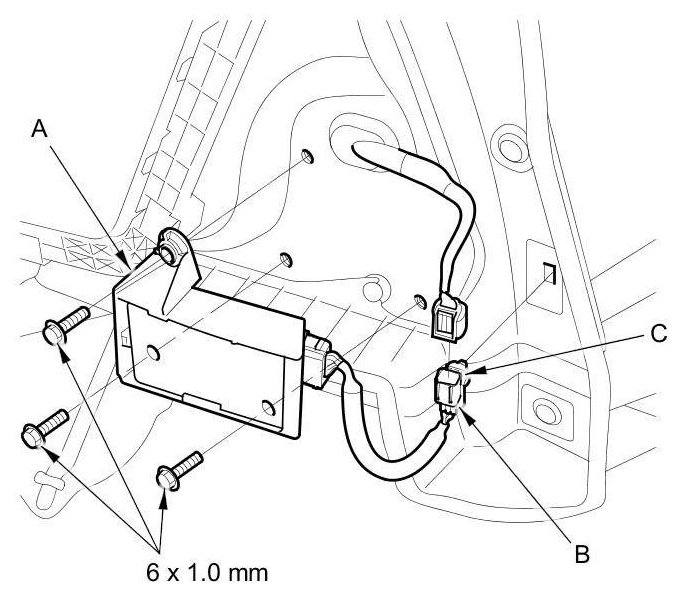

4. Install the BSI radar unit (A).

1. Tighten the bolts.

2. Connect the 6P connector (B), and attach the harness clip (C).

5. Do the BSI radar unit aiming inspection BSI Radar Unit Aiming Inspection.
