Tightening Specifications
Flywheel Bolts

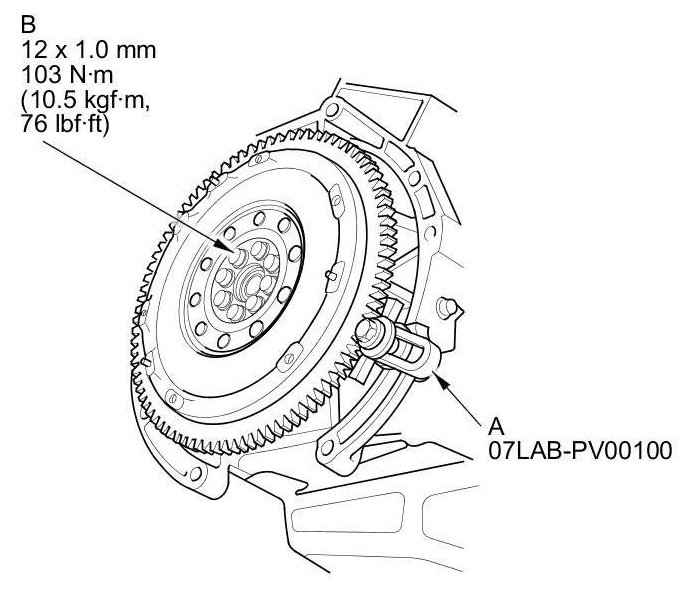

Install the ring gear holder (A), then torque the
flywheel mounting bolts (B) in a crisscross pattern in several steps.
Install the
flywheel on the crankshaft, and install the mounting bolts
Finger-tight.
Install the ring gear holder (A), then torque the flywheel bolts (B)
103 Nm (10.5 kg-m, 76 lb-ft)
Tighten bolts in a crisscross pattern in several steps
