Rear Panel Gusset Replacement
Rear Panel Gusset ReplacementNOTE:
-
Put on gloves to protect your hands.
-
Take care not to scratch the body or the related parts.
-
The left side is shown; the right side is similar.
1.
Remove the trunk side
trim panel.
2.

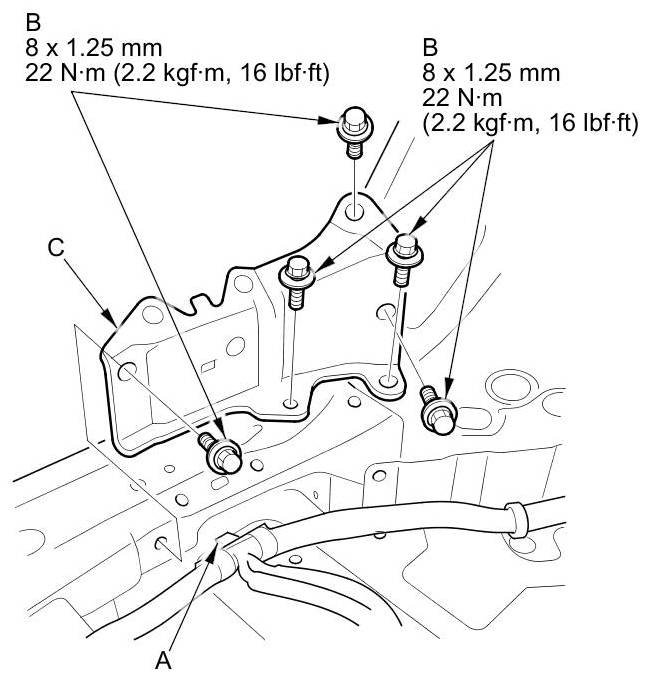

Detach the wire harness clips (A), and remove the bolts (B), then remove the rear panel gusset (C).
3.
Install the gusset in the reverse order of removal.
