Output Shaft (Countershaft) Speed Sensor Replacement




Output Shaft (Countershaft) Speed Sensor Replacement

1. Do the battery removal procedure Removal and Replacement.

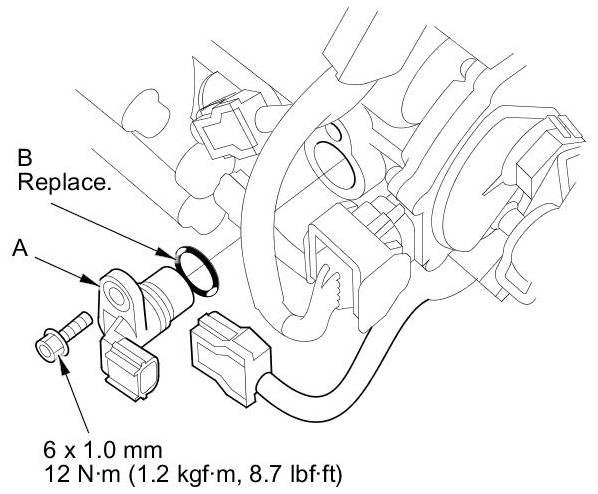

2. Disconnect the output shaft (countershaft) speed sensor connector, and remove the output shaft (countershaft) speed sensor (A).





3. Install a new O-ring (B) on a new output shaft (countershaft) speed sensor, then install the output shaft (countershaft) speed sensor.

4. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

5. Do the battery installation procedure Removal and Replacement.
