Navigation System Description

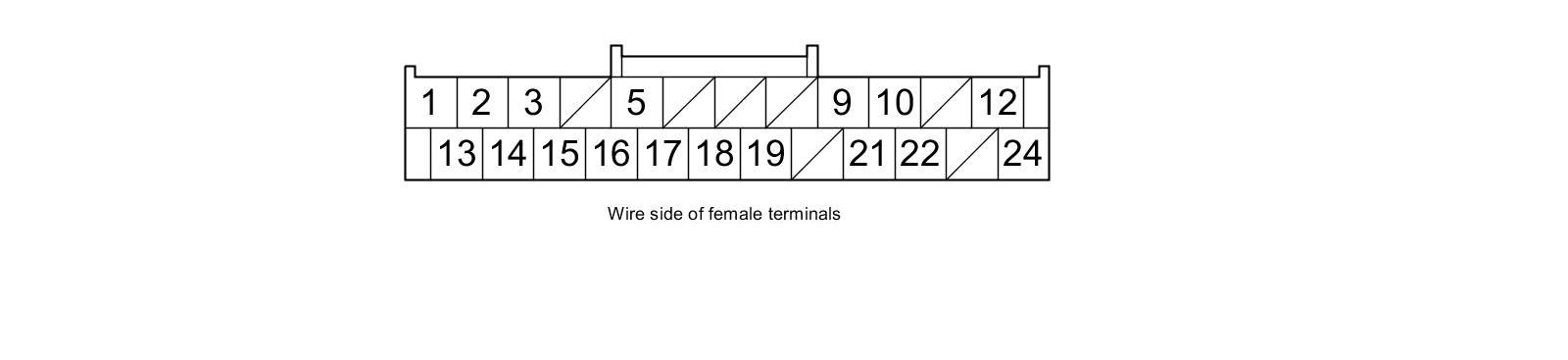

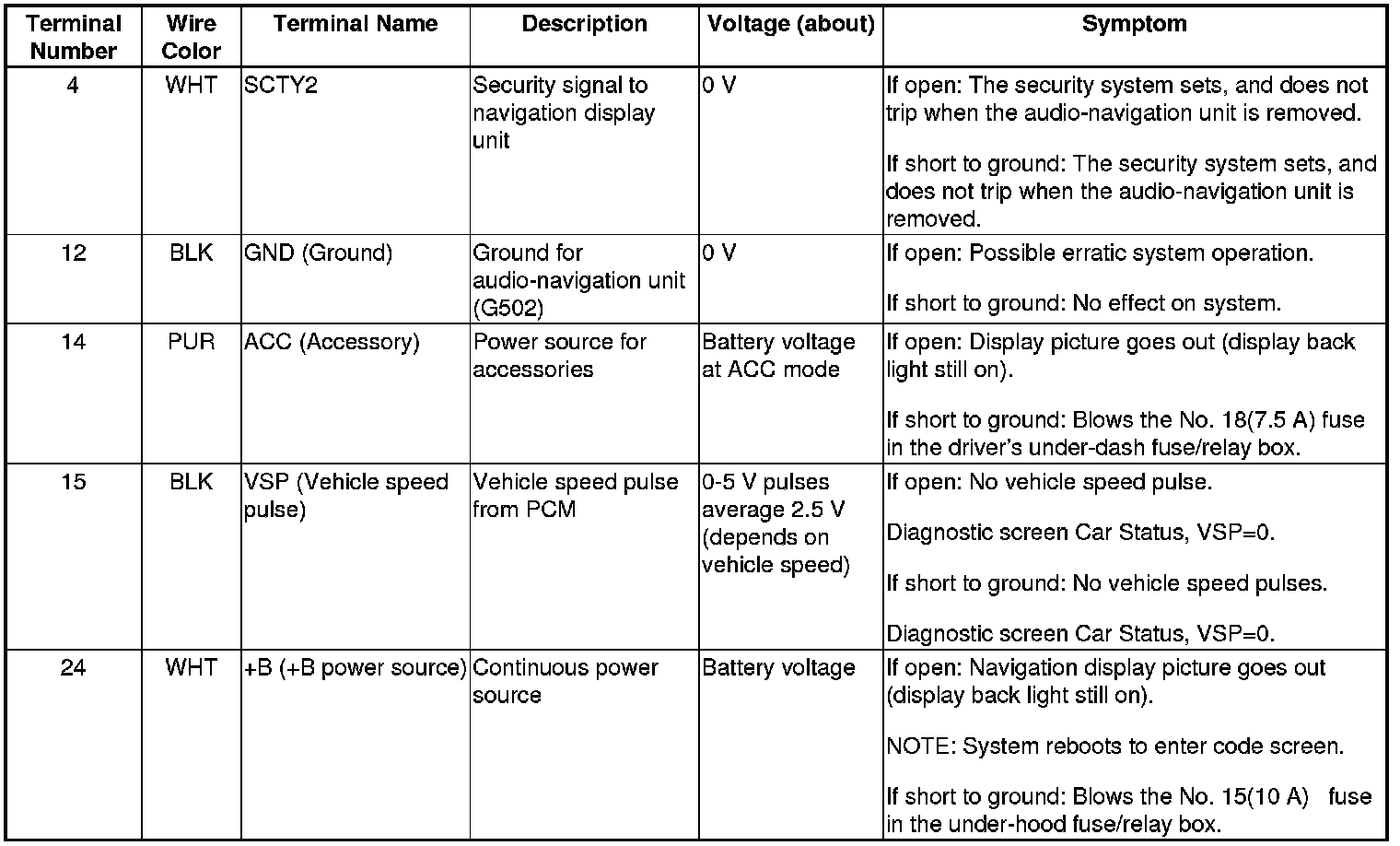

Audio-Navigation Unit Connector A (24P)

AUDIO-NAVIGATION UNIT CONNECTOR B (24P)

NOTE: Refer to the audio system section for the terminals inputs and outputs not shown.

Audio-Navigation Unit Connector B (24P)

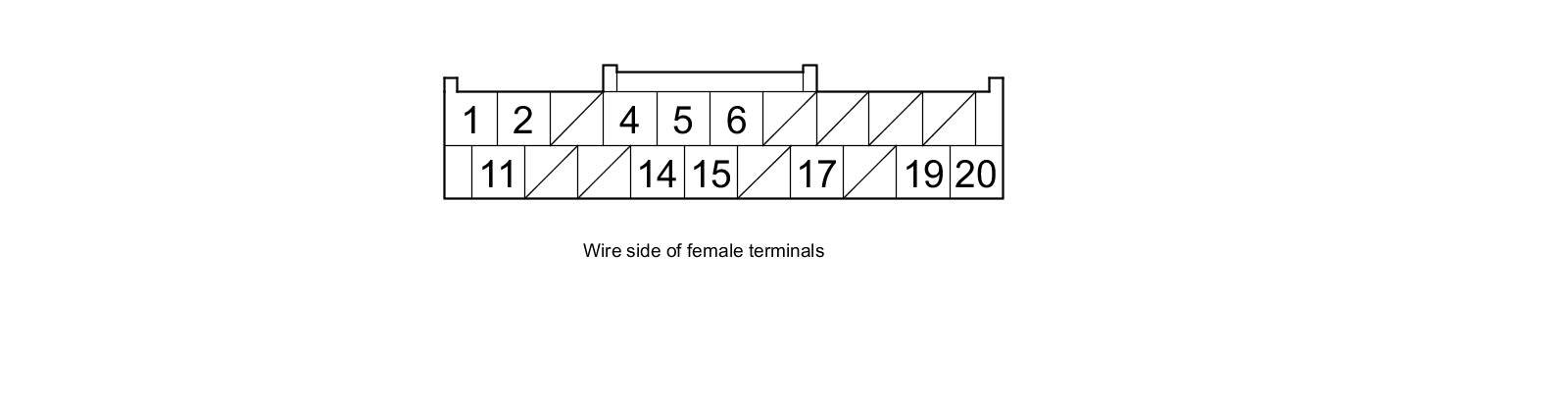

AUDIO-NAVIGATION UNIT CONNECTOR D (20P)

NOTE: Refer to the audio system section for the terminals inputs and outputs not shown.

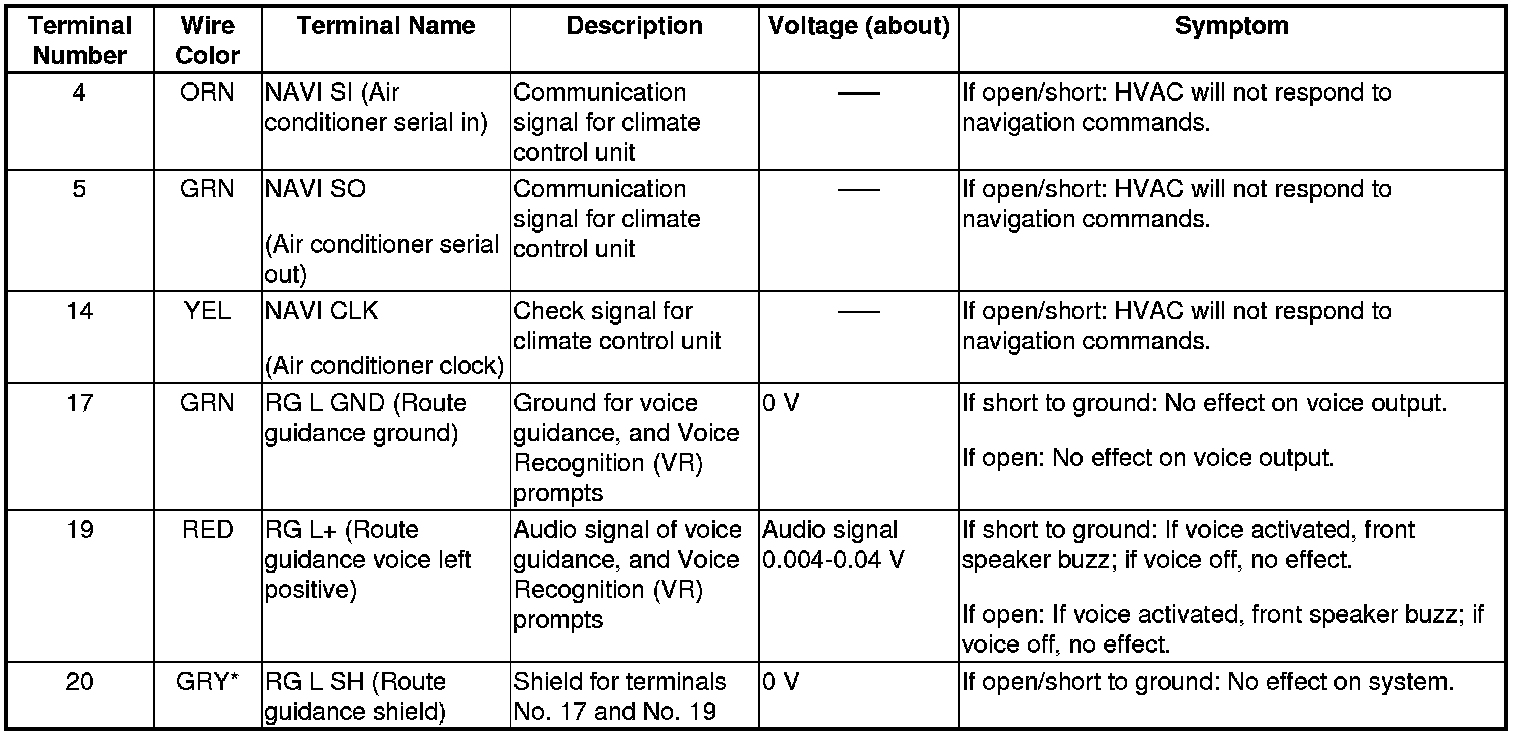

Audio-Navigation Unit Connector D (20P)

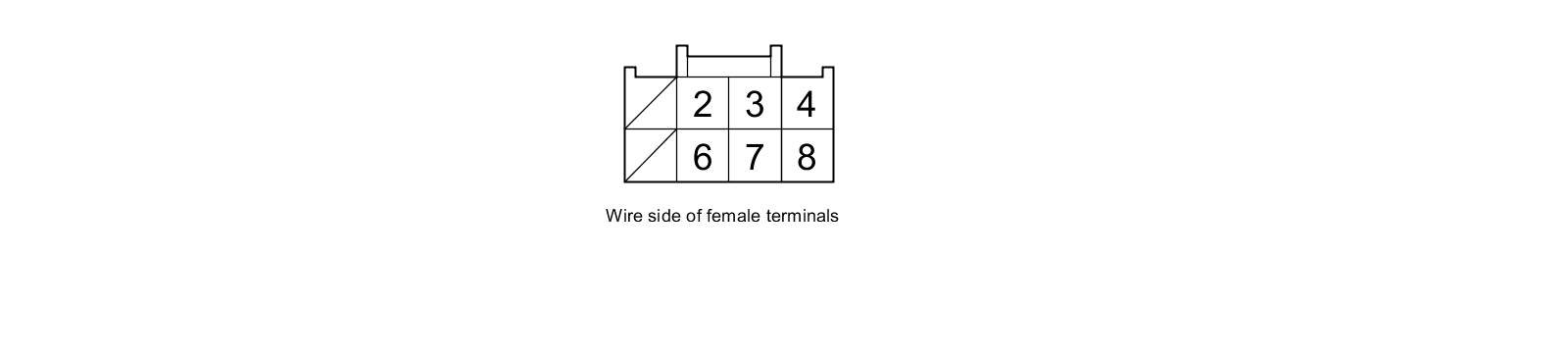

AUDIO-NAVIGATION UNIT CONNECTOR G (8P)

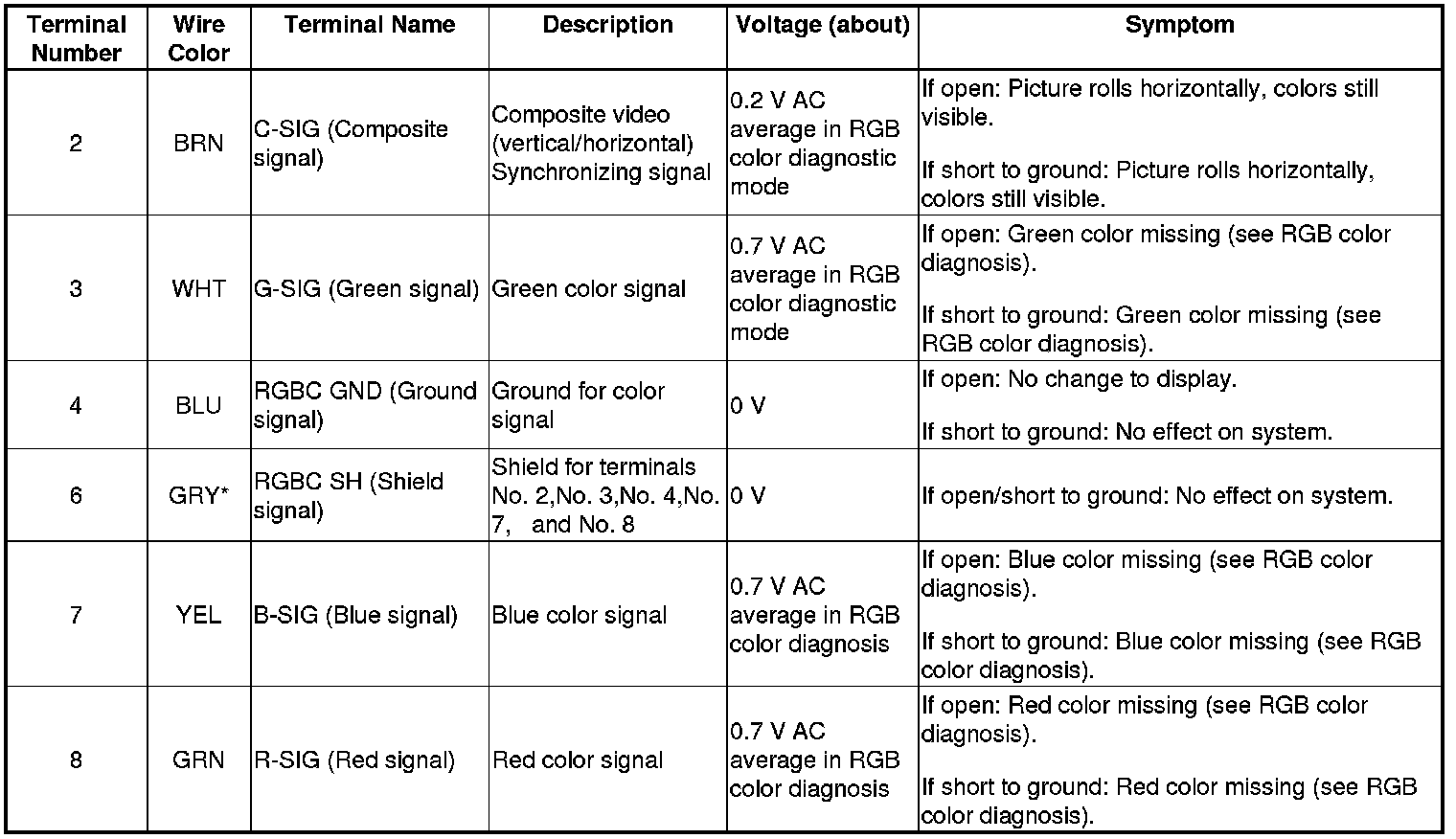

Audio-Navigation Unit Connector G (8P)

AUDIO-NAVIGATION UNIT CONNECTOR H (28P)

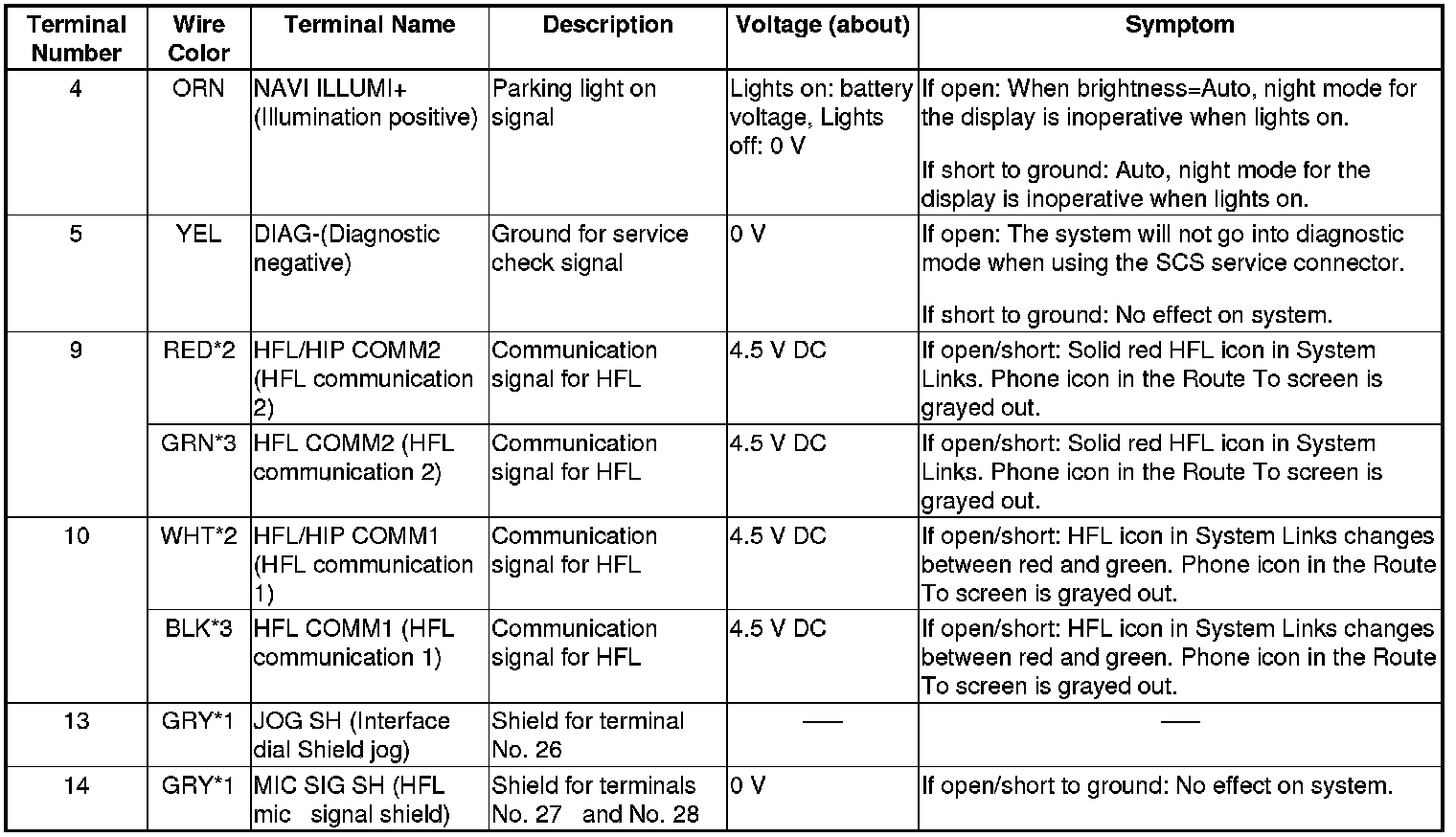

Audio-Navigation Unit Connector H (28P)

Audio-Navigation Unit Connector H (28P)

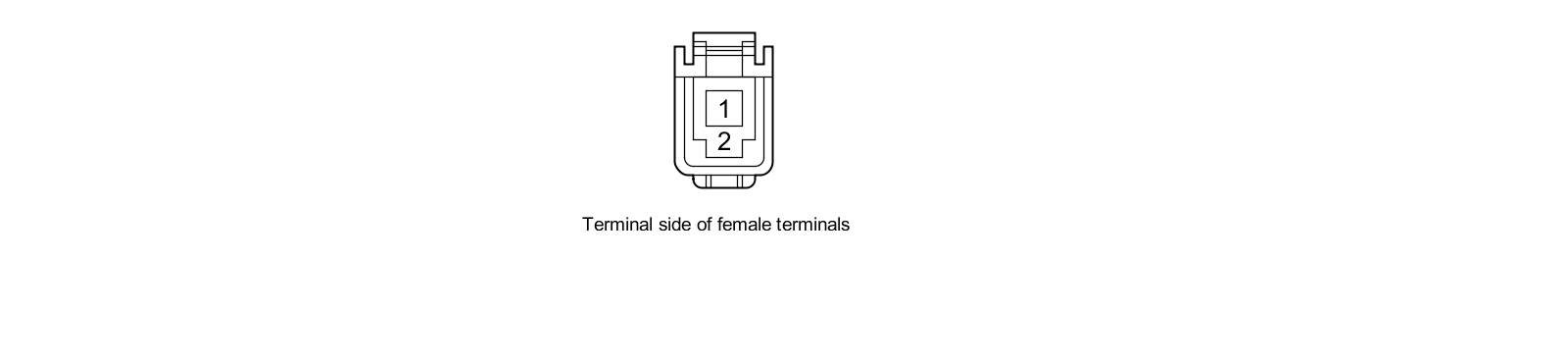

AUDIO-NAVIGATION UNIT CONNECTOR J (2P)

Audio-Navigation Unit Connector J (2P)

Navigation Display Unit Connector for Inputs and Outputs

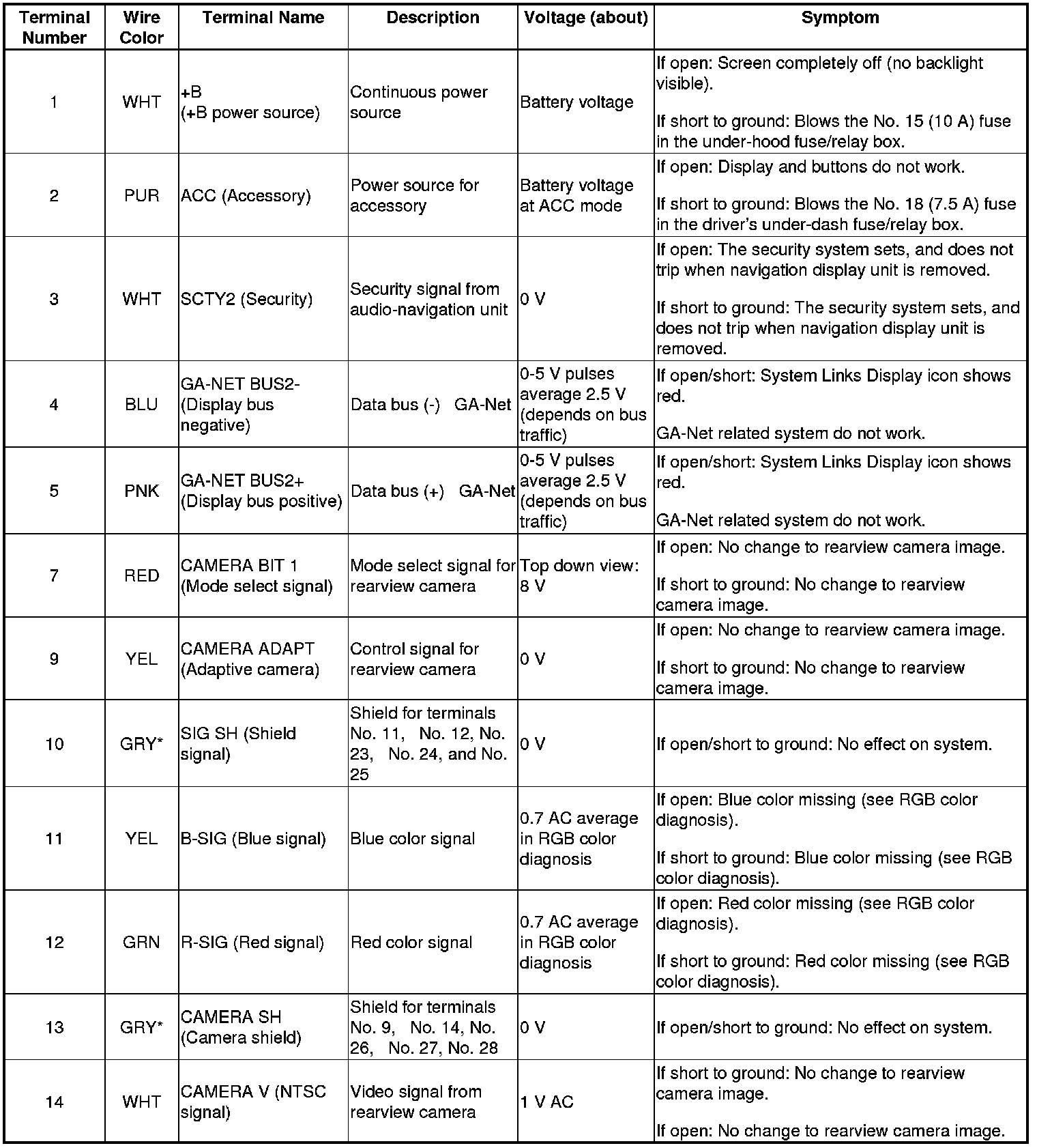

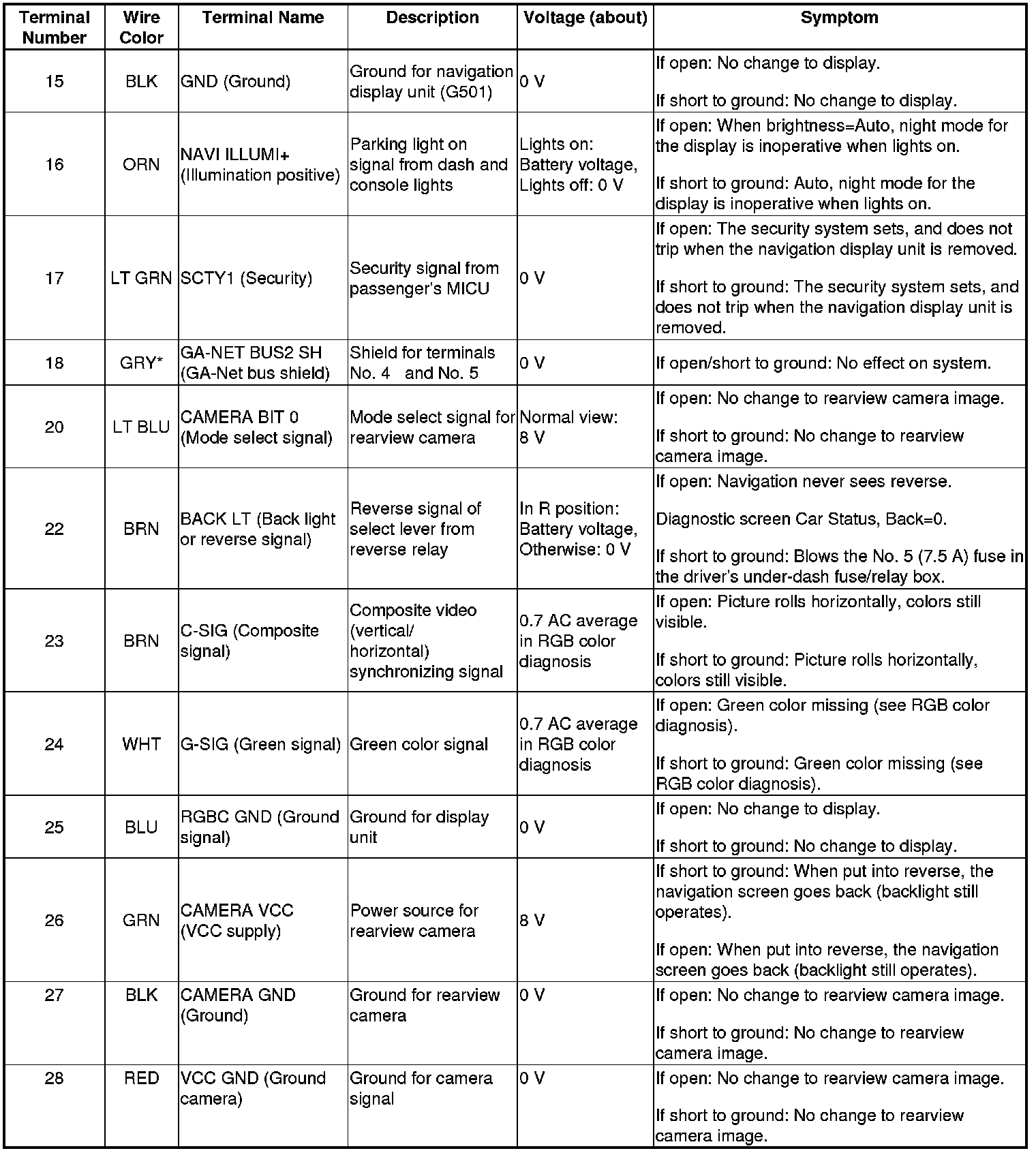

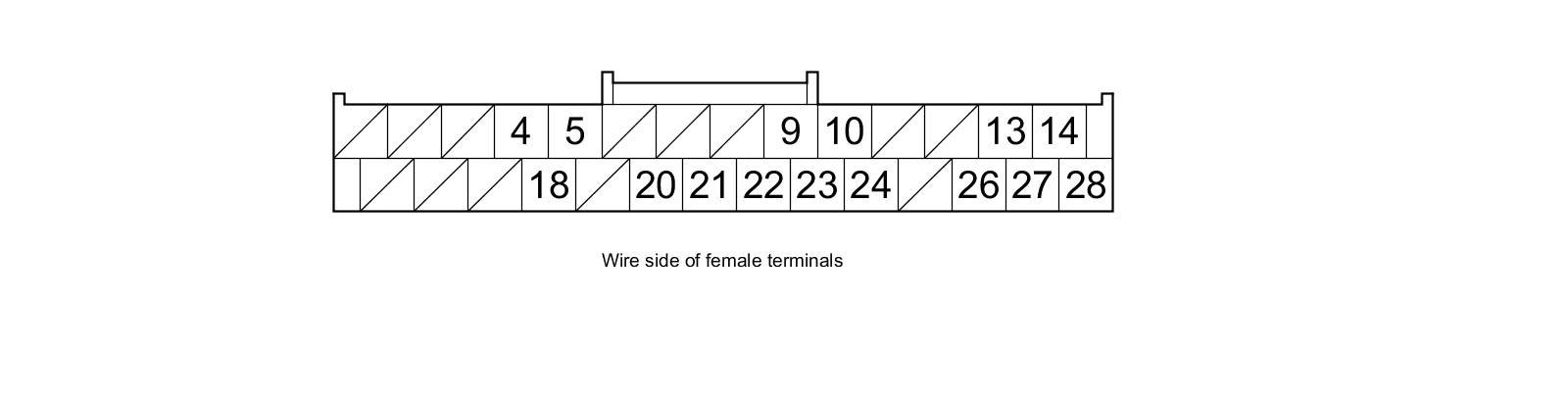

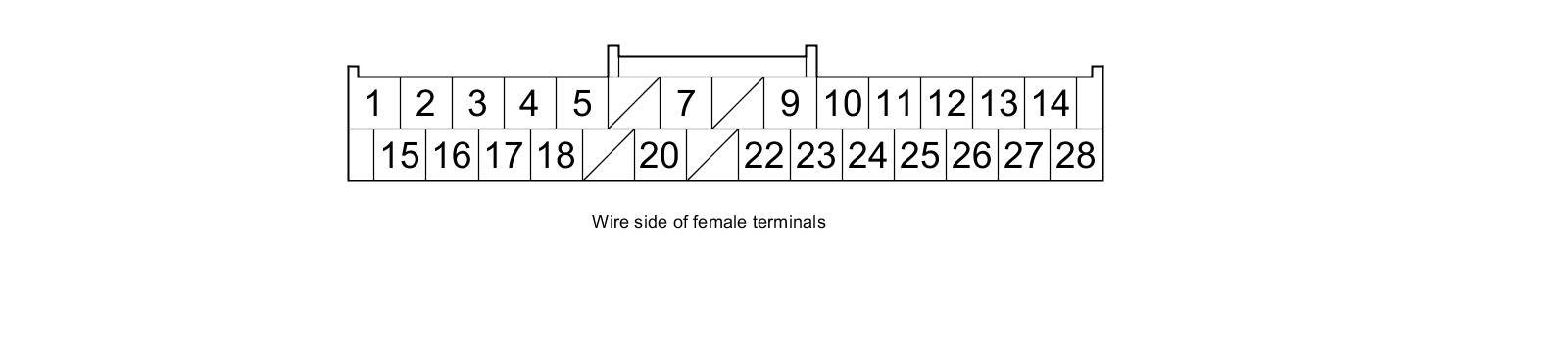

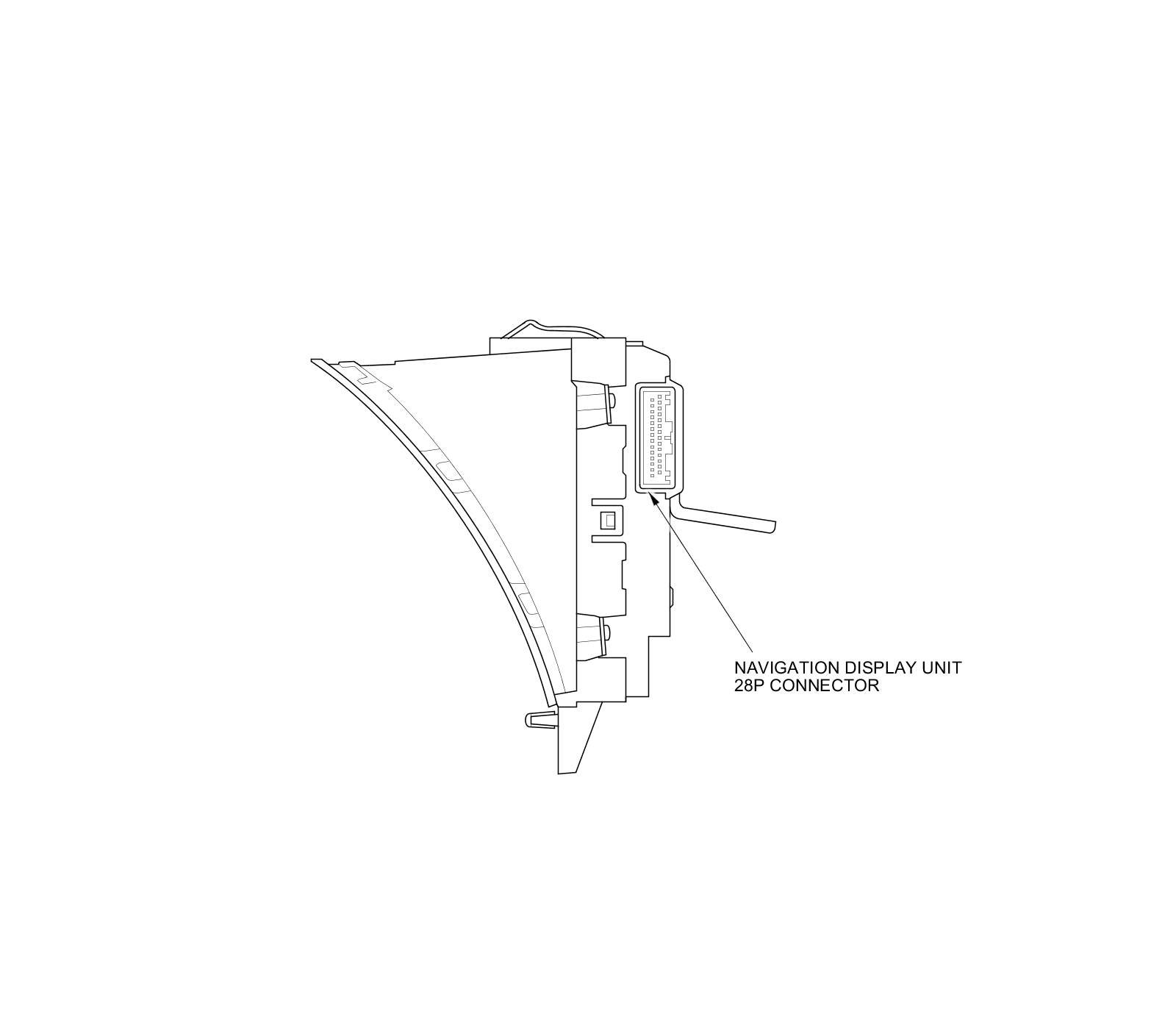

NAVIGATION DISPLAY UNIT 28P CONNECTOR

Navigation Display Unit 28P Connector

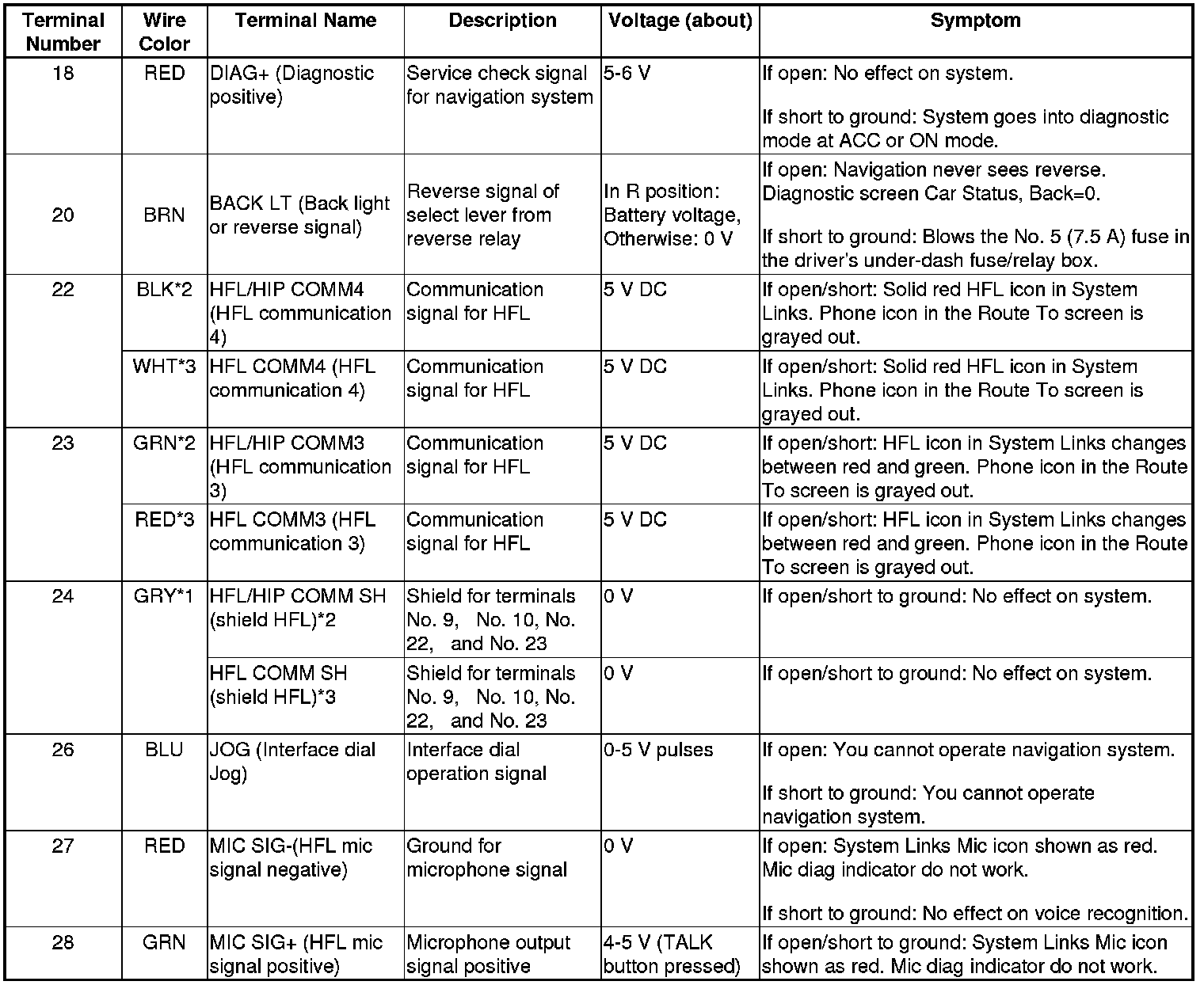

Navigation Display Unit 28P Connector

Interface Dial Connector for Inputs and Outputs

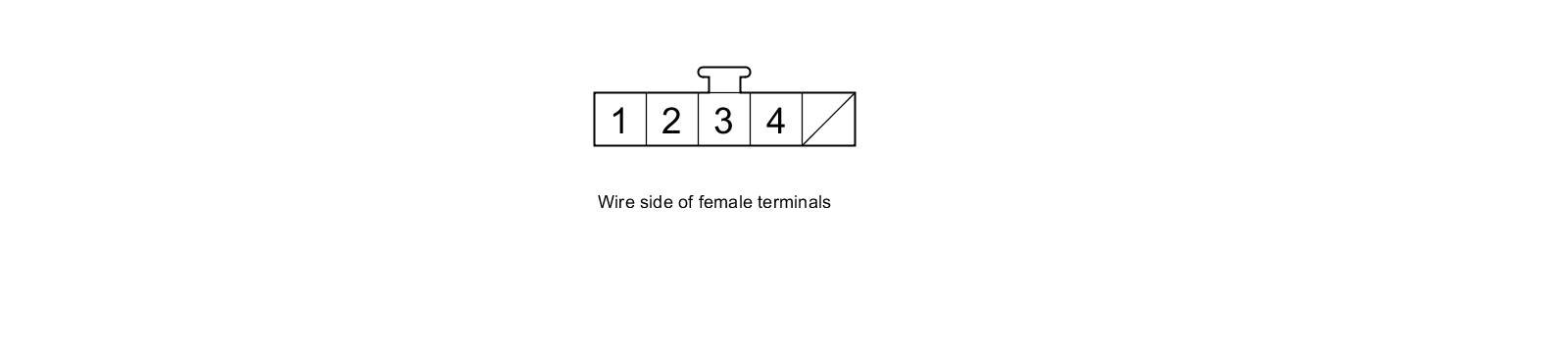

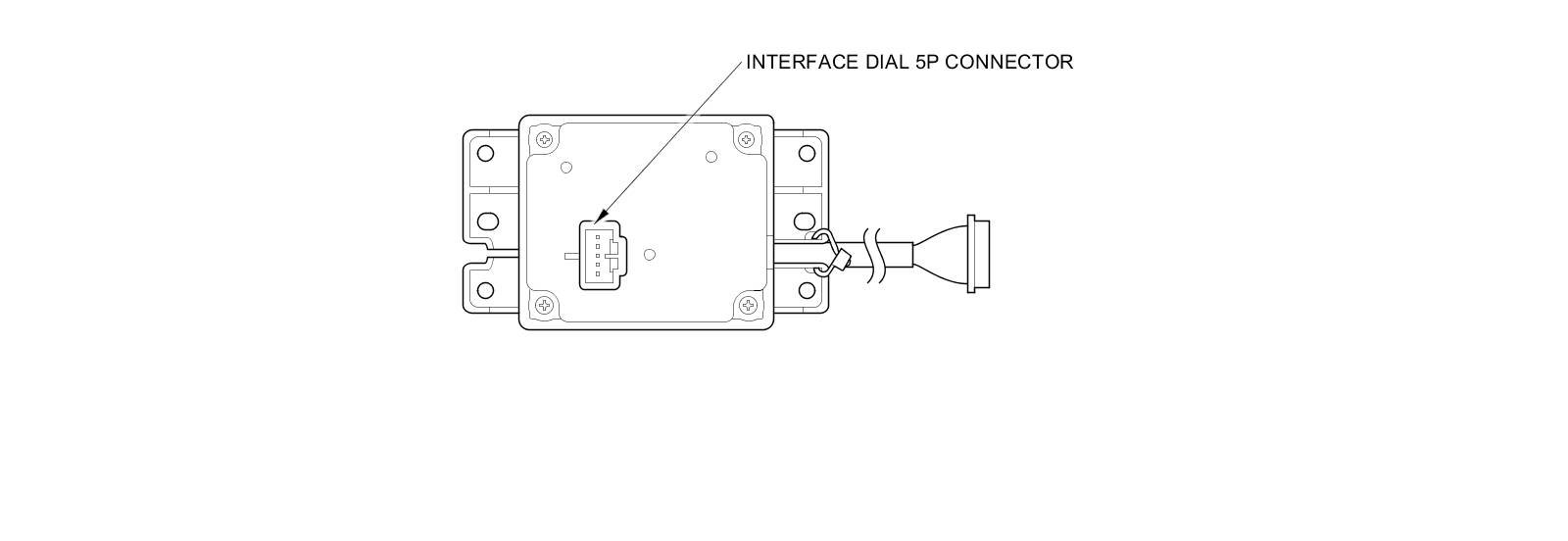

INTERFACE DIAL 5P CONNECTOR

Interface Dial 5P Connector

Front HFL-Navigation-ANC/Active Sound Control Microphone Connector for Inputs and Outputs

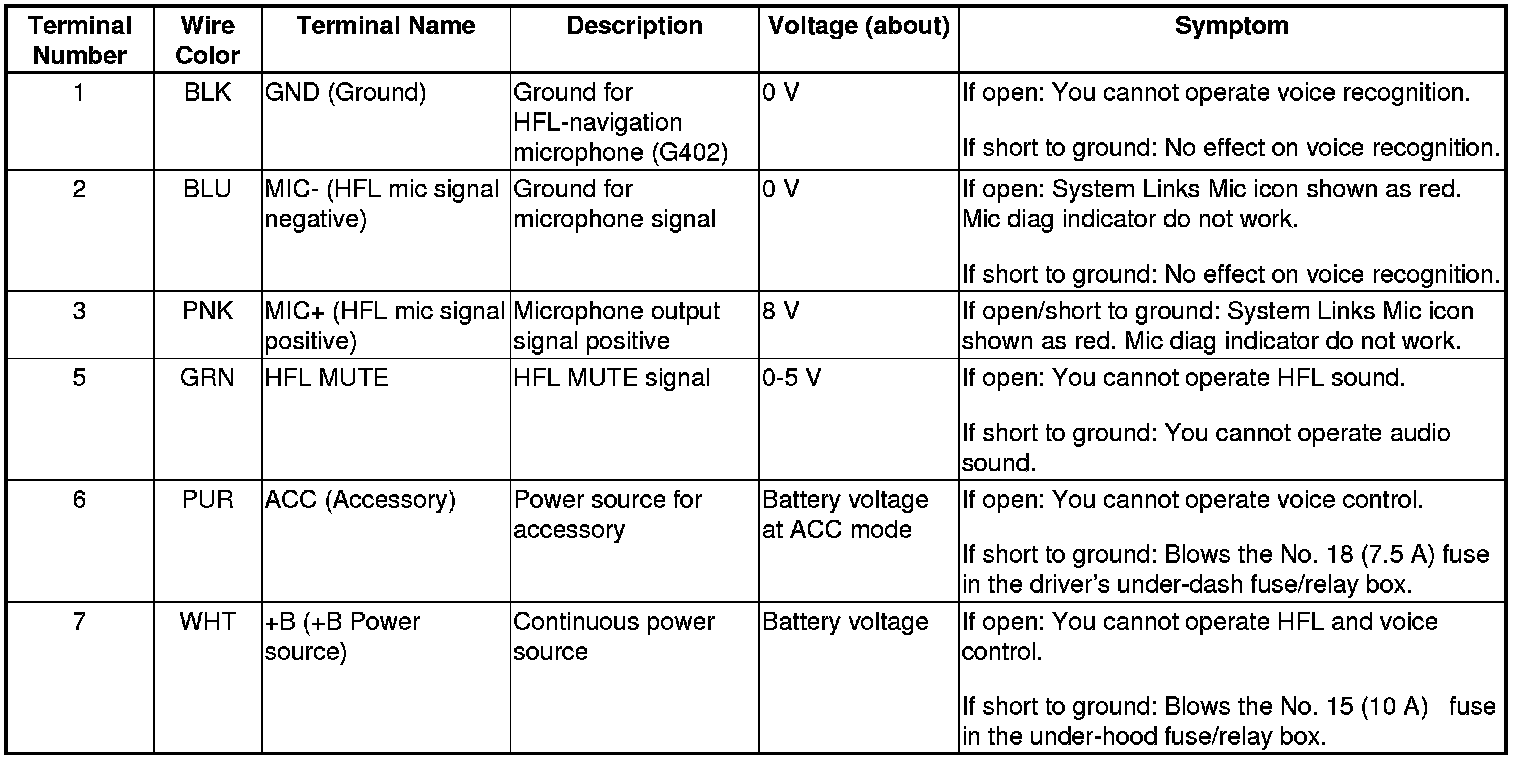

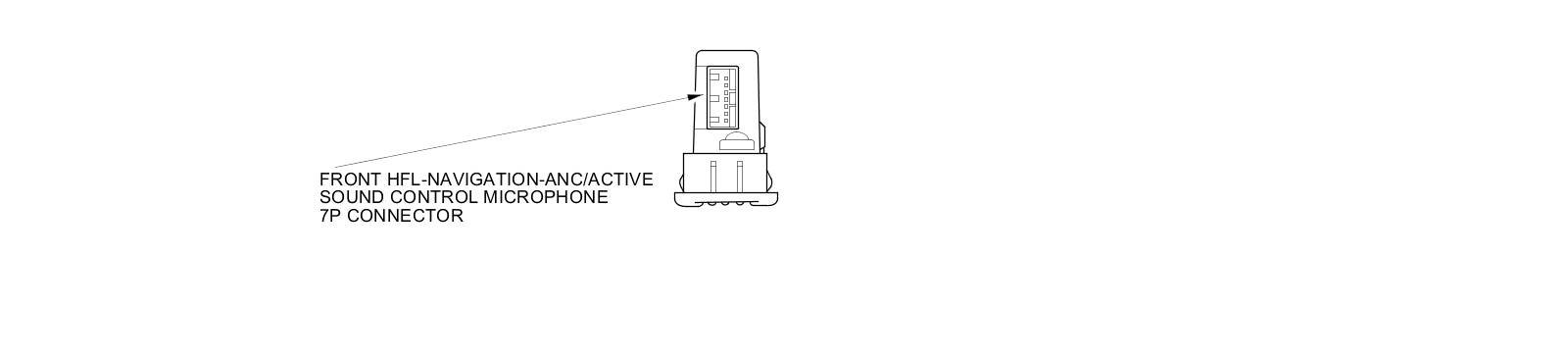

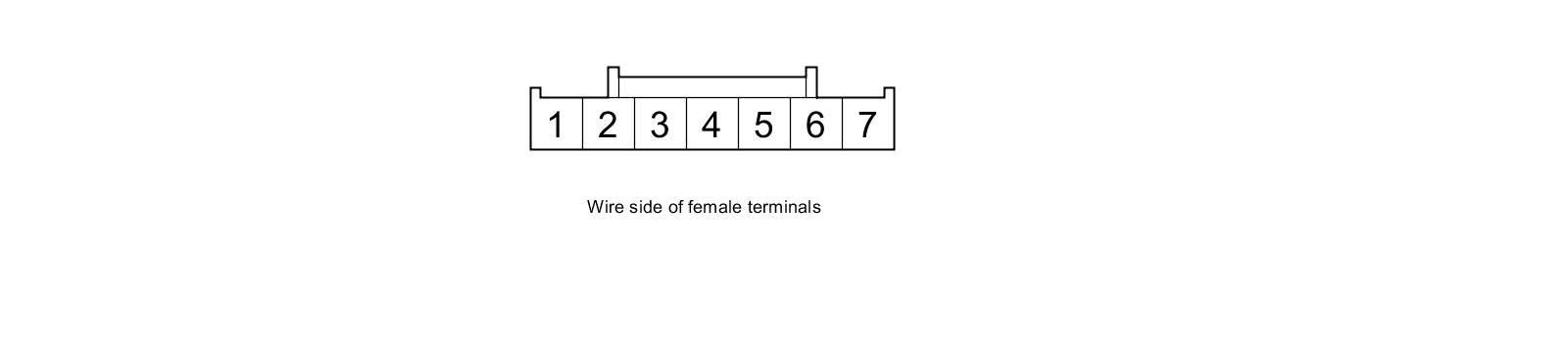

FRONT HFL-NAVIGATION-ANC/ACTIVE SOUND CONTROL MICROPHONE 7P CONNECTOR

NOTE: Refer to the audio system section for the terminals inputs and outputs not shown.

Front HFL-Navigation-ANC/Active Sound Control Microphone 7P Connector

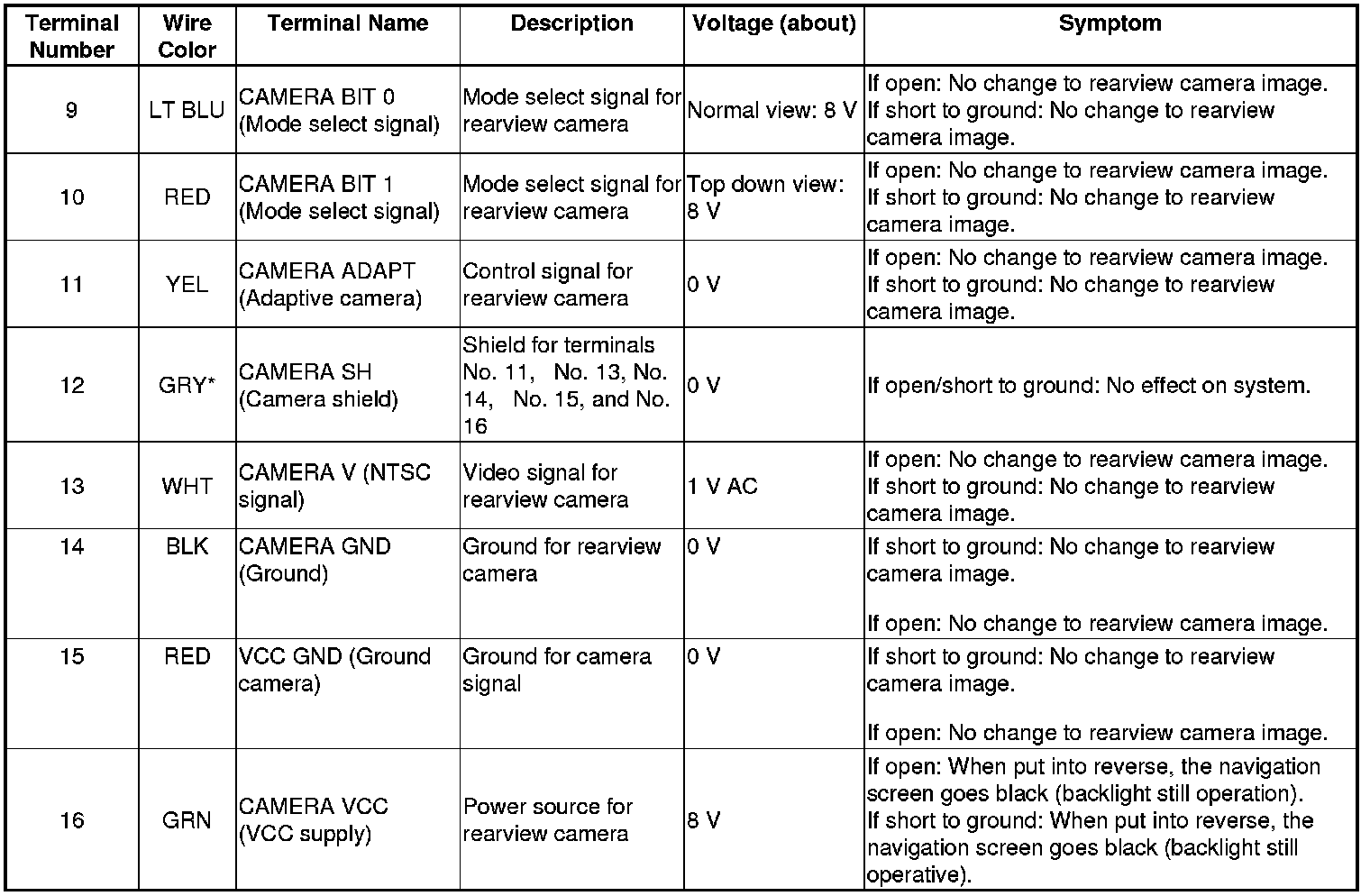

Rearview Camera Connector for Inputs and Outputs

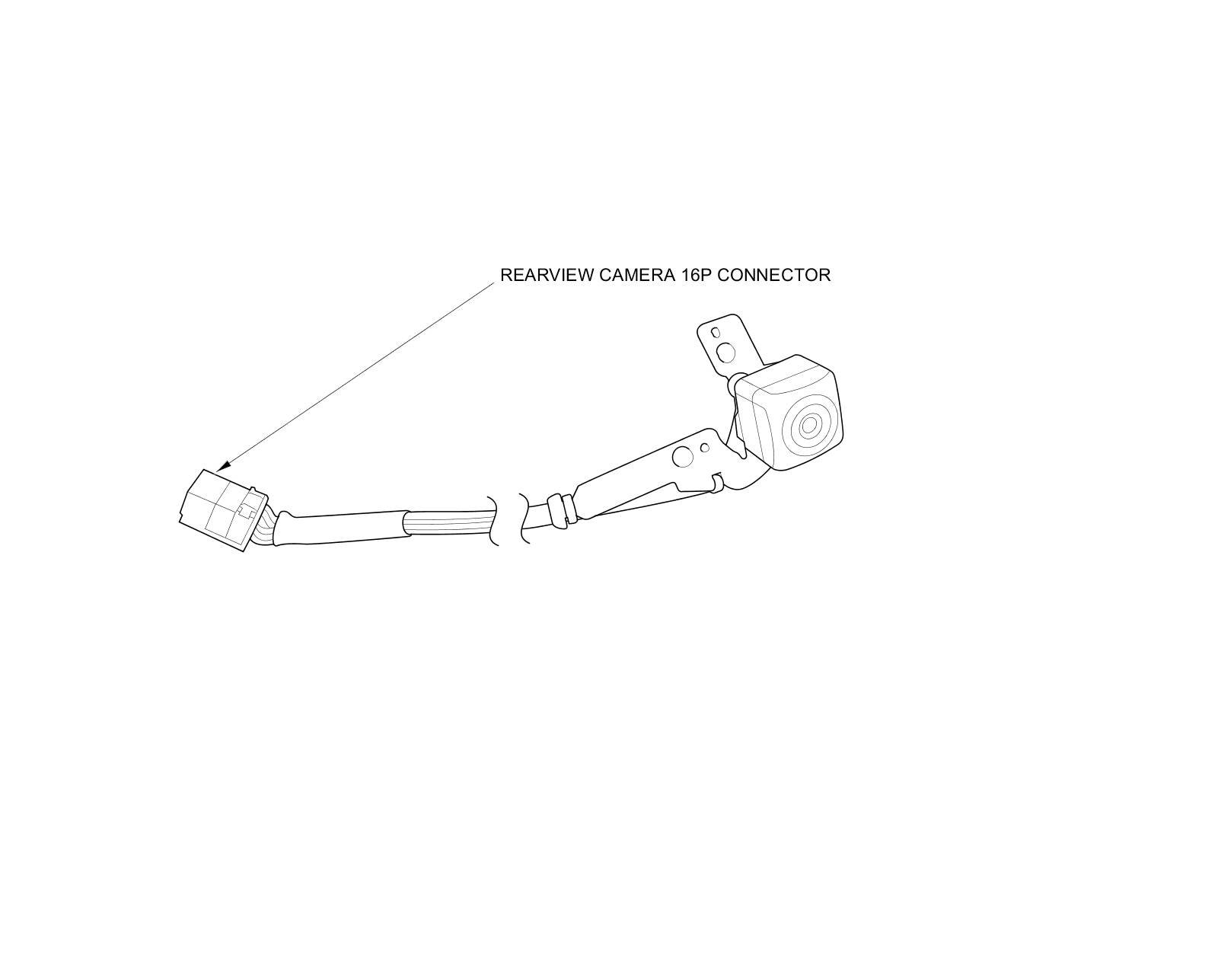

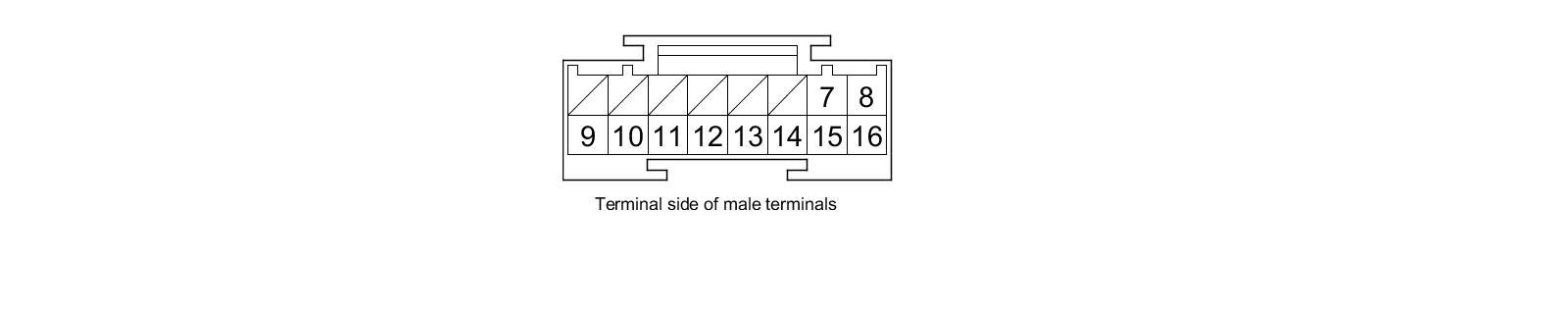

REARVIEW CAMERA 16P CONNECTOR

Rearview Camera 16P Connector
