Keyless Access LF Antenna (Rear Interior) Replacement
Keyless Access LF Antenna (Rear Interior) Replacement 1.
Remove the rear under floor cover
Interior Trim Removal / Installation - Cargo Area.
2.

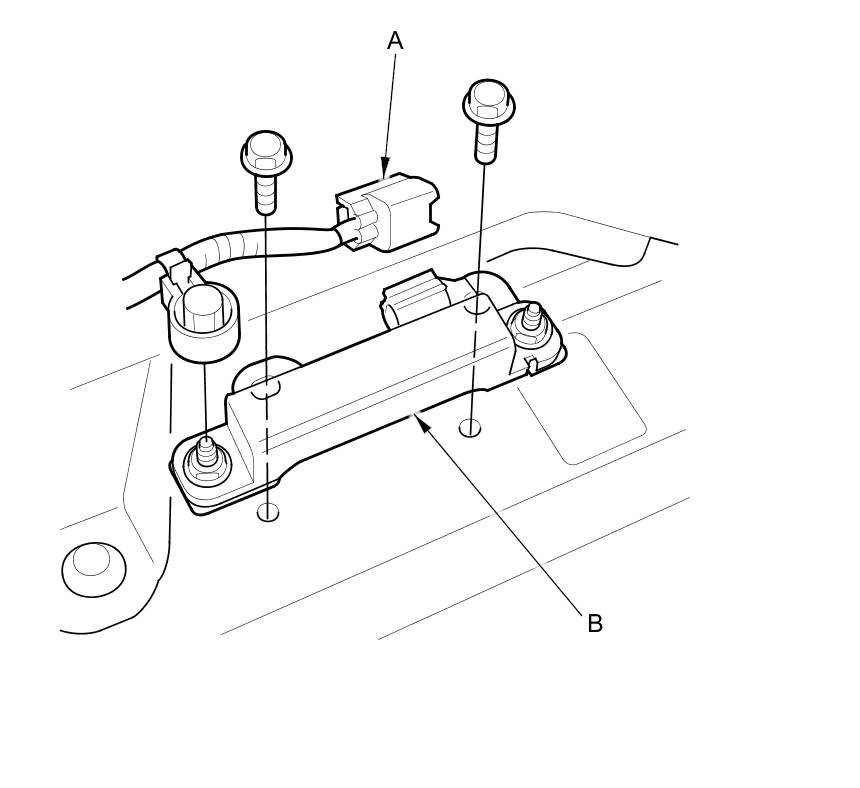

Disconnect the 2P connector (A) from the rear interior LF antenna (B).
3.
Remove the two bolts and the rear interior LF antenna with the bracket.
4.
Install the antenna in the reverse order of removal.
