Antenna, Radio

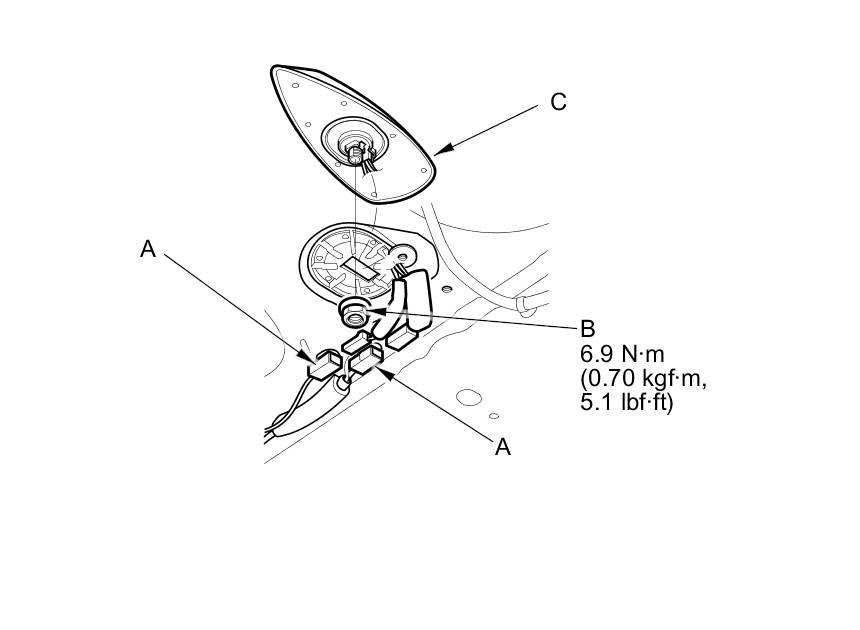

AM/FM/XM Antenna Replacement

1. Remove the headliner Service and Repair.

2. Disconnect the connectors (A).

3. Remove the nut (B) and the AM/FM/XM antenna (C).

4. Install the antenna in the reverse order of removal.
