Center Mounted Brake Lamp: Service and Repair
High Mount Brake Light Replacement 1.
Open the tailgate.
2.
Remove the tailgate lower garnish .
3.

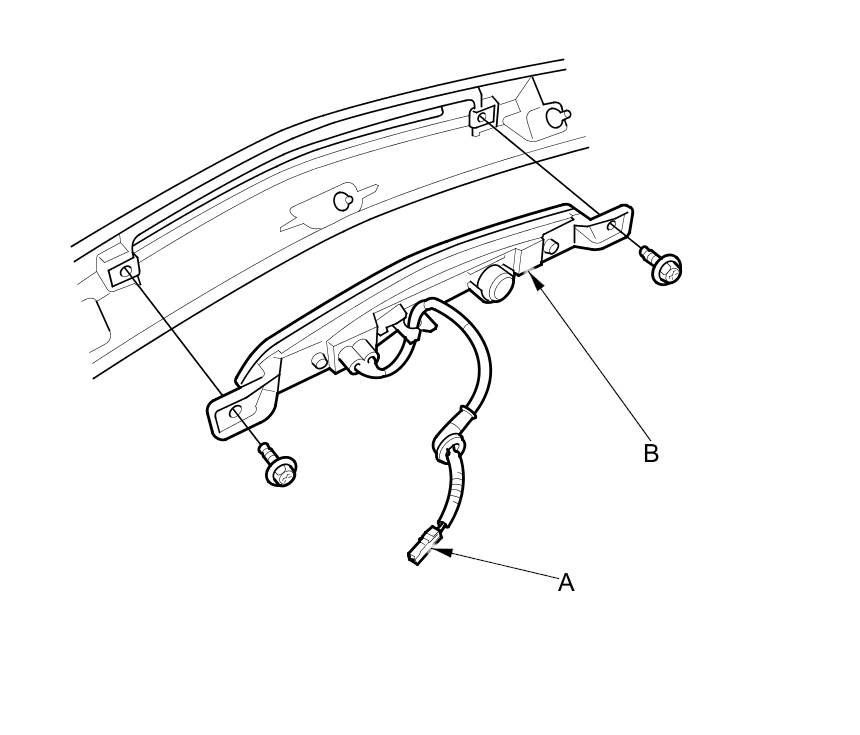

Disconnect the high mount brake light 2P connector (A).
High Mount Brake Light : LED 4.
Remove the two bolts and the high mount brake light (B).
5.
Install the light in the reverse order of removal.
6.
Clean the rear window.
