Positive Crankcase Ventilation: Service and Repair

PCV Valve Replacement

1. Remove the engine cover.

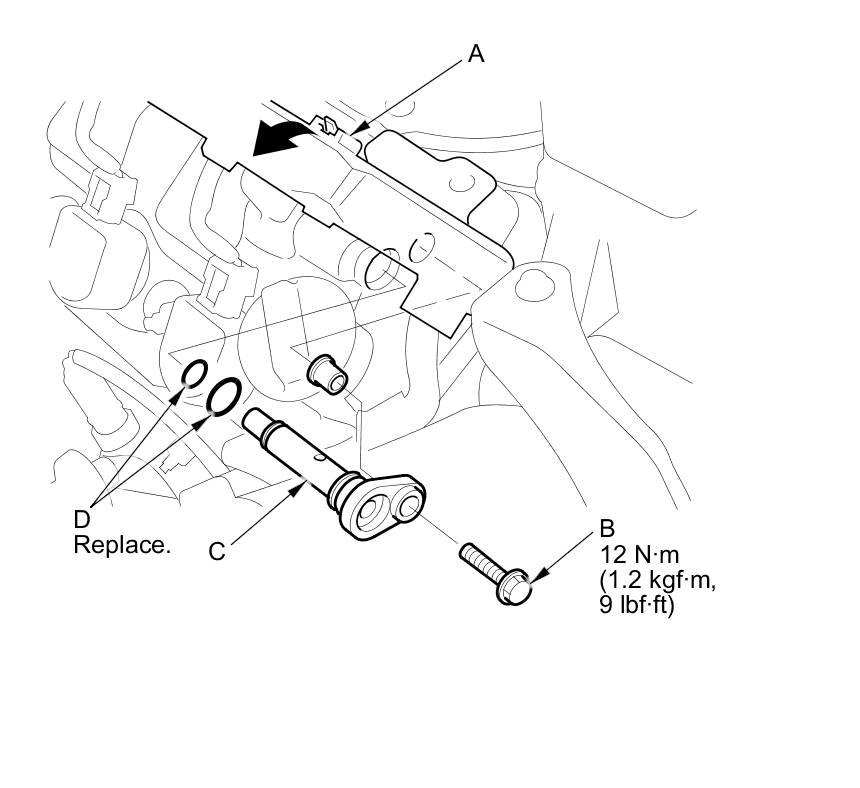

2. Lift up the engine harness holder (A).

3. Remove the bolt (B).

4. Remove the PCV valve (C).

NOTE: Take care not to spill oil on the hot exhaust manifold.

5. Install the parts in the reverse order of removal.

NOTE:

- When installing a new PCV valve, make sure the O-rings (D) are in place.
- When installing a used PCV valve, use new O-rings.
