A/T Housing Selector Control Shaft Bearing Replacement

A/T Housing Selector Control Shaft Bearing Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Bearing Remover Shaft Set, 15 mm 07936-KC10500
- Slide Hammer 07936-371020A
- Bearing Driver Attachment, 28 x 30 mm 07946-1870100

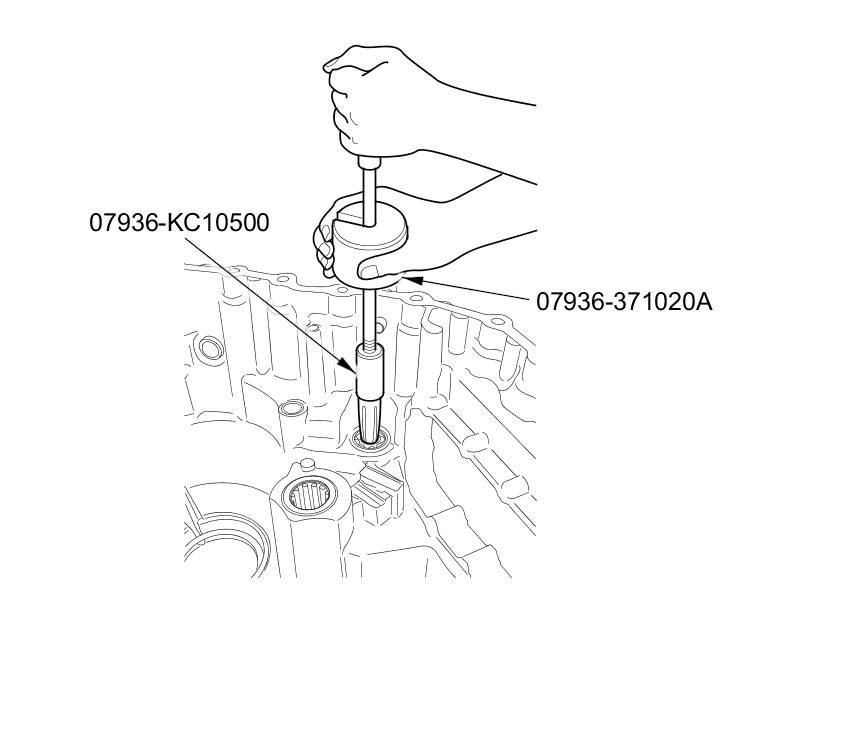

1. Remove the selector control shaft bearing from the transmission housing using the 15 mm bearing remover shaft and the slide hammer.

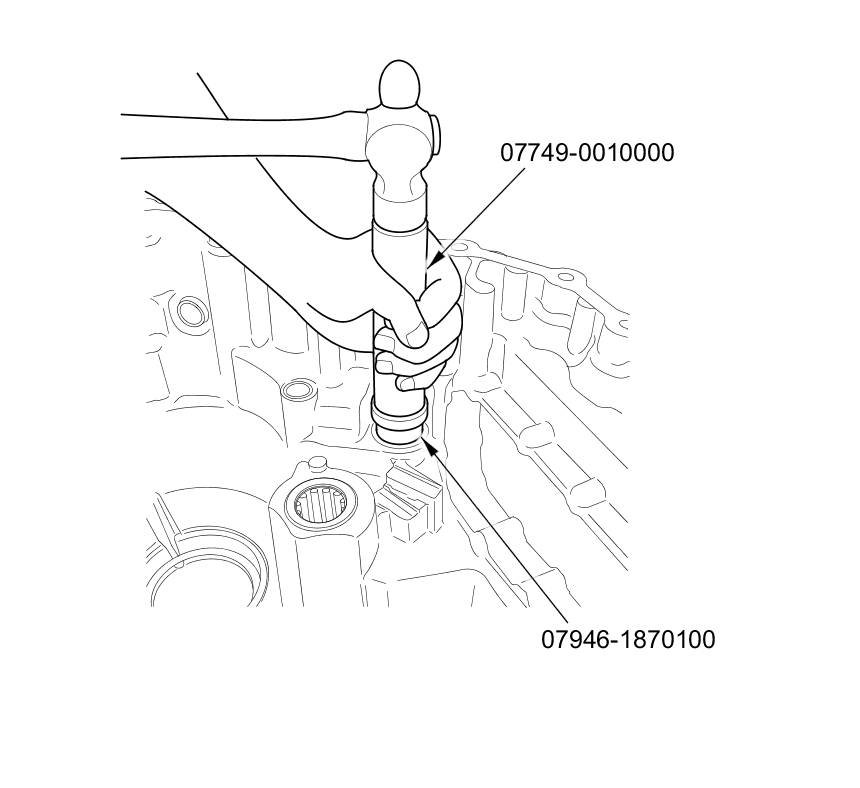

2. Install a new bearing until it bottoms in the transmission housing using the 15 x 135L driver handle and the 28 x 30 mm bearing driver attachment.
