Torque Converter Housing Selector Control Shaft Bearing Replacement

Torque Converter Housing Selector Control Shaft Bearing Replacement

Special Tools Required

- Bearing Driver Attachment, 32 x 35 mm 07746-0010100
- Driver Handle, 15 x 135L 07749-0010000
- Slide Hammer 07936-371020A
- Bearing Remover Shaft Set, 15 mm 07936-KC10500

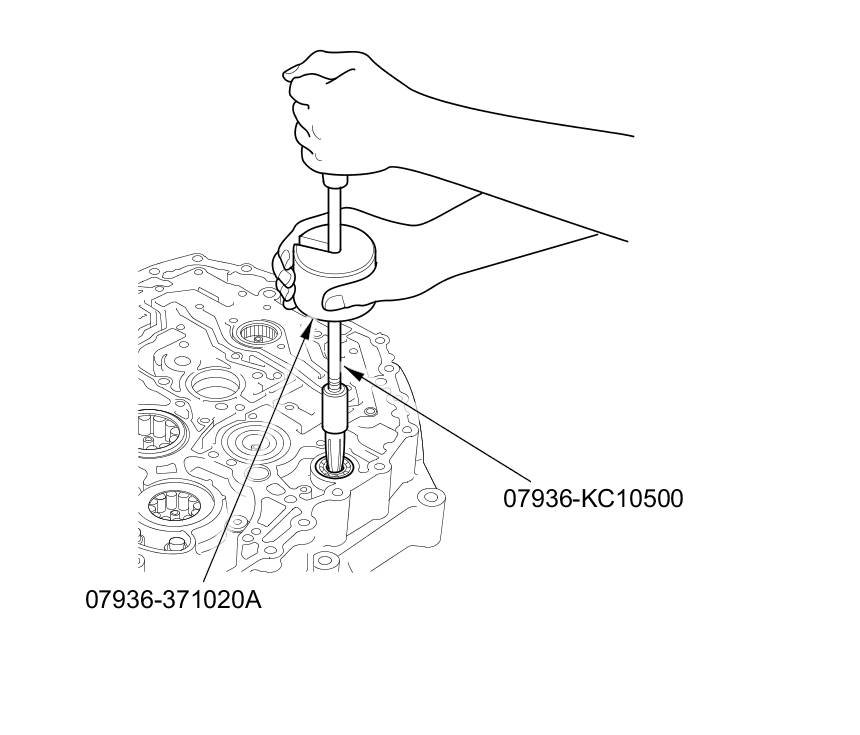

1. Remove the selector control shaft bearing from the torque converter housing using the 15 mm bearing remover shaft and the slide hammer.

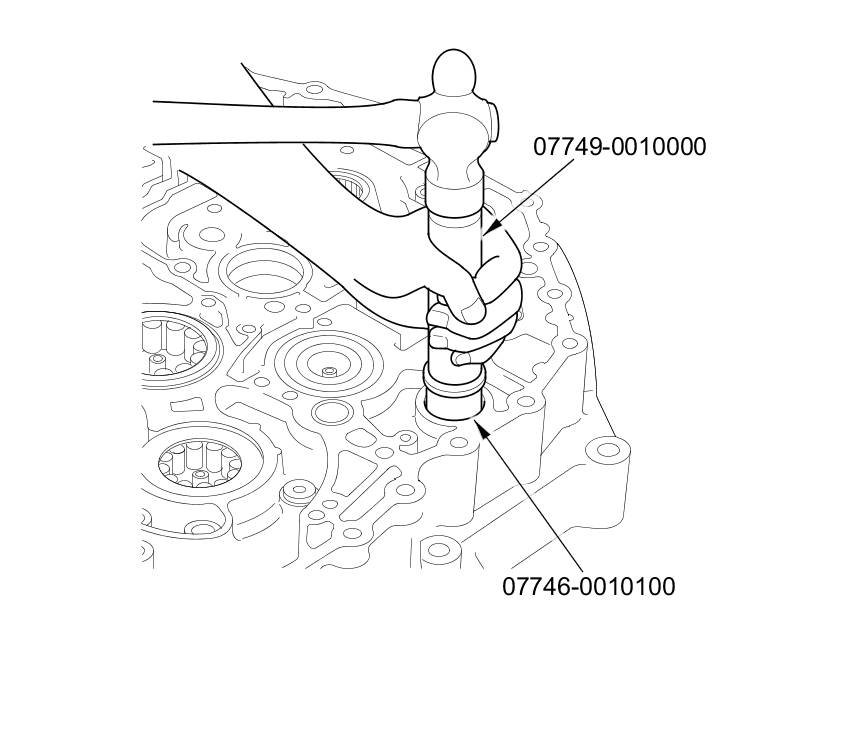

2. Install a new bearing until it bottoms out in the torque converter housing using the 15 x 135L driver handle and the 32 x 35 mm bearing driver attachment.
