A/T Shift Lever Boot Replacement
A/T Shift Lever Boot Replacement 1.
Remove the shift lever knob
A/T Shift Lever Knob Replacement.
2.
Remove the A/T shift panel.
3.

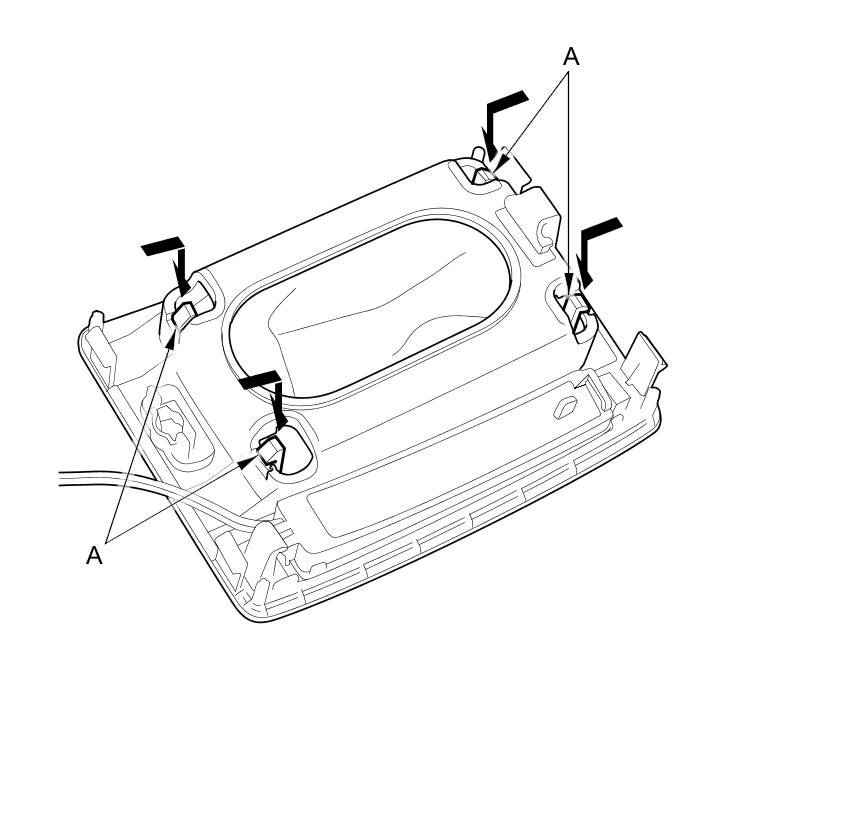

Release the lock tabs (A) on the shift lever boot using a screw driver.
4.

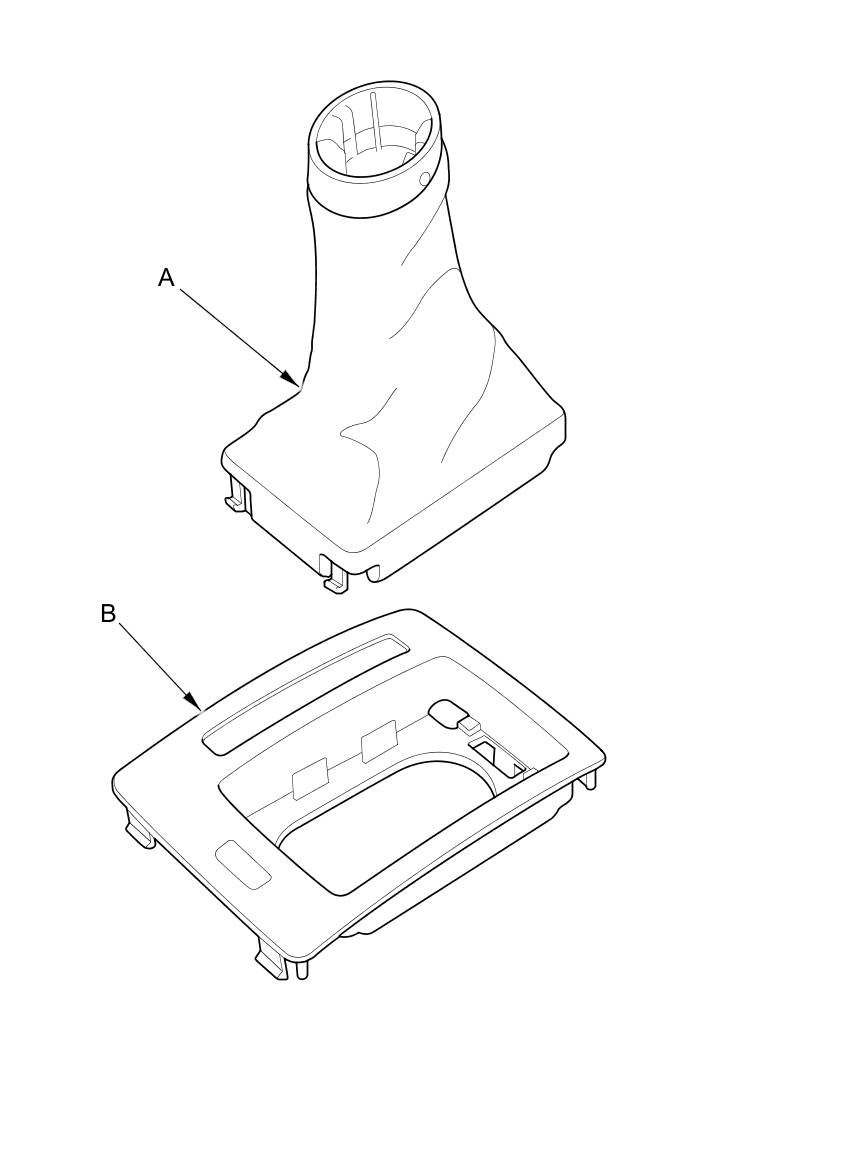

Replace the shift lever boot (A).
5.
Install the shift lever boot on the A/T shift panel (B).
6.
Install the A/T shift panel.
7.
Install the shift lever knob
A/T Shift Lever Knob Replacement.
