A/T Shift Panel Replacement




A/T Shift Panel Replacement

1. Remove the shift lever knob A/T Shift Lever Knob Replacement.

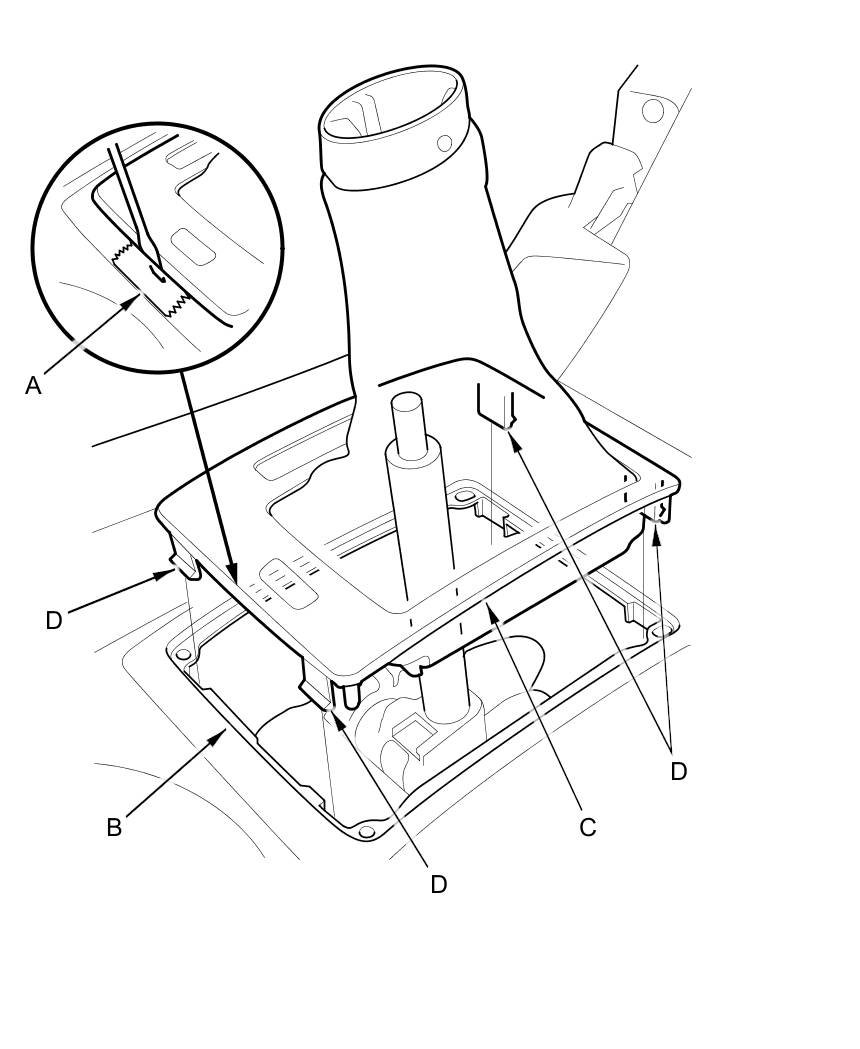

2. Apply protective tape (A) to the center console panel (B) along the side edge of the A/T shift panel (C). Pry up on the edge of the A/T shift panel with a flat-tipped screwdriver wrapped with protective tape to release the hooks (D). Then remove the A/T shift panel.

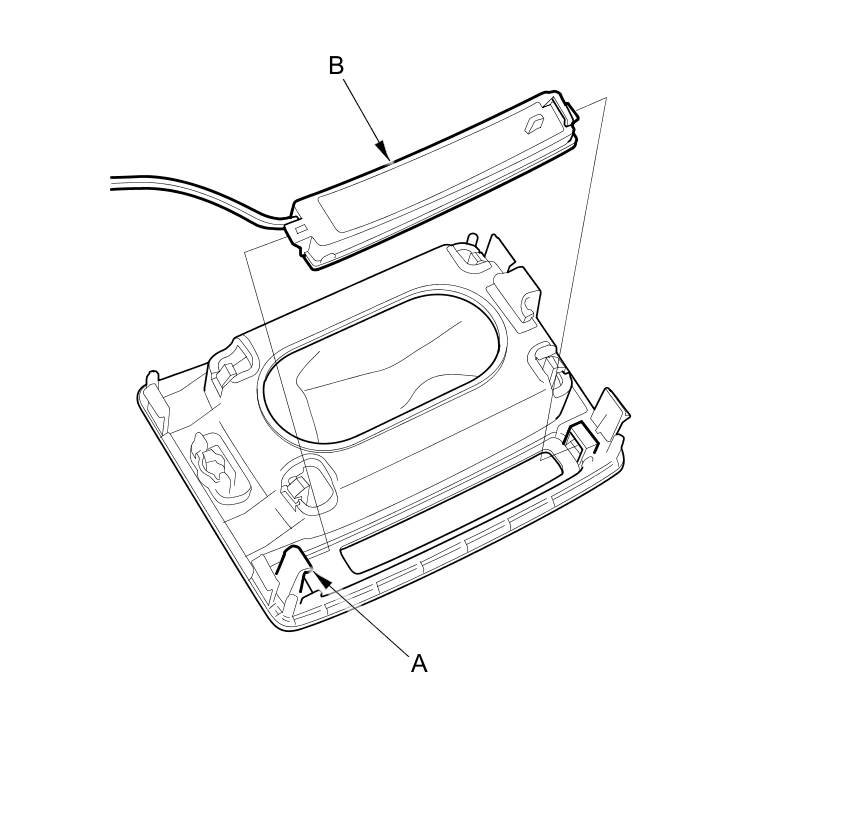

3. Release the lock tab (A) using a screwdriver, and remove the A/T gear position indicator (B).

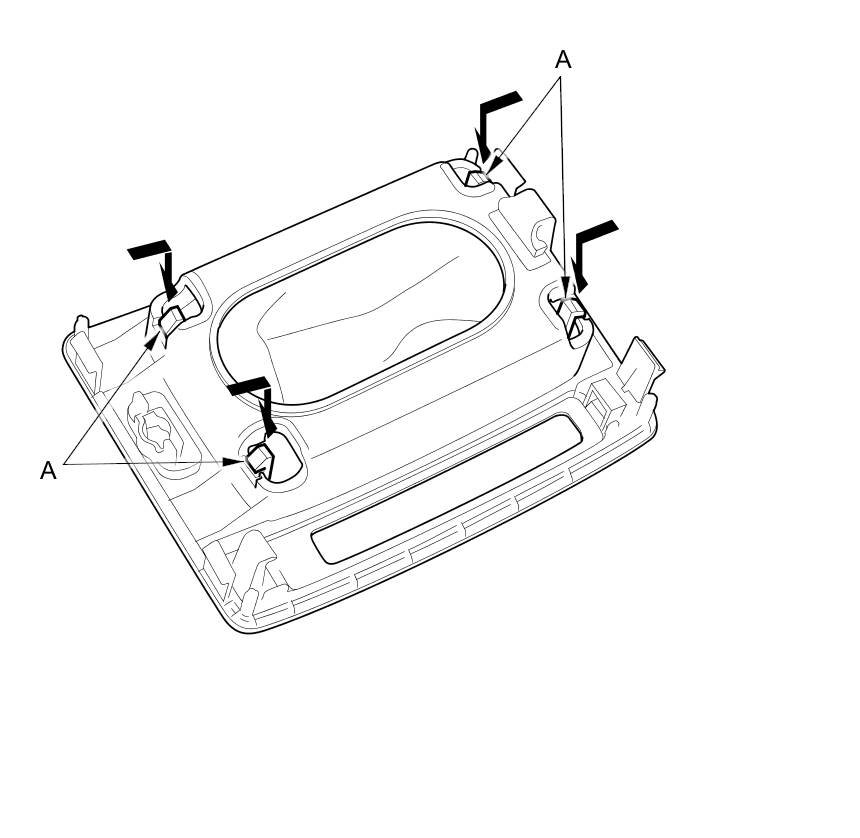

4. Release the lock tabs (A) on the shift lever boot using a screwdriver.






5. Replace the A/T shift panel (A).

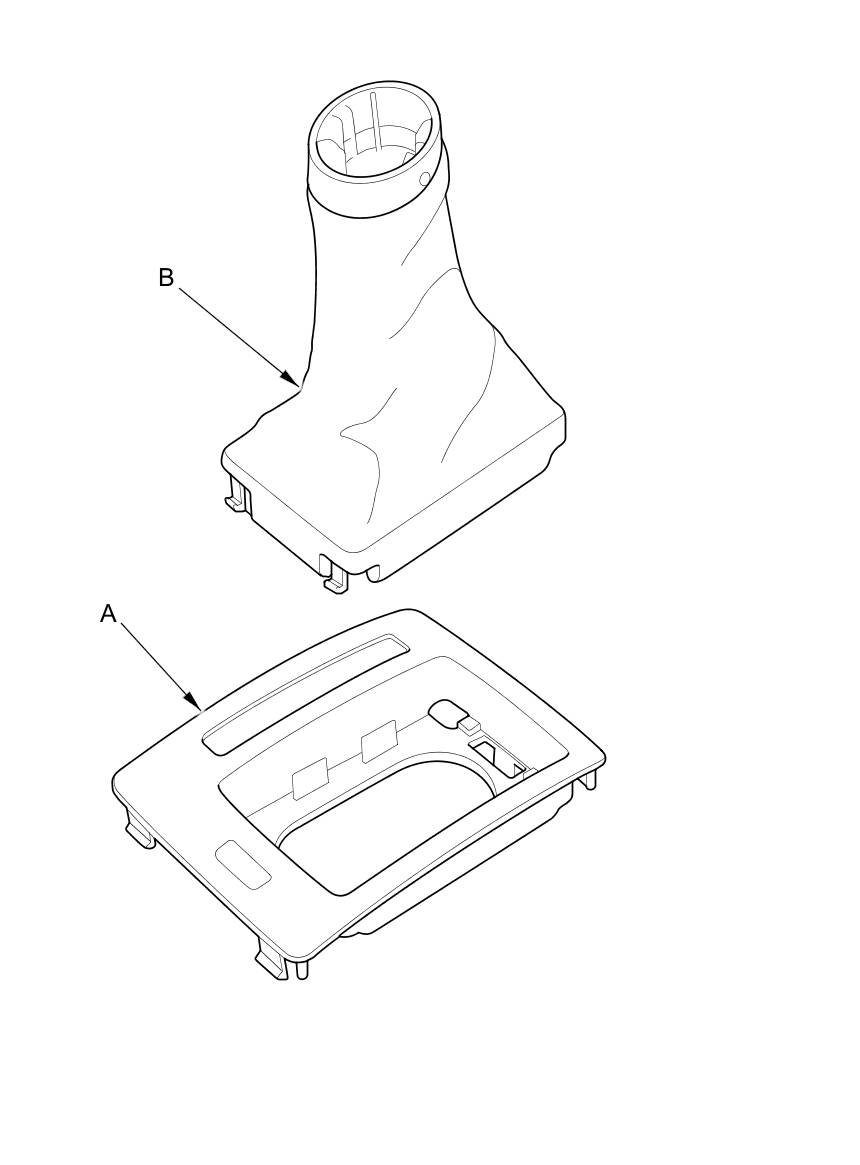

6. Install the shift lever boot (B) on the A/T shift panel.

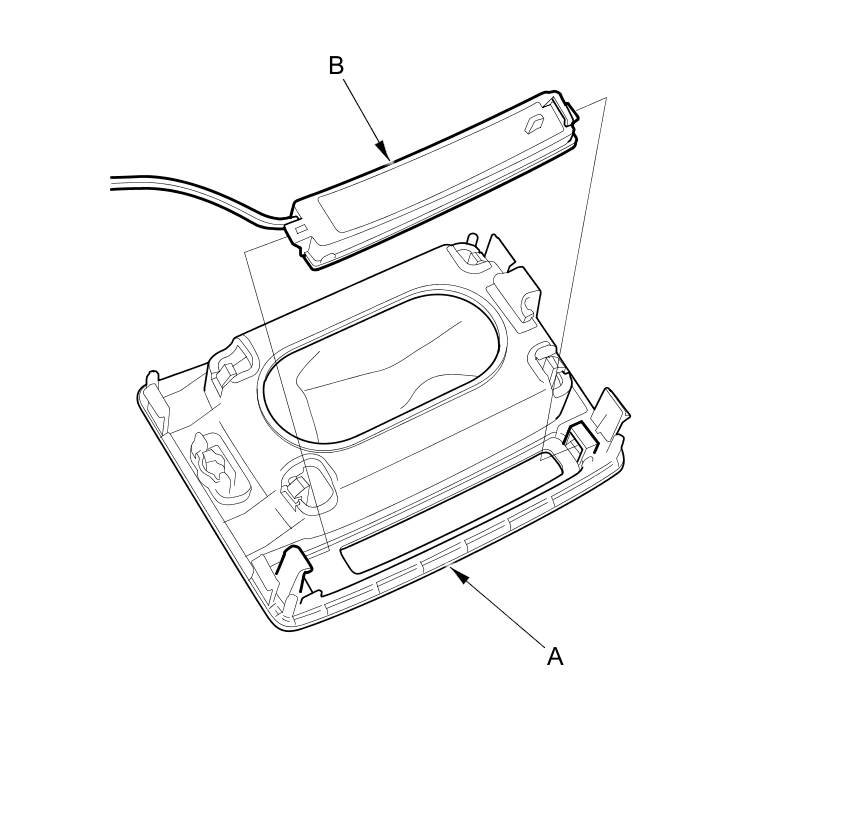

7. Route the harnesses on the A/T shift panel (A), and install the A/T gear position indicator (B) in the A/T shift panel.

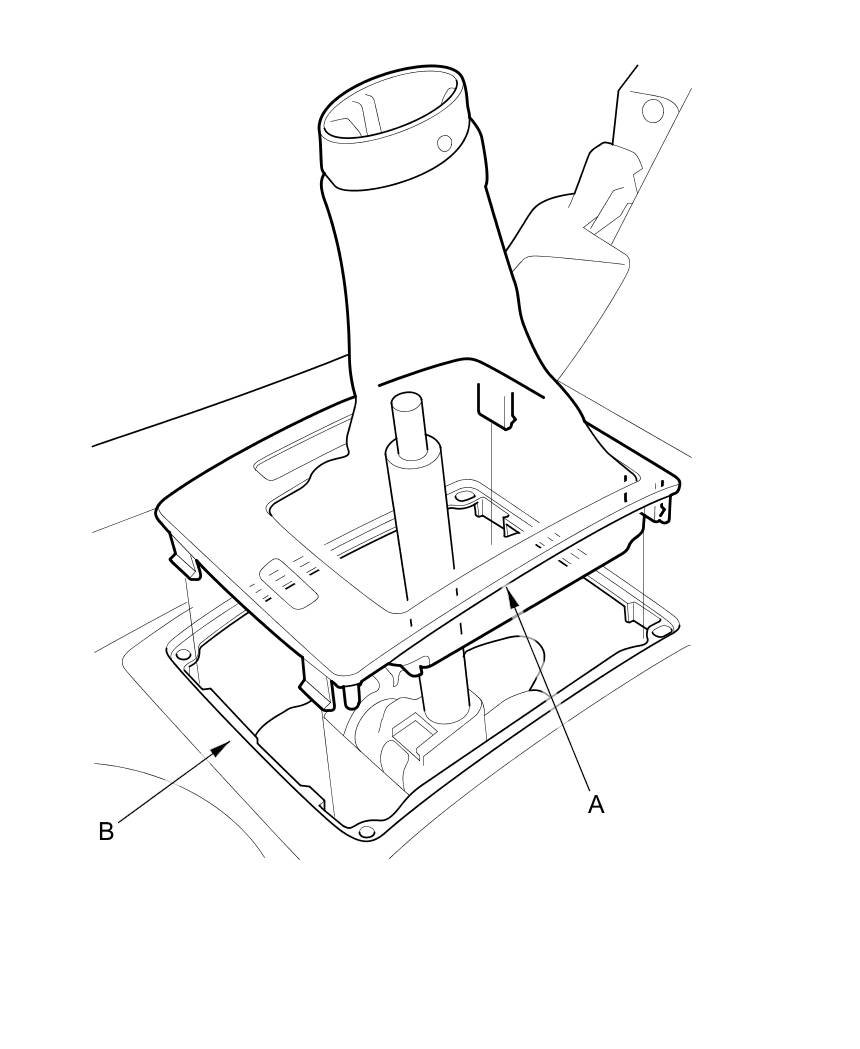

8. Install the A/T shift panel (A) on the center console panel (B).






9. Install the shift lever knob A/T Shift Lever Knob Replacement.
