Fuse Block: Locations

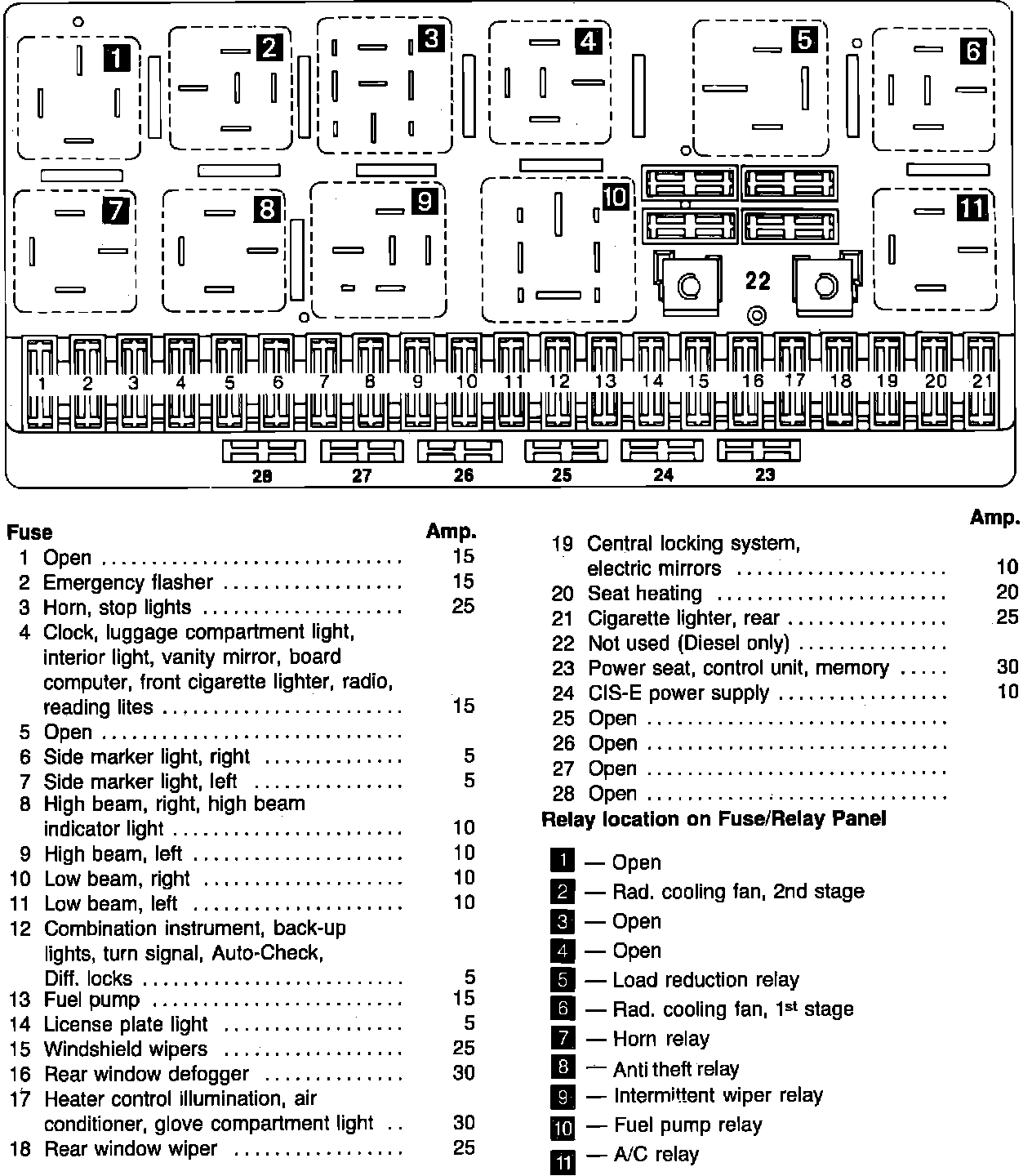

Main Fuse/Relay Panel:
The Main fuse/relay box is located on the rear driver's side of the engine compartment.

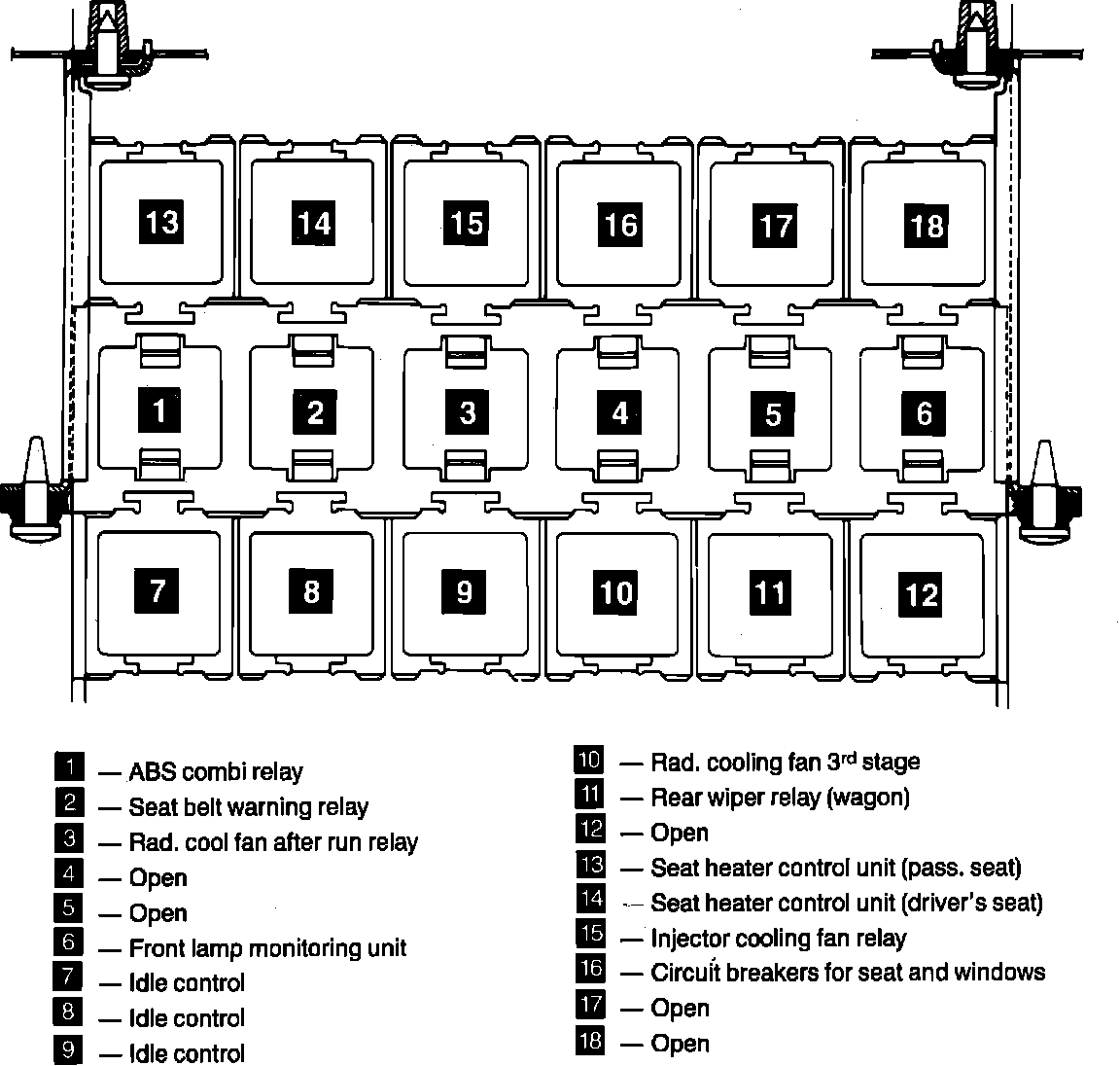

Auxiliary Relay Panel:
The auxiliary relay box is located under the dash on the left hand side.
Auxiliary Relay Panel:
The additional rely block is located under steering column.
