Coolant Temperature Signal, Checking


Coolant temperature sensor, checking

Test conditions
^ coolant temperature min. 20°C (68°F)

Work sequence

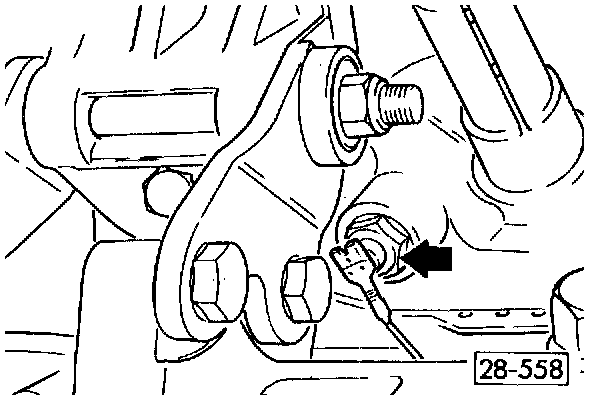

- Remove connector from coolant temperature sensor (arrow)
- Connect ohmmeter between coolant temperature sensor and ground cable
^ Specification: 60 ohm - 1 K ohm

If specification NOT OK
- Replace coolant temperature sensor

If specification OK
- Check sensor wiring
- Remove control unit cover located in passenger side footwell and unplug control unit connector

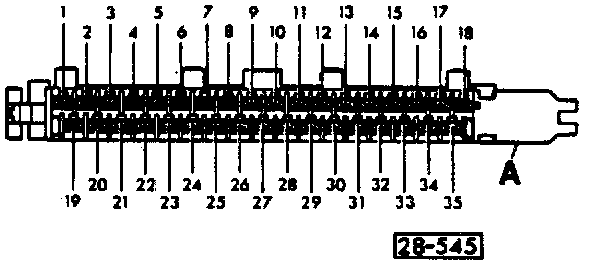

- Connect ohmmeter between contact 10 on control unit connector A and disconnected wire from coolant temperature sensor
^ Specification: approx. 0 ohm

If specification OK
- Check for open circuit in wiring

If circuit OK
- Replace control unit
