Engine Controls - Checking/Adjusting

87audi06

Applies To: 5000S 1985-1987


Subject: Engine Controls - Checking/Adjusting
Number: Group:

87-10
25
October 12, 1987


Idle Stabilizer Valve

Test Connector

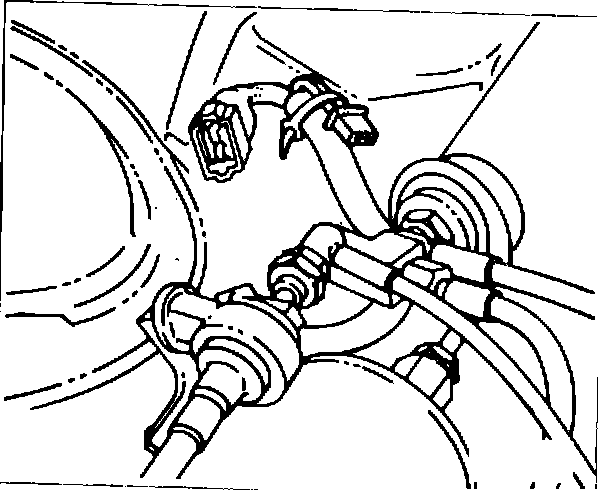

Fig. 1 - Loose Connector:




Fig. 2 - Fastened Connector:




The test connector (arrow Fig. 1) for checking idle stabilizer duty cycle should be fastened to the wiring harness as shown in Fig. 2.
If you find the connector loose or if you loosen it to perform tests, be sure to re-fasten it as shown. If the clip is broken or missing, replace it using part number:
811 971 850.

Caution

Part numbers are for reference only. Always consult your parts department for the latest information.
